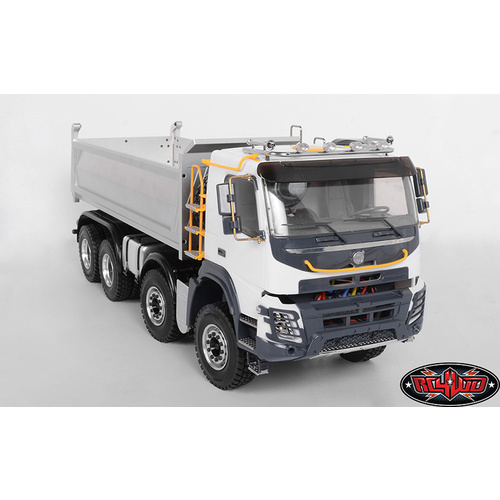

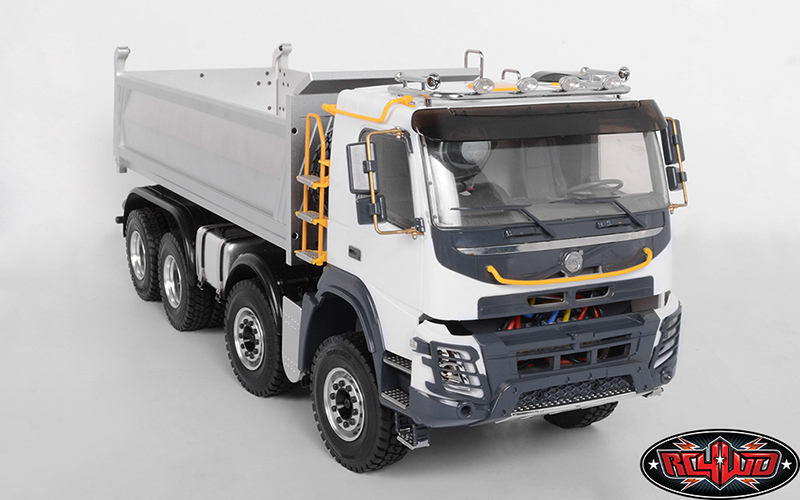

1/14 8x8 Armageddon Hydraulic Dump Truck (FMX)
This item is not in store. Ordered direct from supplier. Please call or email first and you will be contacted with stock availabilty or ETA.
The Armageddon is one of the most powerful R/C Hydraulic Dump Truck available today. It is highly detailed, based on European Style Dump Truck. Engineered specifically for the tough demands of transporting gravel, sand, asphalt, snow, wood chips or rocks. Created for the customer who requires reliability and high production in bulk earth moving or construction projects. CNC machined metal parts, fully assembled, ready to work! Be ready for the massive power through the 1000KV high speed output brushless system.

Important Note: Due to the size and weight of this product, this product has to be shipped in its own container.  It will be shipped only by Expedited Shipping Service (5-8 days), this requires an extra shipping surcharge included in price due to the size and weight.


https://rc4wd.com/images/logo/compass/Armageddon-E-01.jpg

Specifications:

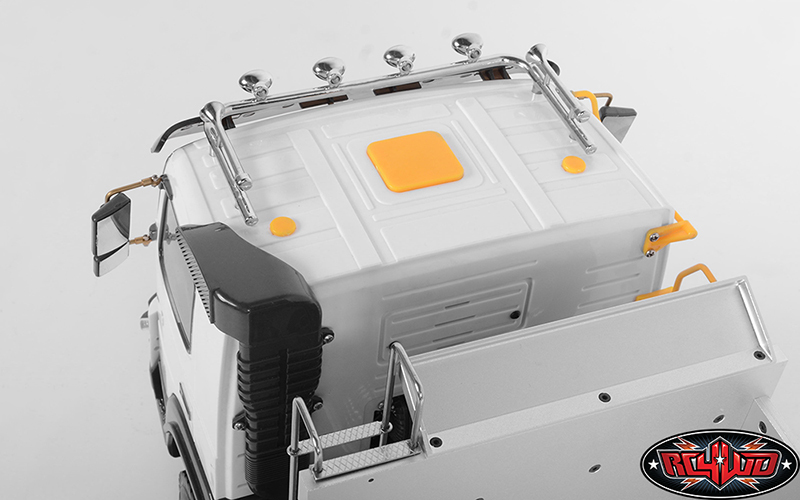

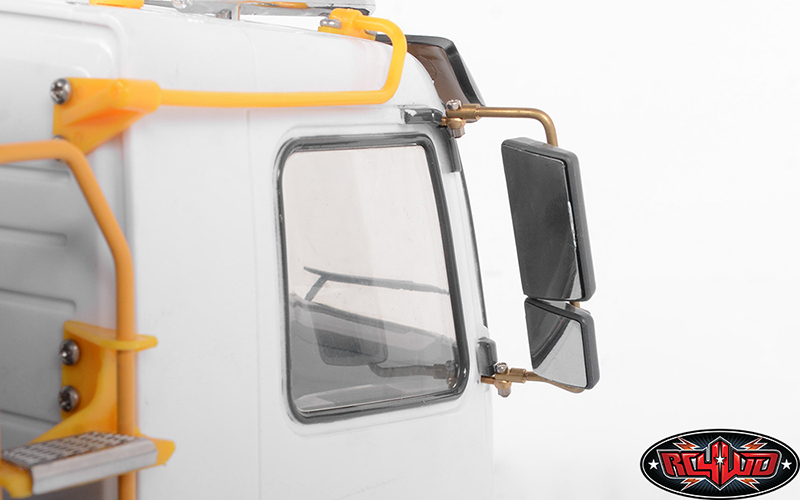

  • Hard Plastic European Style Front Cab
  • Full Metal 2 Speed Transmission (Planetary Gears)
  • Transfer Case (Billet Aluminum)
  • Scale Fuel Tank (Billet Aluminum)
  • Super Scaled Leaf Spring Suspension Setup

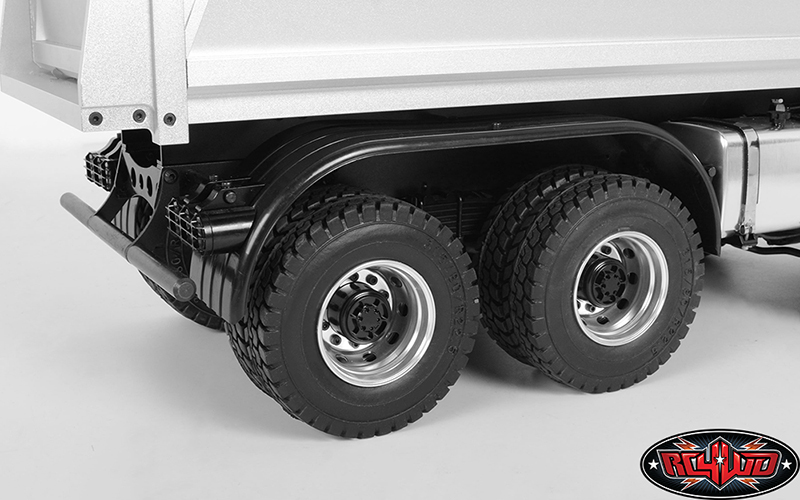

  • Scale Rims (Billet Aluminum)
  • Remote Lockable Rear Axle (Locking Differential)

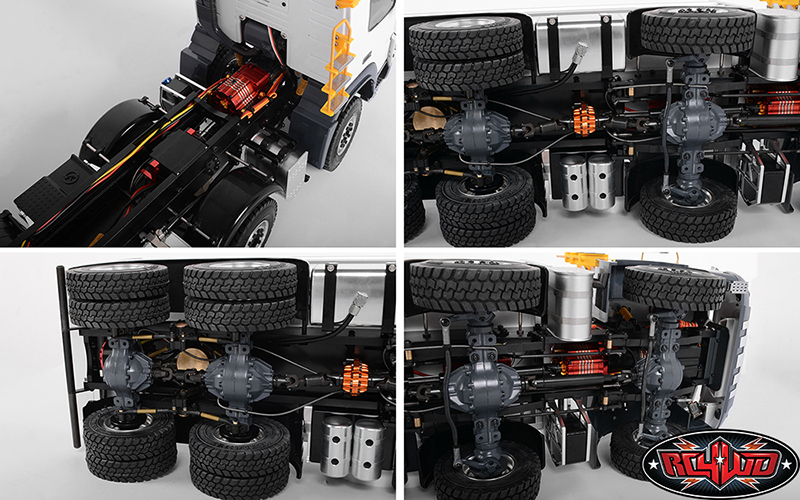

  • Full Metal Front and Rear Axle Housing
  • Steel Scale Drive Shaft
  • Realism Front Cab Latch
  • Retractable Steel Ladder
  • Molded Functional Fuel Tank (Filled with Hydraulic Oil)
  • Automatic Trailer Gate (Do Not Attempt to Open by Hand)
  • Rear Light Guard (Protects Against Rocks)
  • Scale Light Buckets (Fits 3-5mm LED)
  • Recommended Payload: 15kg / 33lbs
  • Maximum Lift Power: 42kg / 92lbs
  • Fully Painted
  • Scale Wheel/Tire
  • Cylinder Maximum Thrust: 109kg / 231lbs
  • Brushed Driven Motor

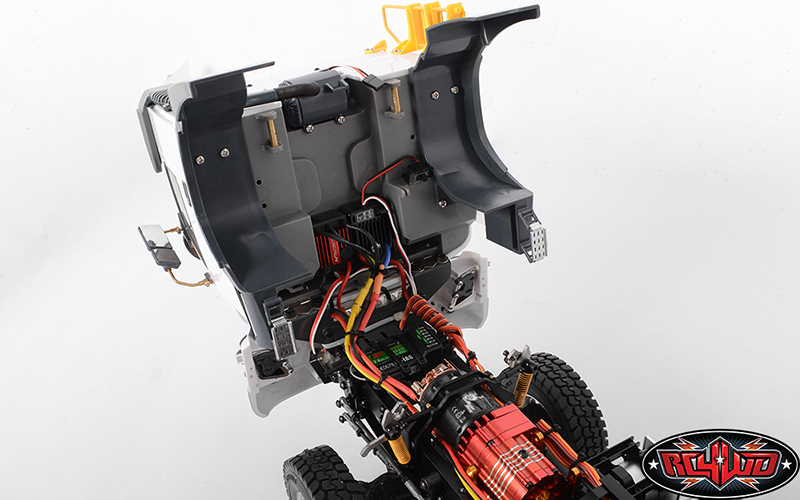

  • 1000KV Brushless Motor-Driven Micro Hydraulic Pump
  • Length: 690mm / 27.1 inch
  • Width: 186mm / 7.3 inch
  • Height: 262mm / 10.3 inch
  • Weight: 8.9kg / 19.6 lbs
  • Axle Gear Ratio: 2.6 : 1
  • Transfer Case Gear Ratio: 1 : 1
  • Theoretical Load: 15kg / 33 lbs
  • Load Total Mass: 24.5kg / 54 lbs
  • First Gear 1:64, Second Gear 1:16 (Transmission)
  • Basic 6 Channel 2.4Ghz Radio
  • This Product Is Professionally Pre-assembled
  • Manufactured by JDCustoms
  • 30 Days Limited Warranty











What's Included:

  • 1x 1/14 8x8 Armageddon Hydraulic Dump Truck (FMX)


Replacement Parts:

  • Mini Hydraulic Oil Pump with Brushless 40A Motor/ESC (VVV-S0090)
  • Petrol Fuel Tank for 1/14 Earth Mover (VVV-S0043)
  • Multipole Hydraulic Cylinder for Dump Truck (VVV-S0081)
  • King of the Road 1.7" 1/14 Semi Truck Tires (VVV-S0061)
  • Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
  • Hydraulic Connector M5 x 4mm Tube (90deg) (VVV-S0069)
  • Hydraulic M5 to M4 Straight Nozzle (VVV-S0075)
  • 1/14 Tank w/Pump, Motor, and ESC Set for Hydraulic Control (VVV-S0159)
  • Armageddon Complete Painted Cab (FMX) (VVV-S0178)


Required Parts:

  • Lipo Charger (Z-E0047)
  • Earth Digger/Earth Mover Lipo 3S Battery (6500mAh, 11.1v, 25c) (Z-E0038)
  • 8x AA Batteries for Radio (Z-S1718)


Optional Parts:

  • 8x8 Semi Truck Ornamental Wheels Rings (VVV-S0071)
  • Twister Ultimate High Performance Waterproof Servo (Z-E0063)
  • Twister High Torque Metal Gear Digital Servo (Z-E0035)
  • Country Road 1.7" 1/14 Semi Truck Tires (VVV-S0078)
  • Hauler Super Wide 1.7" Commercial 1/14 Semi Truck Tires (Z-T0071)
  • Ice Trucking Commercial 1/14 Semi Truck Tires (VVV-S0060)
  • Long Haul 1.7" Commercial 1/14 Semi Truck Tires (Z-T0026)
  • LoRider 1.7" Commercial 1/14 Semi Truck Tires (Z-T0066)
  • Retread 1.7" Commercial 1/14 Semi Truck Tires (Z-T0033)
  • Road Trucker 1.7" 1/14 Semi Truck Tires (VVV-S0062)
  • Roady 1.7" Commercial 1/14 Semi Truck Tires (Z-T0032)
  • Roady Super Wide 1.7" Commercial 1/14 Semi Truck Tires (Z-T0072)
  • Truck Town 1/14 Semi Truck Tires (VVV-S0068)
  • Boulder Semi Truck Rear Wheels with Cone Hub (Black) (2) (VVV-S0106)
  • 1/14 Faux Fuel/Air Tank Assembly (VVV-S0175)
  • Armageddon Complete Cab (FMX) (VVV-S0177)
  • Semi Rear Dump Truck 1.7" Beadlock Wheels (VVV-S0184)
  • 1/14 Transverse Stretching Rear Suspension System for Euro Style Trucks V2 (VVV-S0196)
  • Exhaust Metal Volvo Emblem for Euro Style Trucks / Armageddon Cab (VVV-S0187)
  • Metal Cab Emblem Set for Tamiya 1/14 Volvo (VVV-S0193)
  • Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)


Notes:

  • Must turn on the transmitter before starting the ESC.
  • ESC Supports XT60 Connector
  • The ESC does not have lipo cut off.
  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardwares are tight. In some cases you may want to apply threadlock to some of the hardwares that were already installed.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require threadlock.
  • Use threadlock sparingly.
  • Do not over tighten screws, otherwise, you may strip the thread.
  • When you raise the rear dump, do not leave it at the highest position. It will create a lot of pressure and potentially blow up the oil tube. Stay no more than 2 seconds and drop the dump to a lower position.
  • Do not use hand to pull the rear door. You will break the door locking mechanism.
  • Do not use more than 3S battery. (11.1 volt(s))
  • Once the hydraulic cylinder (dump) reaches its maximum height, do not push further.
  • If you want to remove the fire extinguisher, just turn it 90 degrees, then pull it out.
  • This product is for experienced R/C users. Not recommended if you just started with R/C.
  • The axle hubs can be screwed off  but may require nylon tipped pliers if they are on really tight.
  • Speaker included, but sounds unit sold separate. (VVV-S0074)
