Instruction:

●Use for T-REX 700X/760X/800E.

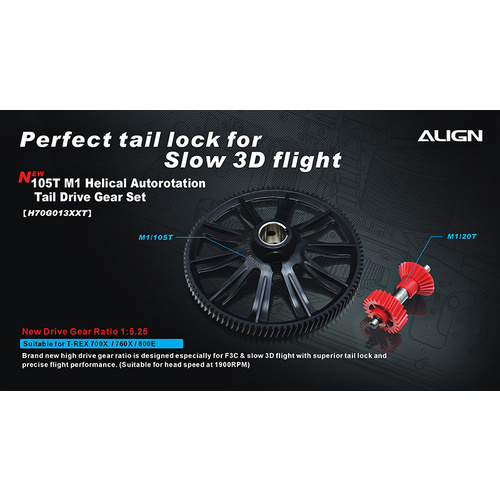

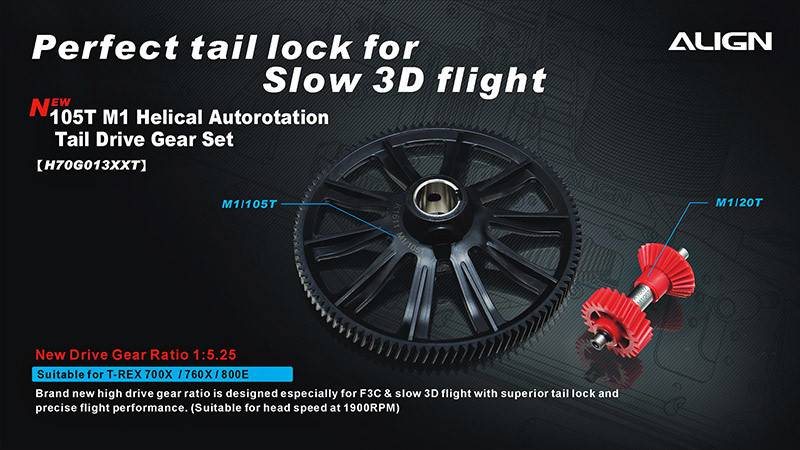

●Brand new high drive gear ratio is designed especially for F3C & slow 3D flight with superior tail lock and precise flight performance. (Suitable for head speed at 1900RPM)
●To make sure to get the best effect, it must be used with whole set.
●Gear Ratio 1:5.25

Specification:

●105T M1 Autorotation tail drive gear set x 1
●20T M1 Front drive gear assembly set x 1

T-REX 700 Tail Drive Gear Ratio With Main Rotor Speed Table:

Main Blades Tail Blade RPM approx. Tail Drive Gear Front Drive Gear Drive Gear Ratio
700 106 2150 ~ 2200 RPM 102T 23T 8.46/1/4.43
700 106 2000 ~ 2150 RPM 104T 22T 8.46/1/4.73
700 106 < 1900 RPM 105T 20T 8.46/1/5.25
For your safety, please pay attention to the above 2200 RPM, incorrect excess 2200 RPM may result in damage to the helicopter or injury the porperty of others.



(200001552)

SKU 200001552
Brand Align
