DS530 Digital Servo

Instruction:

●High rigidity, shock resistant metal gears.
●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●Higher signal resolution for smooth movements.
●Fast speed with high torque of 9.0kg/cm. High strength composite alloy gears with durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo's high efficiency.
●Supports high voltage 8.4V.
●Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use.

Specification:

●Stall torque: 6.5kg.cm(6.0V)
9.0kg.cm(8.4V)
●Motion speed: 0.085sec/60°(6.0V)
0.065sec/60°(8.4V)
●Rating voltage: DC 6.0-8.4V
●Temperature range: -20°C ~ +60°C
●Dimension: 35.1 x 15.1 x 29mm
●Weight: 29g

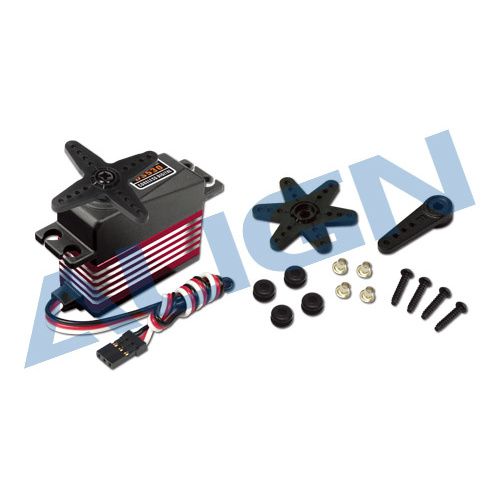

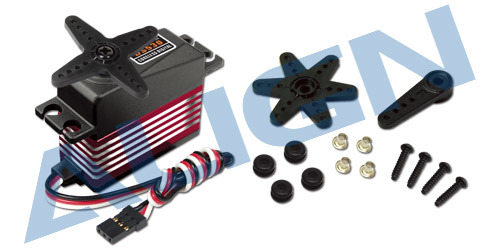

Accessories:

●DS530 Digital Servo x 1
●Servo Arm x 1
●DS515/525 Servo Arm Set x 1
●Socket Button Head Self Tapping Screw x 4(T2.6x12mm)

(200001448)

SKU 200001448
Brand Align
