Instruction:


●Utilizes dual point attachment design for zero play and higher precision control feel.
●Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
●6061-T6 Aluminum alloy material and CNC processed.

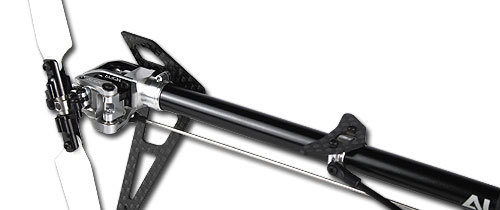

●Use for H25129 Metal Tail Torque Tube Unit.
●Must with H25021A Tail Pitch Assembly.
H25066A Tail Pitch Control Link.



Specification:



●Linkage ball A(0#x2) × 1(Φ3.5x5.3mm)
●I-shaped Arm × 1
●Mount Link × 1
●Bearing F681XZZ × 2(Φ1.5xΦ4xΦ5x2mm)
●Collar × 1(Φ1.5xΦ2.5x5mm)
●Socket button head screw × 1(#0-80x8mm)
●Washer × 1(Φ1.5xΦ3x0.5mm)
●Tail pitch control link × 2(4.9x1.4x2.4mm)
●Collar A × 2(Φ1.5xΦ2.3x2.4mm)
●Collar B × 2(Φ1.5xΦ2.3x1.4mm)
●Socket button head screw × 2(#0-80x4mm)
●Bearing holder × 1(8.5x7.3x5.6mm)
●M2 Set screw × 2(Φ2.5x2.4mm)
●Washer × 1(Φ3xΦ4.8x0.6mm)
●Bearing MR63ZZ × 2(Φ3xΦ6x2.5mm)

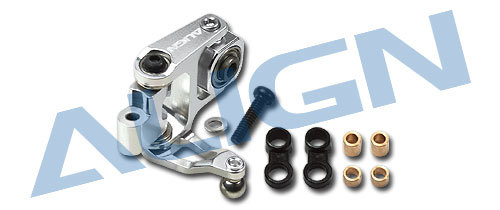

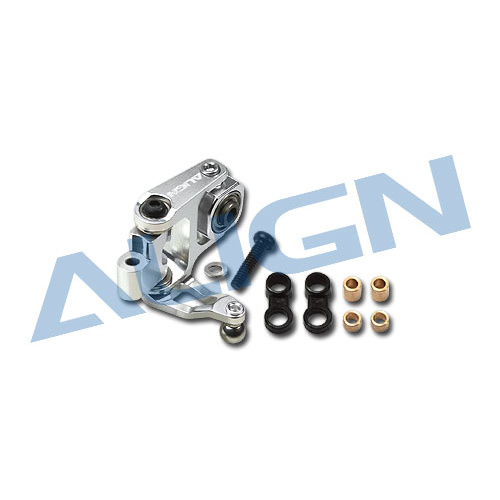

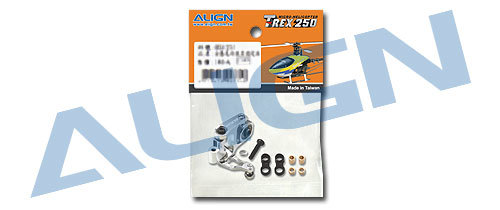

250 Metal Tail Pitch Assembly

(200000479)

SKU 200000479
Brand Align
