Additional Specifications:

  • Screen Size : 7 "TFT LCD , LED backlight
  • Resolution: 1024 * 600
  • Brightness : 300cd/m2
  • Contrast: 700:1
  • Power supply: 7 - 28V or 3S LiPo
  • Consumption: < 8W
  • Dimensions : 183mm x 126mm x 20mm
  • build-in diversity 5.8Ghz
  • equipped with 2 video outputs ( both two channels 5.8Ghz ) and 2 video inputs
  • 8 languages available
  • Operating Temp : -10 ℃ ~ 65 ℃ and +

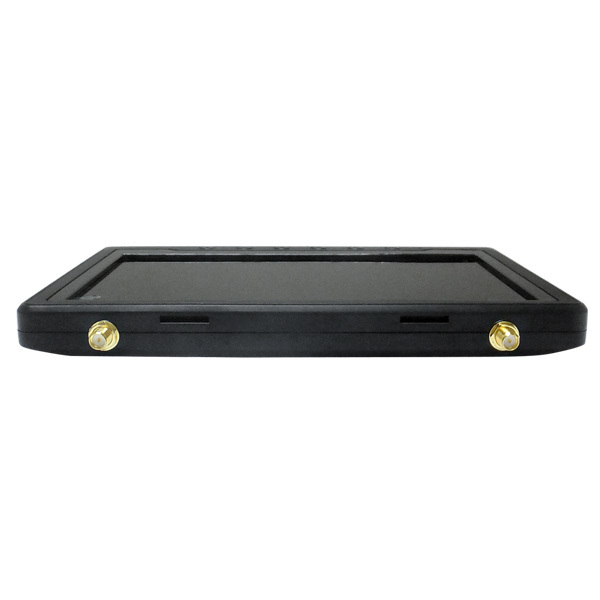

  • Compatible with SMA antenna connector only (the antena must have center needle)
  • 32 frequencies are available



·CH1: 5705MHz / 5740Mhz / 5865Mhz / 5733Mhz ·

CH2: 5685MHz / 5760Mhz / 5845Mhz / 5752Mhz ·

CH3: 5665MHz / 5780Mhz / 5825Mhz / 5771Mhz ·

CH4: 5645MHz / 5800Mhz / 5805Mhz / 5790Mhz ·

CH5 : 5885MHz / 5820Mhz / 5785Mhz / 5809Mhz ·

CH6 : 5905MHz / 5840Mhz / 5765Mhz / 5828Mhz ·

CH7 : 5925MHz / 5860Mhz / 5745Mhz / 5847Mhz ·

CH8 : 5945MHz / 5860Mhz / 5725Mhz / 5866Mhz

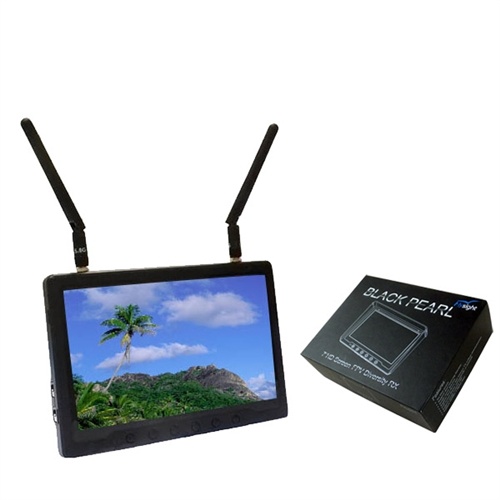

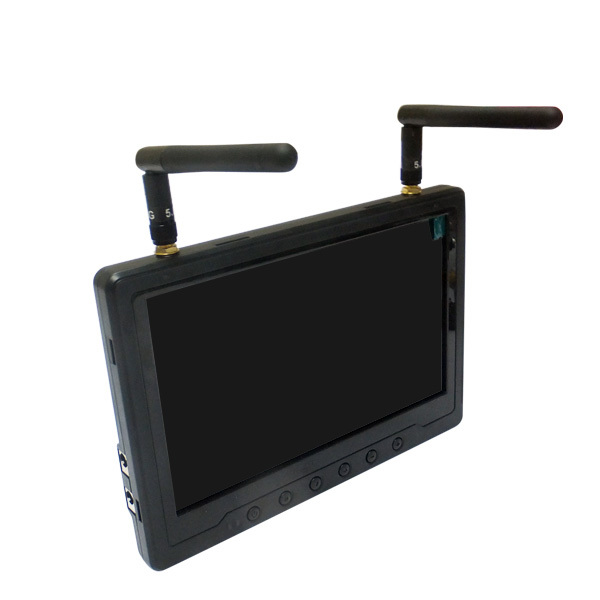

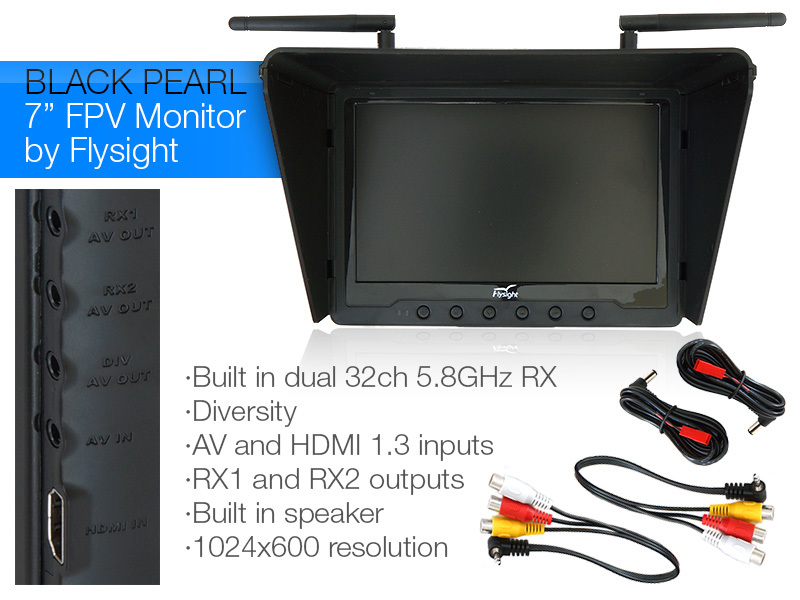

7" Black Pearl Monitor with built in 5.8Ghz and Diversity



Features:

  • Anti reflective matte screen

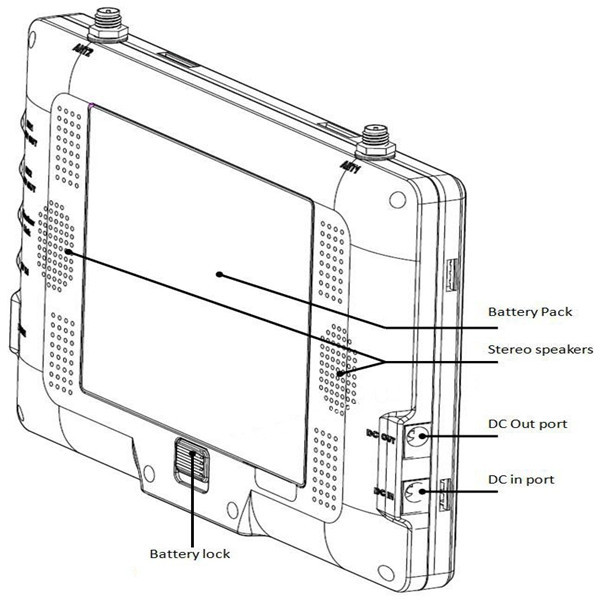

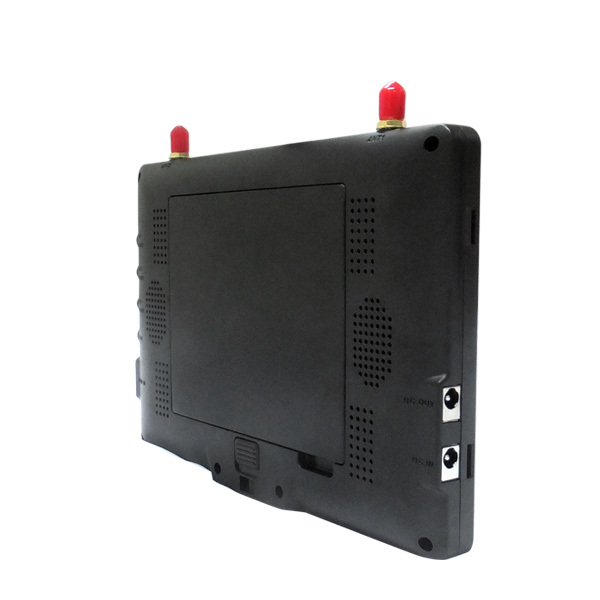

  • housing built-in for battery (batteries soon available)
  • It is very bright in daylight 300cd / m²
  • build-in two 5.8GHz video receivers and a diversity system that will automatically select the best video signal

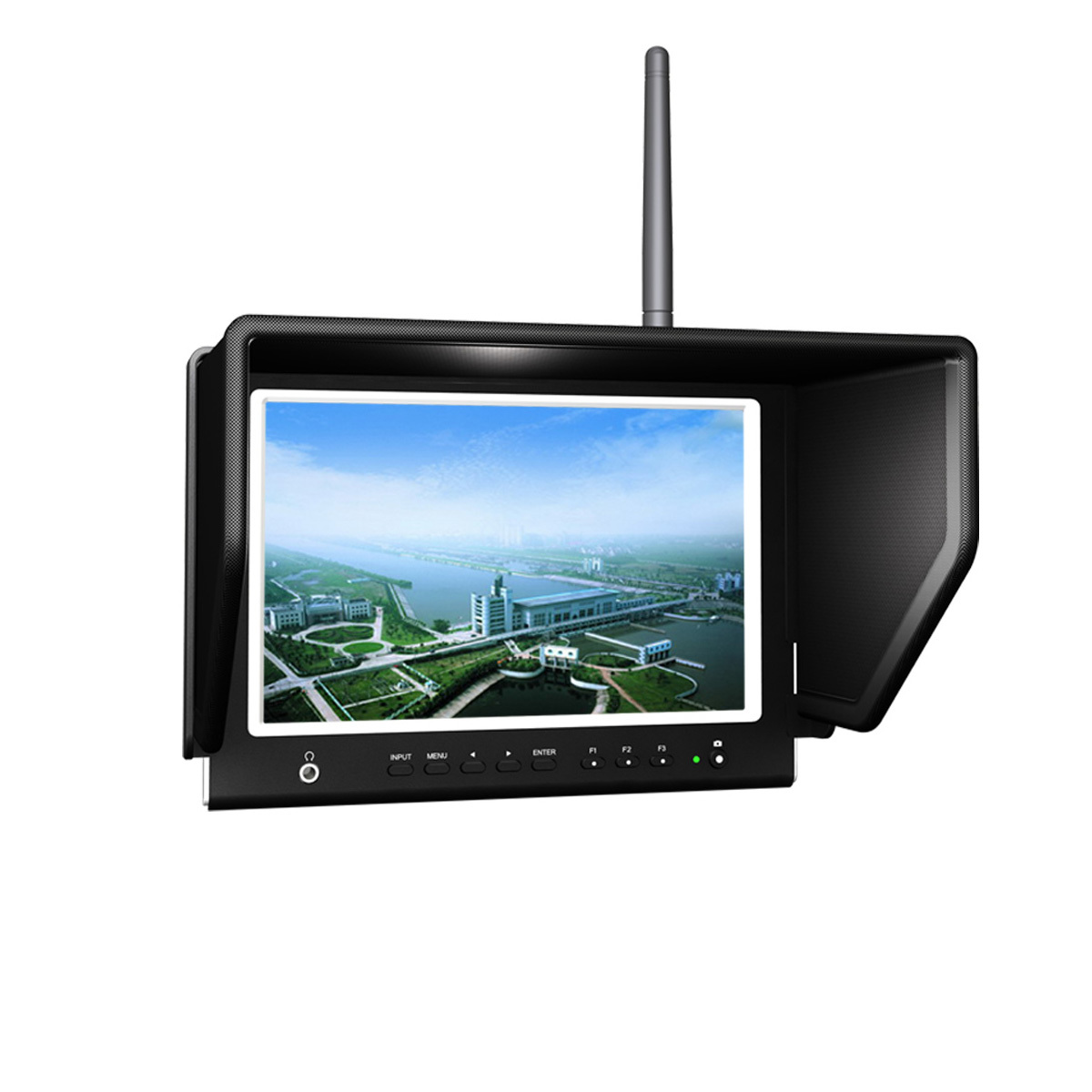

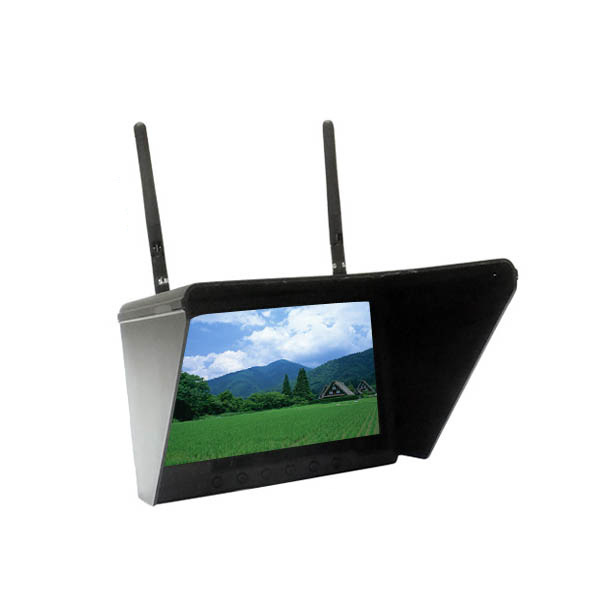

  • It is equipped with an efficient rigid sun hood
  • photo screw to clamp it on standard system (1 /4 " 20 threads per inch WBS )
  • It has video outputs and Dc output to connect and power other equipment
  • A composite video input will allow you to display external sources

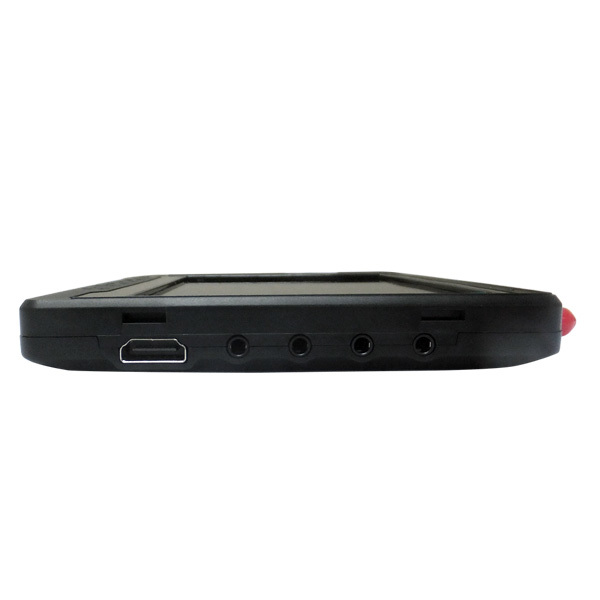

  • HDMI video input

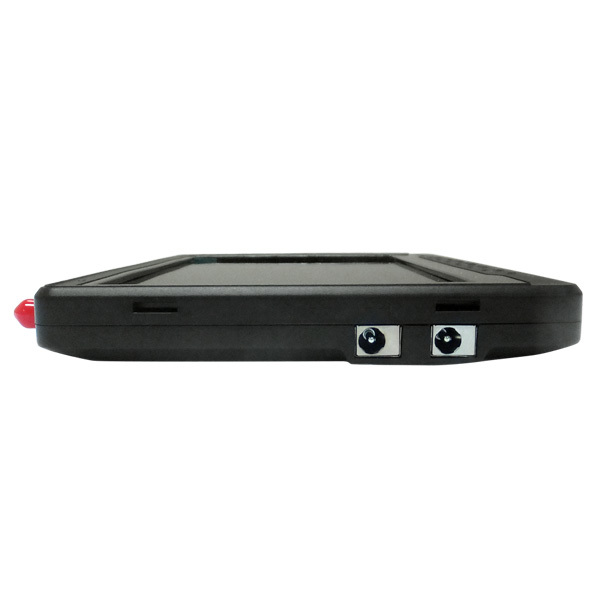

  • Power 7 - 28V and a DC output for powering a pair of video googles or other equipment (Dcout = Dc in, MAX 1A)
  • Channel selection via button (no more micro switch !)
  • Built in speakers to hear the sound ( from your video Tx or video input sources )



Includes:

  • 7 " screen with dversity
  • RC8012X omni antennas (duck ruber )
  • 2X AV Cables
  • 2X Power Cable with JST connector
  • 1X rigid sunhood



(400000910)

SKU 400000910
Brand Flysight
