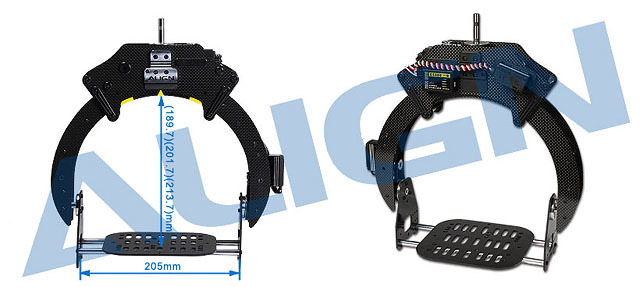

Focus Shot1

(3K carbon composite material matched with high strength aluminum alloy to form the gimbal backbone)

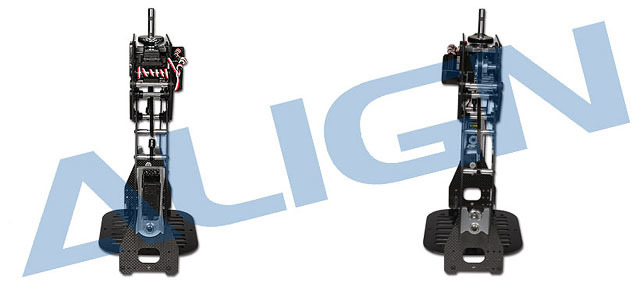

Focus Shot2

(High rigid gimbal bottom plate and gimbal camera tray supporting pole that featuring high precision, high stability, capable of high payload, and is able to sustain hard landing of helicopter)

Focus Shot3

(Utilizes with 540 degrees DS815 servo and belt transmission design, the gimbal is capable of wider turning angles with higher precision)

Focus Shot4

(Unique gimbal support assembly design, with aesthetic pleasing clean look, featuring high precision and slop free and makes the camera lens maintain at the same angle in flight)

Focus Shot5

(Shock absorbing dampers designed specifically for Align GS800 gimbal system, and various spring tensions can be used according to payload)

Focus Shot6

(Gimbal Accessory)

Focus Shot7

(G800 Gimbal Shock Accessory)

Focus Shot8

(G800 Gimbal Camera Pad )

Focus Shot9

(ESC Mount)

Focus Shot10

(GS800 Controller)

Focus Shot11

(DS815 HV Robor Srevo)

Instruction

●Align G800 gimbal is an upgrade product catered specifically for the needs of aerial photography. The included GS800 gimbal controller features high power computing capability, and various control modes to precisely lock into the shooting object, as well as meet the needs of various other aerial photography needs, allowing optimal imagery to be obtained easily. This system must be used in conjunction with Align's APS gyro and T-Rex 800E. 3k carbon composite material matched with high strength aluminum alloy to form the gimbal backbone, featuring high precision, high stability, capable of high payload, and is able to sustain hard landing of helicopter. When paired with 540 degrees DS815 servo and belt transmission design, the gimbal is capable of wider turning angles with higher precision.
●Unique gimbal support assembly design, with aesthetic pleasing clean look, featuring high precision and slop free and makes the camera lens maintain at the same angle in flight.
●Shock absorbing dampners designed specifically for Align GS800 gimbal system, posses superior vibration dampening effect, and various spring tensions can be used according to payload.

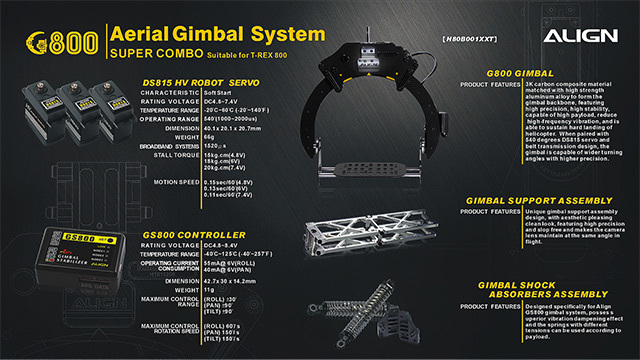

Specification(DS815 HV Robor Srevo) :

Characteris Tic: Soft Start
Rating Voltage:DC4.8~7.4V
Temperature Range:-20℃~60℃(-20°~140℉)
Operating Range:540°(1000~2000us)
Broadband Systems:1500μs
Stall Torque:15kg.cm(4.8V)
18kg.cm(6V)
20kg.cm(7.4V)
Motion Speed:0.15sec/60°(4.8V)
0. 13sec/60°(6V)
0.11sec/60°(7.4V)
Dimension:40.1x20.1x20.7mm
Weight:66g

Specification(GS800 Controller) :

Rating Voltage:DC4.8~8.4V
Temperature Range:-40°C~125°C (-40°~257°F )
Operating Current Consumption:
55mA@ 6V(ROLL)
40mA@ 6V(PAN)
Maximum Control range:
(ROLL) ±30°
(PAN) ±90°
(TILT) ±90°
Maximum Control rotation Speed:
(ROLL) 60°/ s
(PAN) 150°/ s
(TILT) 150°/ s
Dimension:42.7x 30 x 14.2mm
Weight:11g

Features:

●Gimbal features 3k carbon composite material matched with high strength aluminum alloy to form the backbone, featuring high precision, high stability, high payload capability, and is able to sustain hard landing of helicopter.
●Utilizes 540 degrees DS815 high voltage robotic servos, supporting 2s 7.4v input voltage. Special slow start feature to avoid jerky start-ups.
●Unique gimbal support assembly design, with aesthetic pleasing clean look, featuring high precision and slop free and makes the camera lens maintain at the same angle in flight.
●Shock absorbing dampners designed specifically for Align GS800 gimbal system, posses superior vibration dampening effect, and various spring tensions can be used according to payload.
●GS800 gimbal controller is a highly stable, highly precise 3-axis gimbal control system. Featuring 5 control modes: mode 1 -three axis auto compensation; mode 2 - two axis auto compensation; mode 3 -three axis return to neutral; mode 4 - manual; mode 5 - rescue mode. These various modes will meet the variety needs of aerial photography.
●Simple to setup. Complete setup can be done with two steps.
●Unique rescue mode, to minimize photography equipment damage during a crash.
●Supports lens zoom in and zoom out feature.
●Supports shutter activation. Follow the instruction to connect shutter with GS800 controller, shutter can be activated via transmitter stick through GS800.
●Supports Spektrum/JR satellite receivers and Futaba S.BUS architecture.
●Upgradeable firmwareinterface, allowing firmware updates through interface cable.
●Must be used in conjunction with Align APS gyro and 3GX flybarless system, enabling gimbal control system to achieve high stability and excellent controllability.

Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.

 Accessories:

●G800 GIMBAL x 1 set
●Gimbal Support Assembly x 1 set
●Gimbal Accessory x 1 set
●G800 Gimbal Camera Pad x 2 pcs
●GS800 Controller x 1 set
●DS815 HV Robor Srevo x 3 set
●ESC Mount x 1 pcs
●G800 Gimbal Shock Absorbers Assembly x 1 set
●G800 Gimbal Shock Accessory x 1 set
