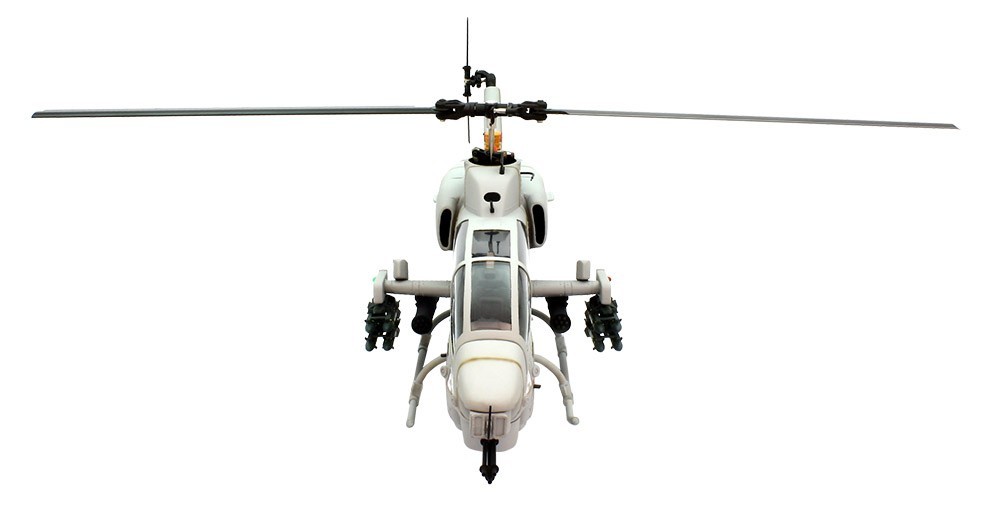

AH-1 Apache Gunship 470 Size Kit, Gray, W/ Weaponry

Please note this item is not for beginners, these helicopters are not toys, and require precise setup and installation to fly correctly.
If unsure of anything, please contact us first to help clarify and questions you may have.

This scale helicopter comes with a complete scale mechanic! Only electronic components are needed!

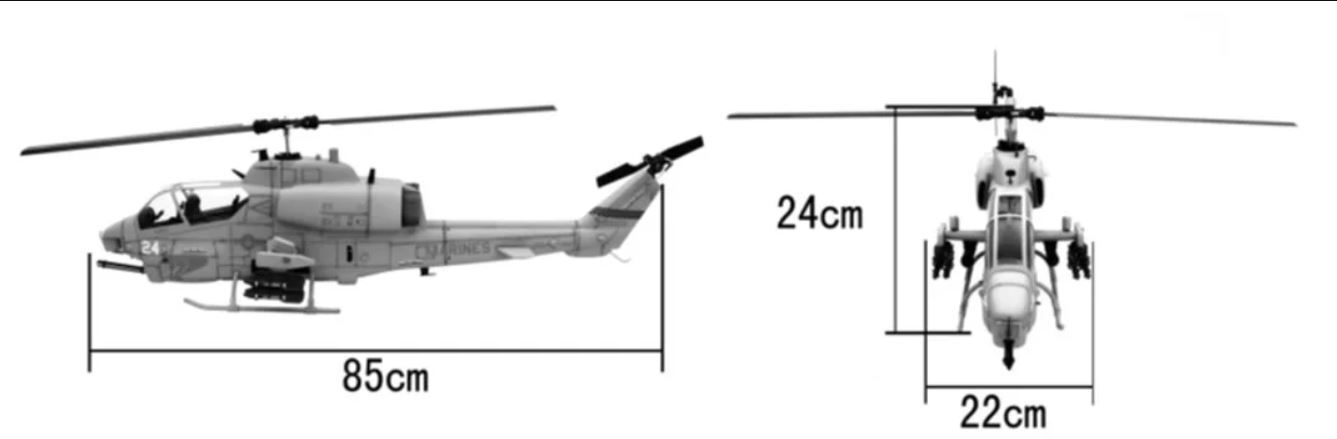

Body length: 850mm
Length incl. rotors: 980mm
Width: 220mm
Height: 240mm
Main rotor diameter 750mm
Main blade length: 350mm
Tail rotor diameter: 160mm
Tail blade length: 68mm
Main shaft diameter: 8mm
Tail shaft diameter: 5mm
Spindle diameter: 6mm
Main blade count: 2
Tail blade count: 2
Drive gear ratio: 1:13.8:4.7

Required to Complete:

Motor:* 1x 2222 2000KV outrunner , 6S capable
Speed controller:* 1x 40A brushless, 6S capable
Servo:* 3x 9g MG cyclic, 1x 9g MG tail servo
Battery:* 22.2V 1250mAh 25C
Flight time: 5 minutes
Takeoff weight: 1400g
Flight Stabilization:* 3 axis flybarless gyro
Radio Control:* min. 6 channel with pitch and throttle curves


Two Blade Rotorhead and scale carbon fiber rotor blades included
Extremely detailed surface details, a realism unknown in this size class

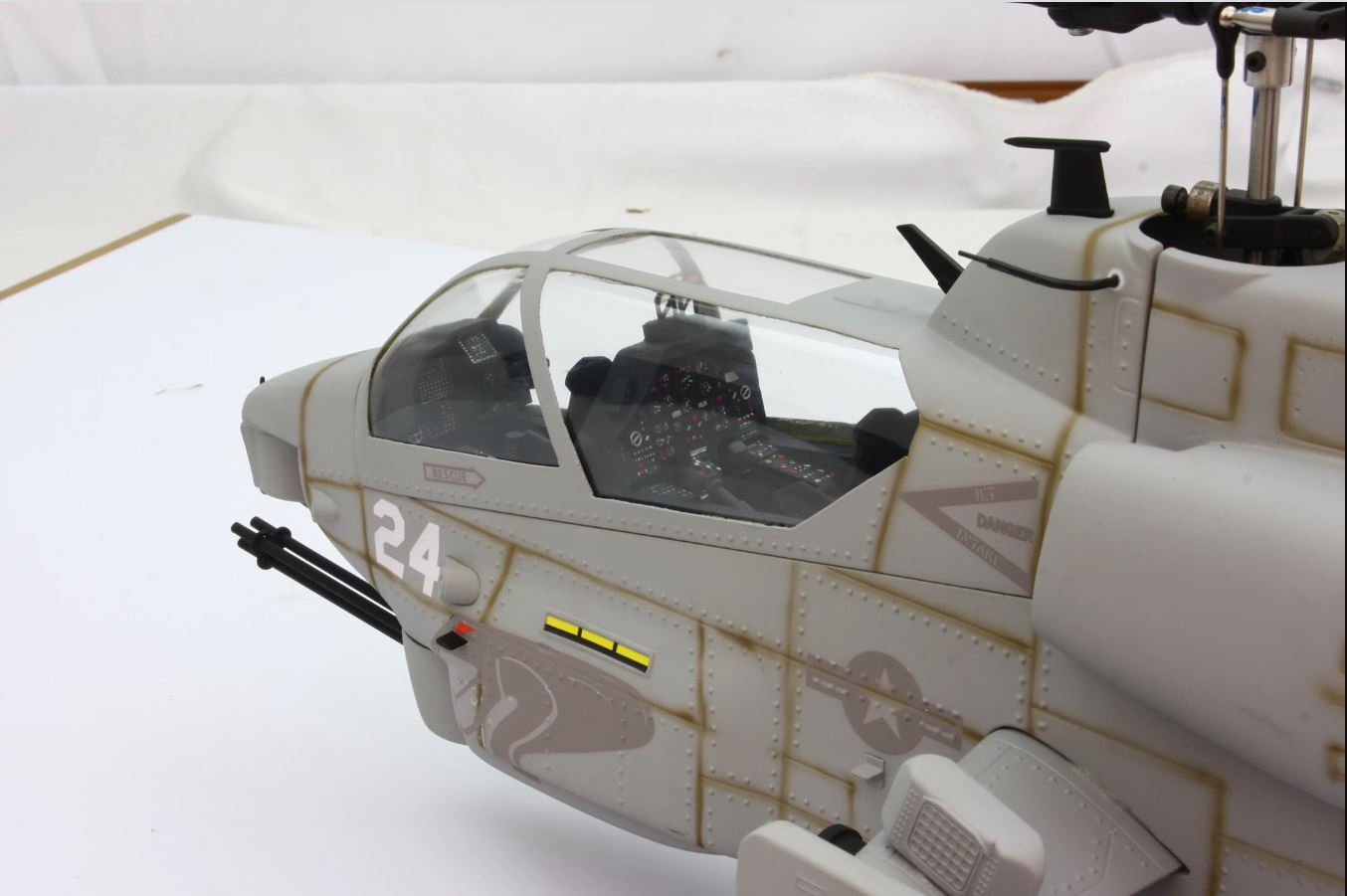

Complete two seated scale cockpit
Complete built in / preinstalled position lighting system (controllable via aux channel)
Special CCPM mechanics built in the top section, as on a real helicopter
Use of 450 standard equipment (6S battery, 1800KV motor), fly with your existing parts
Take off weight of 1.2kg (about the double than a 450 helicopter)
900mm long, exact 1/13 scale
Product comes preassembled and requires very few work to mobilize it

Robans new 470 size B AH-1W is now available.
Our new True Scale Design locates the cockpit exactly at the right spot, unlike most fuselages that are based on 3D mechanics. The compact mechanic is built into the engine compartment, just like on a real helicopter. Therefore it allows space for front to back scale cockpit seats. The position light system programmable with 9 different patterns is preinstalled.

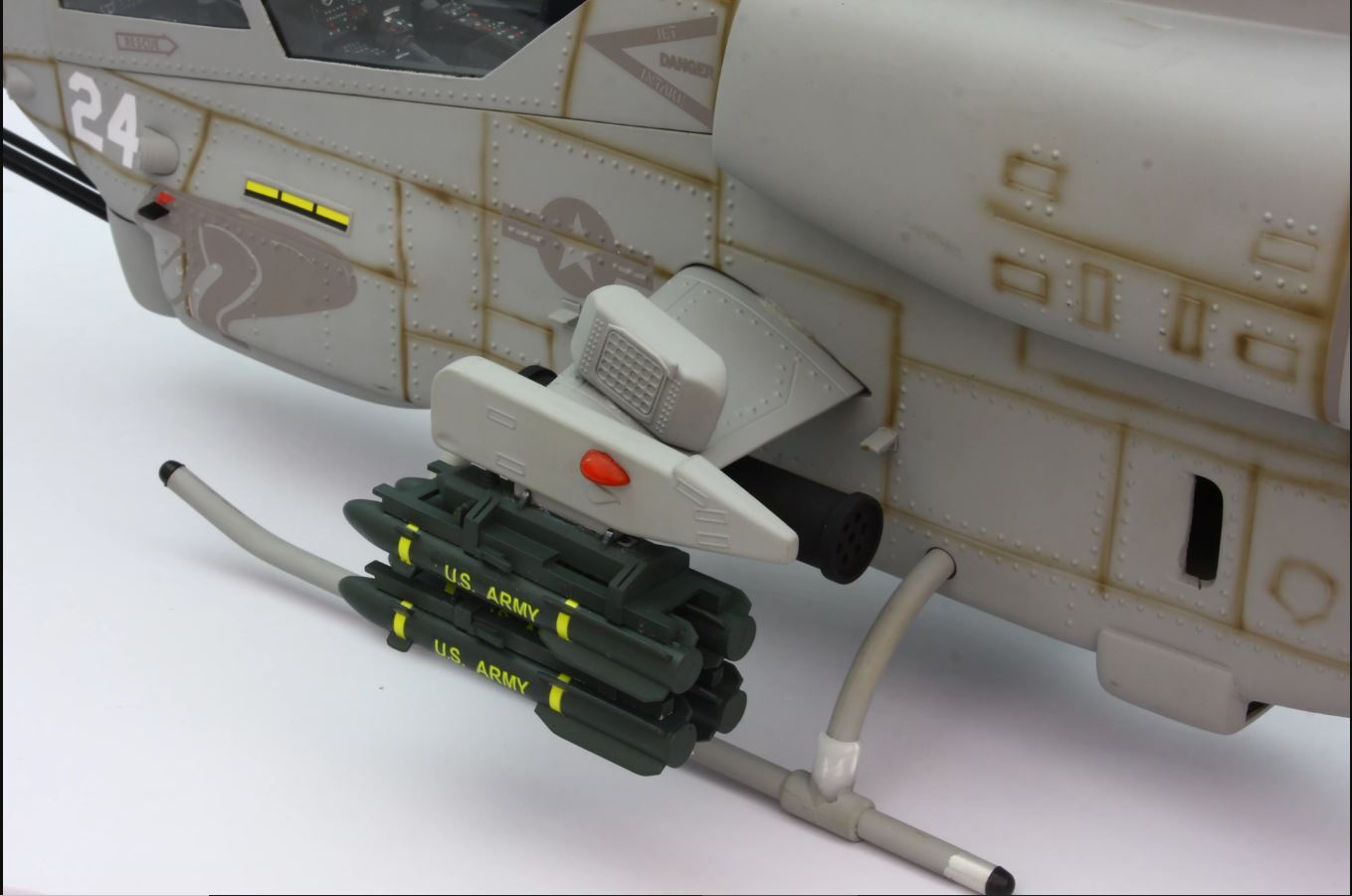

The fuselage of the B AH-1W stands out through the detailed crafted surface details and the overall correctly scaled down shape. This unique scale look and details stun and make it hard to see the difference to a real helicopter.
The helicopter comes with a detailed instruction manual. The setup is simple and quick, the mechanics are completely preassembled. Only screw drivers and allen keys are required to make it airborne.


SKU 200001066
Brand Roban
