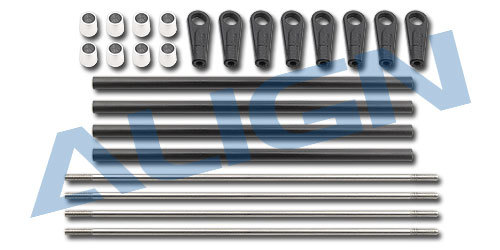

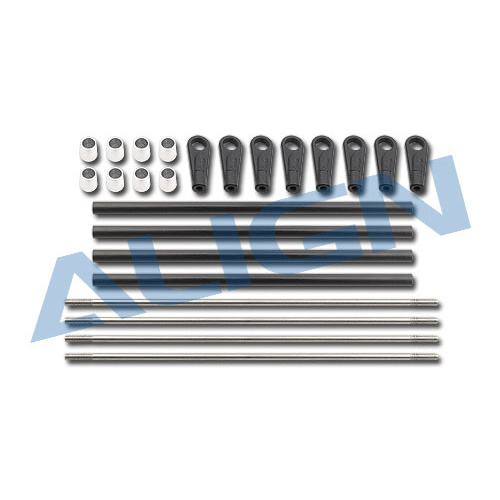

●700E Linkage x 4(2x110mm)
●700E Aileron Control rod Carbon Fiber Shaft x 8(4x5.4x6.5mm)
●700E Aileron Control rod Carbon Fiber Tube x 4(2.2x3.9x96mm)
●700N Ball Link x 8(5x20.5mm)



●Use for T-REX 700E.



Illustration 1:Mix thoroughly suitable amount of epoxy.





Illustration 2:Apply generous amount of epoxy on the tips of carbon tube after sliding over the linkage rod.
(Note: for quick drying epoxy, work fast as it must be applied prior to curing)





Illustration 3:Slide the carbon end caps on both sides of the carbon tube.







Illustration 4:Thread the ball links onto the linkage rod until the base to base length is 97.5mm.





Illustration 5:If gap exists between the ball link and end caps after correct length has been achieved, slide the end caps outwards to cover the gaps (note: must be done before epoxy cures)





Illustration 6:Wipe away excess epoxy and set it aside to cure.







Illustration 7:Pop the finished link back between aileron servo horn and bell crank.

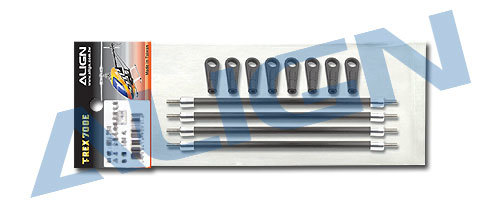

Aileron Carbon Fiber Linkage Rod Set
SKU 200000449
Brand Align
