Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 700 and 800 series.

Includes:

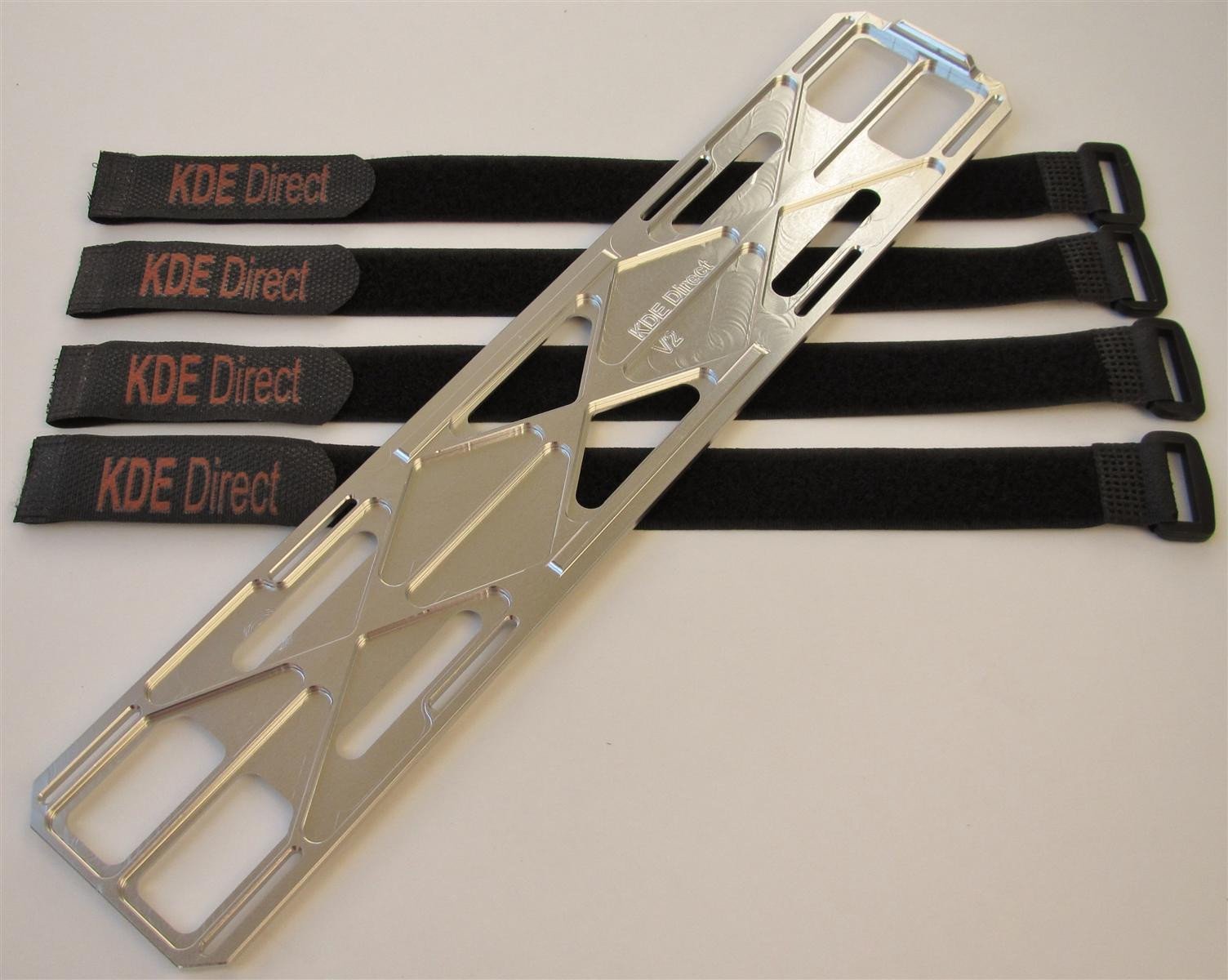

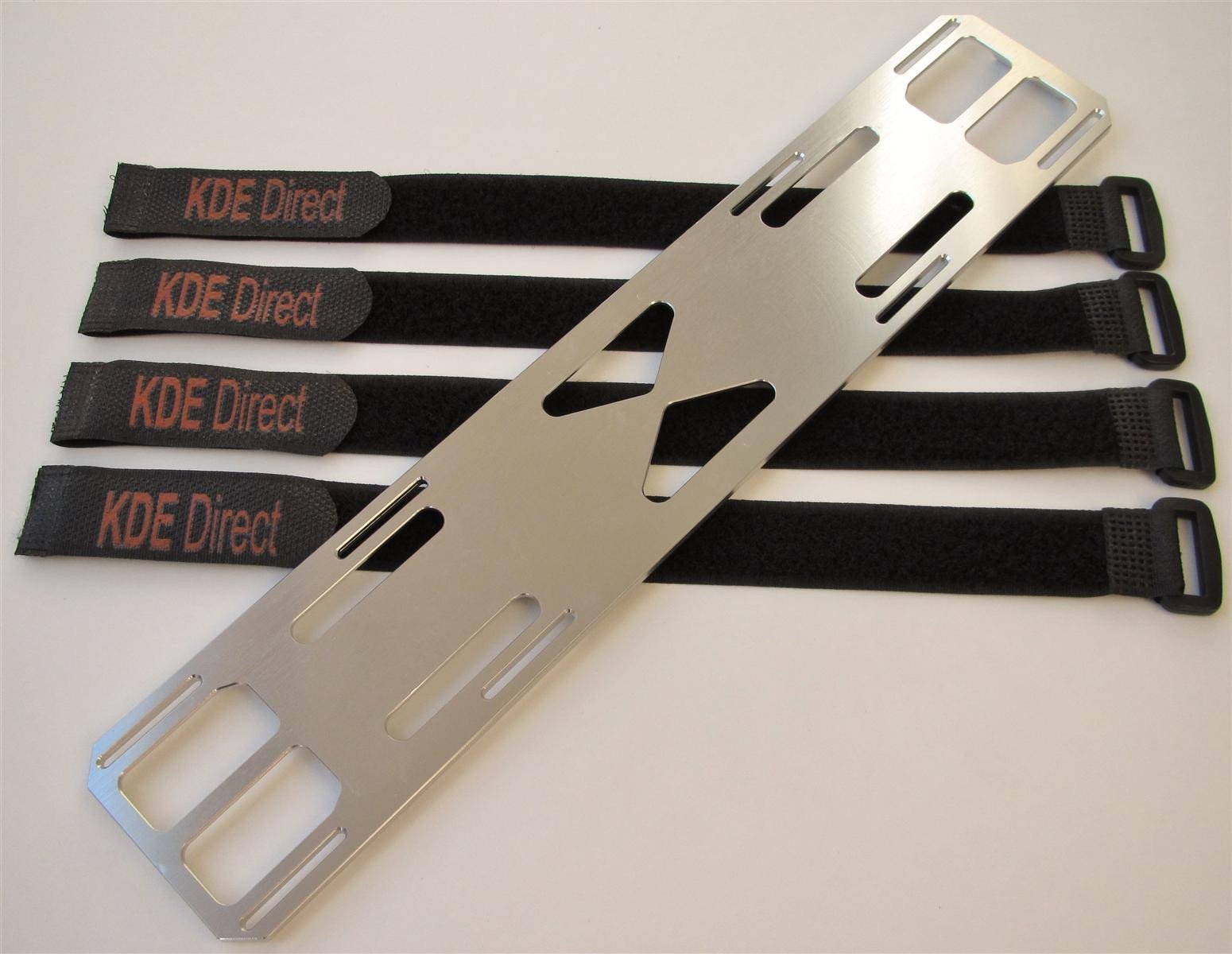

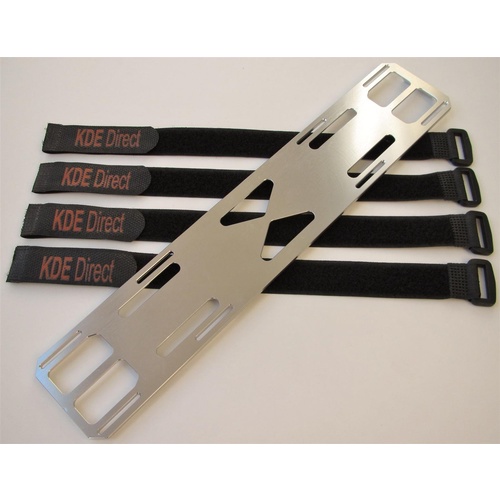

  • One (1) T-Rex 700/800 Series Aluminum Battery Tray Upgrade V2

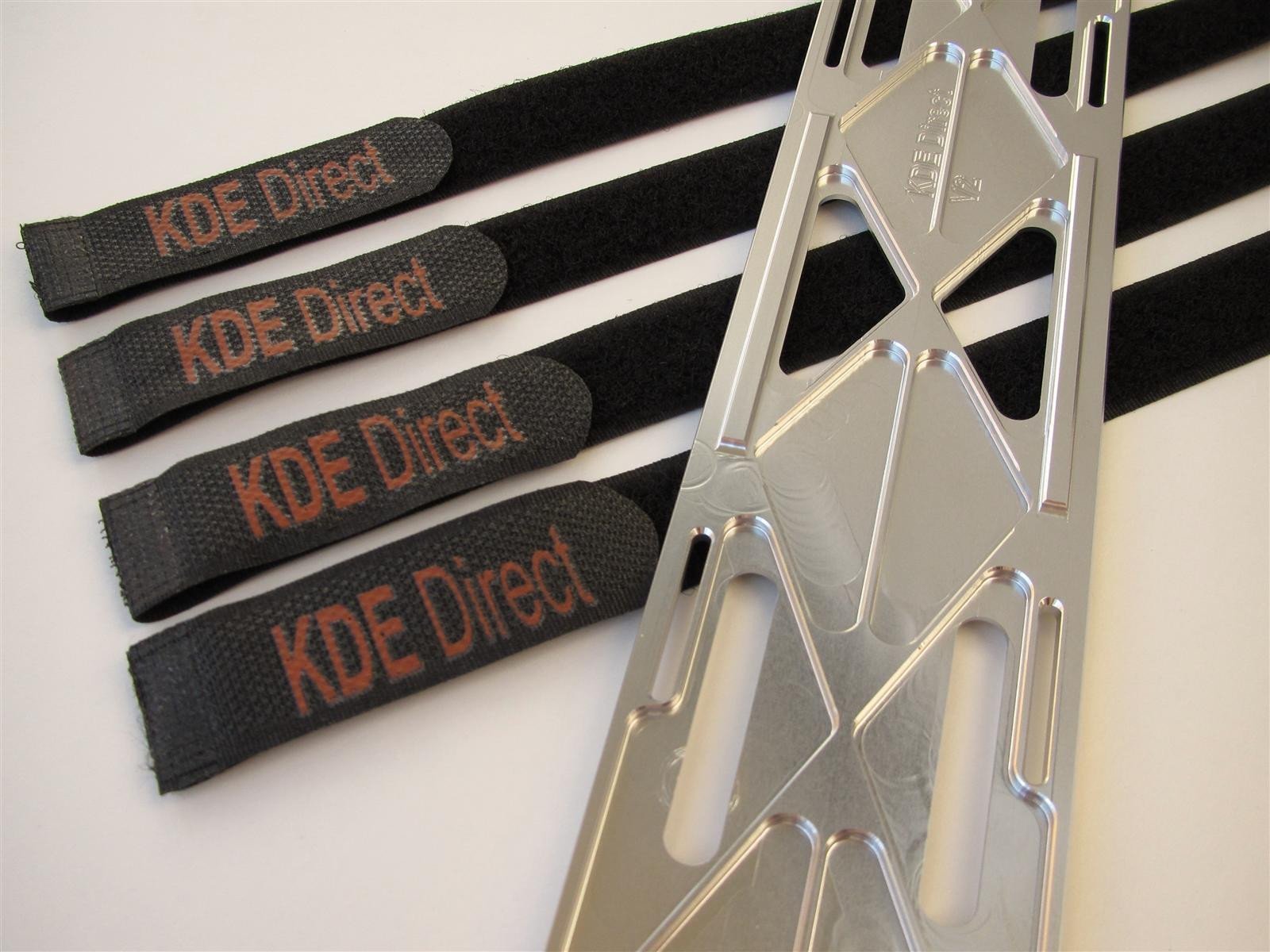

  • Four (4) KDE Direct LiPo Retaining Straps

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 64 g (design is FEA optimized for maximum strength and minimum weight)

BATTERY TRAY UPGRADE V2 FOR ALIGN T-REX 700/800 ELECTRIC SERIES HELICOPTERS

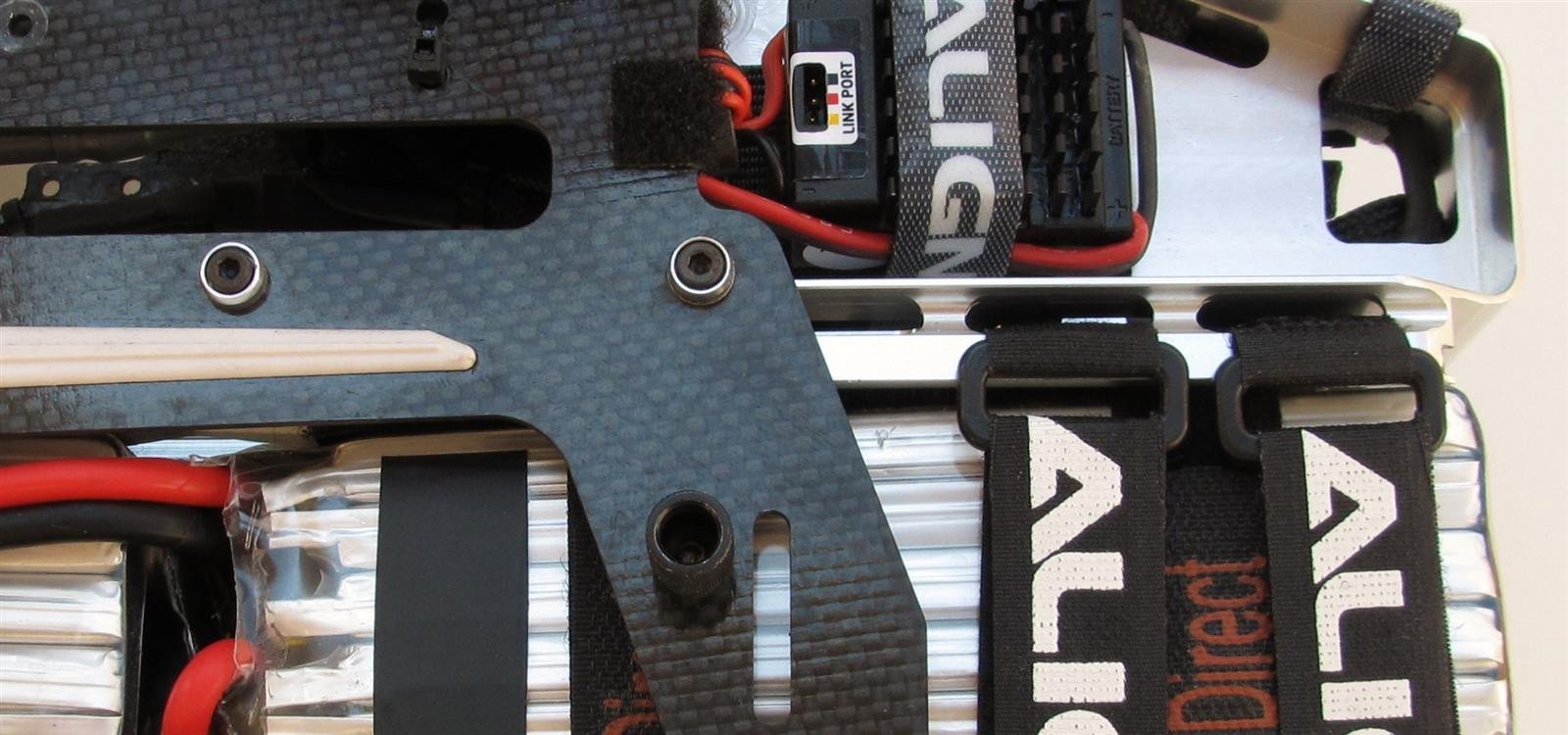

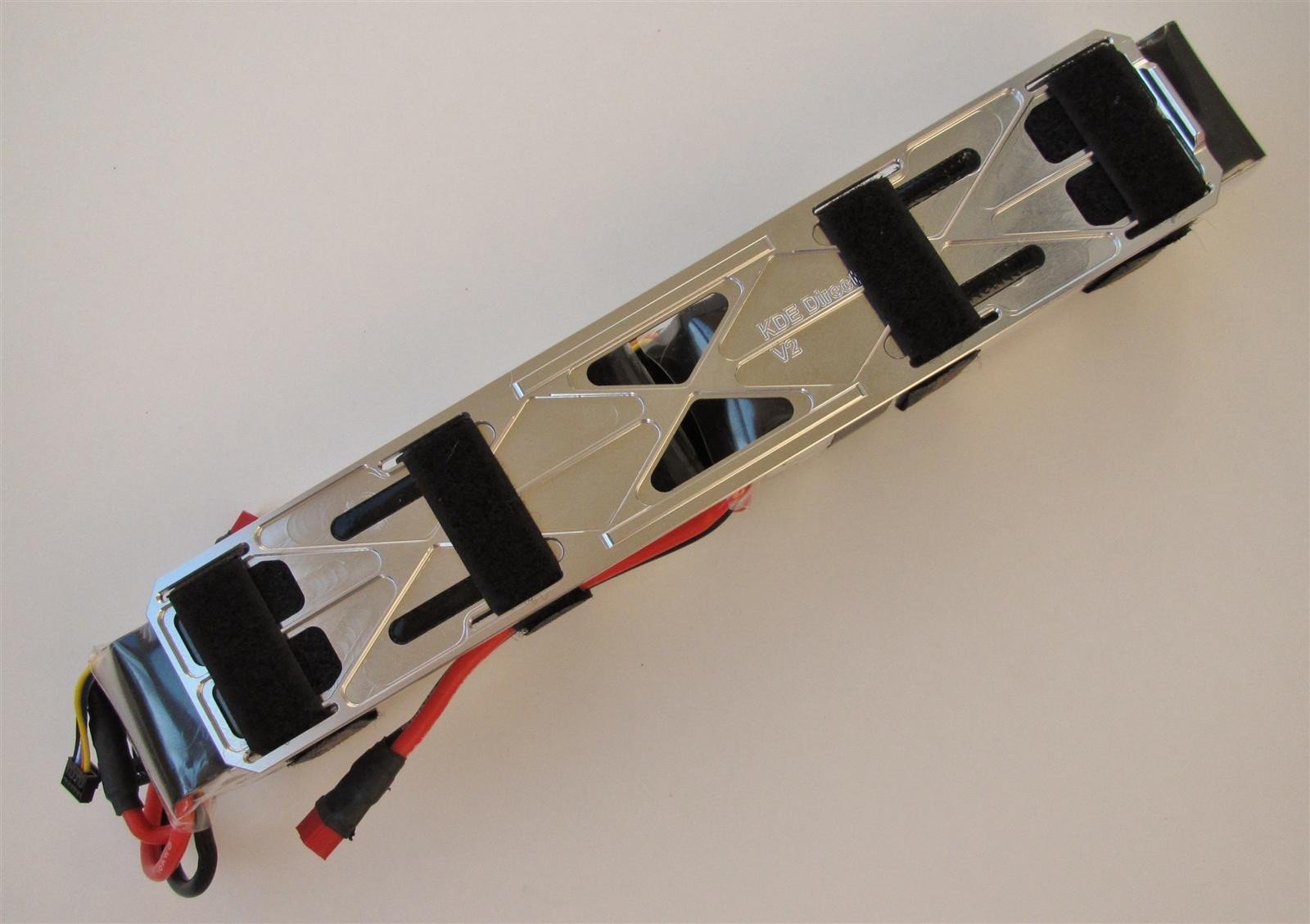

The Battery Tray Upgrade V2 provides the best support for the LiPos during flight, with an ultra-light and high-strength frame design that is a perfect match to the stock rails of the T-Rex 700/800 (V1/V2/DFC) design and the KDE Direct T-Rex 700E Receiver Mount Upgrade. In addition, the upgrade includes four (4) KDE Direct LiPo Retaining Straps optimally sized for the four LiPo channel slots incorporated into the tray design; providing optimal security and slop-free retention of the LiPos during extreme 3D maneuvers.

Update: The new "V2" design incorporates additional geometry to work with the ALIGN Latch-Type Receiver Mount (H70086) bundled with the latest T-Rex 700 and 800 kits. As an additional upgrade feature, the length of the tray upgrade has been extended to 11.25 in (285.75 mm) and a new FEA-optimized webbing profile has been added to provide additional support and strength for the dual-LiPo setup when installed.

(200001286)

SKU 200001286
Brand KDE
