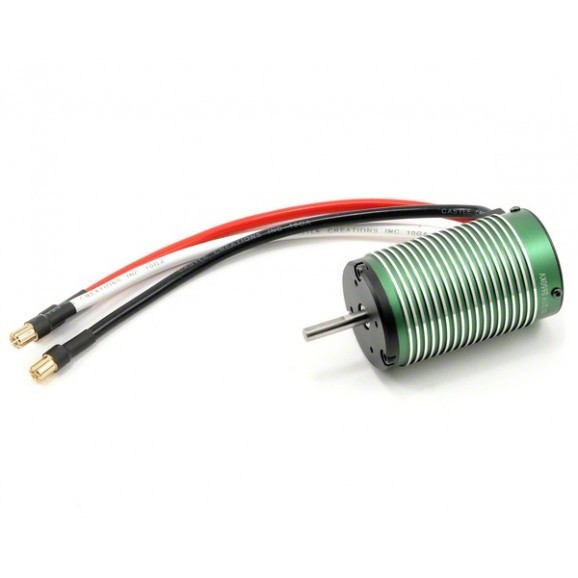

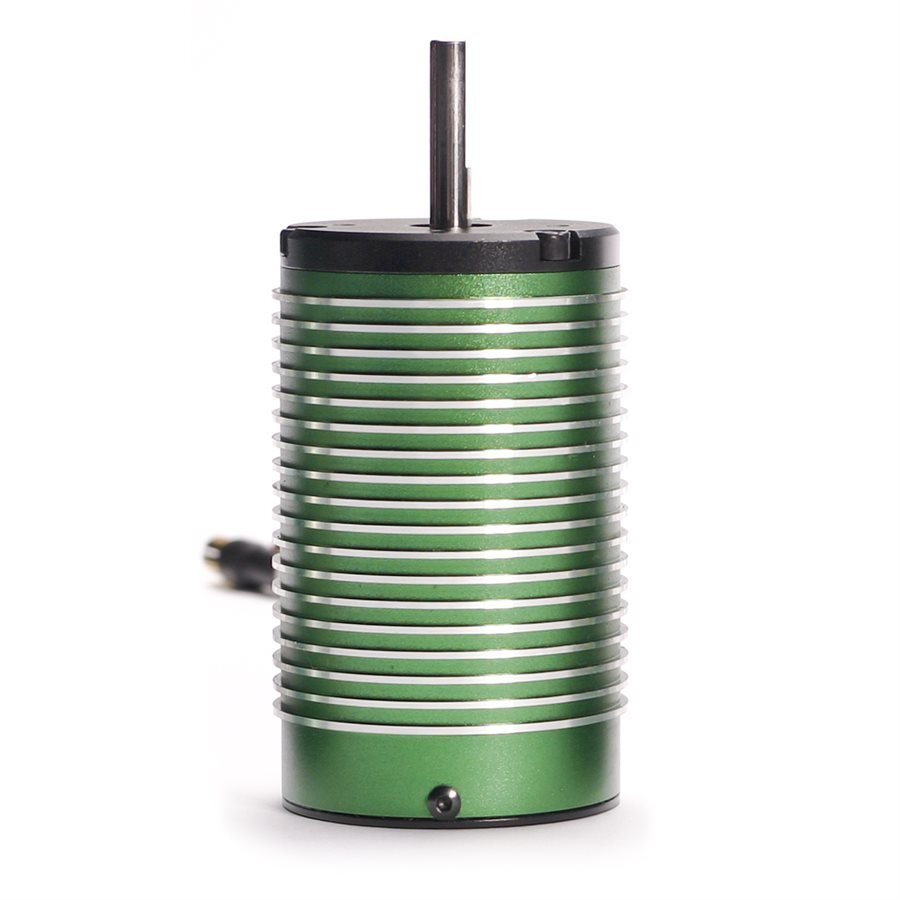

Castle Creations 1/8 SCALE BRUSHLESS MOTOR 2650KV w/5mm Shaft

Monster Power!
The Neu-Castle 1512-2650Kv motor is a highly-efficient motor capable of 2S to 4S LiPo and is perfect for 1/8 scale buggies and on-road cars weighing up to 9lbs (with batteries, ready-to-run). Paired with our Mamba Monster 2 or Mamba Monster X ESC you will have all the power your 1/8th scale vehicle demands.

Features:

High quality oversized bearings
Sintered Neodymium magnets
Superior electromagnetic design
Rigorous quality control



  • Minimum Input Voltage : 2S
  • Maximum Input Voltage : 4S
  • Sensored Capable : No
Technical Specs
Input Voltage Range: MIN: 2S LiPo; MAX: 4S LiPo (see Application Guidelines below)
Kv: 2650
Max. RPM: 60,000
Size: Length: 2.68" (68mm)
Diameter: 1.57" (39.98mm)
Weight (w/wires): 13.1 oz. (370g)
Shaft Size: Diameter: 5mm, Length: 20mm
Mounting Hole Specifications: 3mm screw holes @ 1" (25.4mm) spacing.
Cooling Fan: Available, but not included.
Connectors: 6.5mm male bullets
Items Needed for Operation: Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below)
Product Use Statements: N/A
Application Guidelines: Intended for 4S (16.8 Volt) operation in Buggy and On-road vehicles weighing 9lbs or less with batteries, ready-to-run.
Recommended ESC(s): Mamba Monster X, Mamba Monster 2
Max. Recommended Vehicle Weight: 9lbs or less, with batteries ready-to-run
Tech Notes:
  • Motor wires OK to shorten.
  • Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.



(600001187)
