Instructions:


●Supporting 6S(25.2v)brushless motor. Max current : 90A
●Max. BEC output :20 Amp, Continuous: 9 Amp
●Users can adjust and choose the BEC output voltage as 6V or 8V by software
●Ready to fly out of the bag, but users can tap into serious computing capabilities by connecting them to Castle Link software using a Castle Link or upcoming Field Link programming card.
●Comprehensive heli feature set, including direct entry governor mode, autorotation with bailout, and soft start capabilities to protect your gearing (see the screenshot on the right for more details).



Specification:



●Input voltage: 3S to 6S (12V - 25.2V)
●Surge current : 90 Amps
●Surge current : 140Amps(5sec) (with proper air flow and outer temperature is lower than 70°C)
●BEC output voltage: Continuous current 20A; Burst current 9A
●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
●Max Supporting input voltage:25.2v(6s Li-Po/18 cells Nicad/NiMH)
●Size:80X43X18mm
●Weight:84.5g(With wires)
●Please download the lastest version for your Castle Link

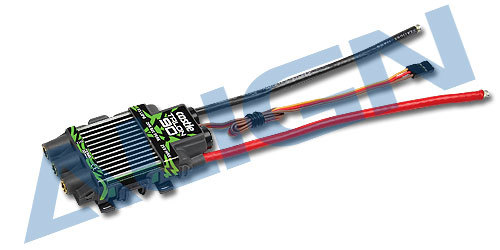

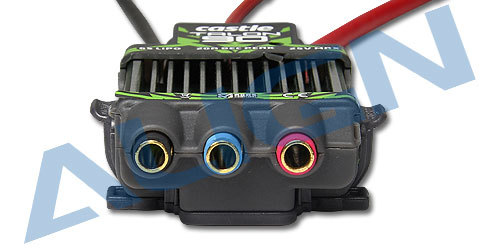

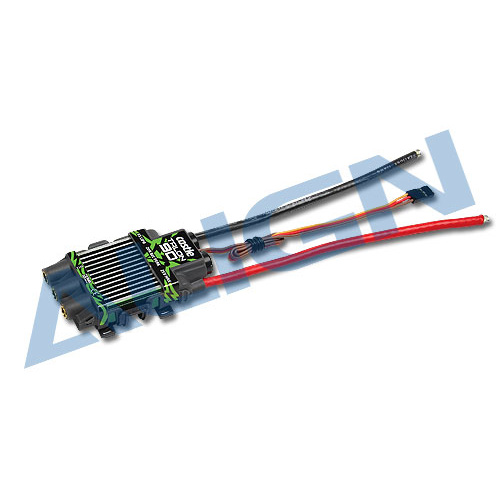

Castle Talon HV 90 Brushless ESC PHOENIX Talon HV 90

(200000597)

SKU 200000597
Brand Align
