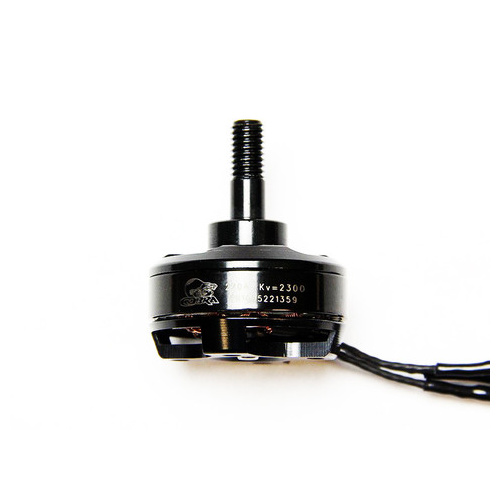

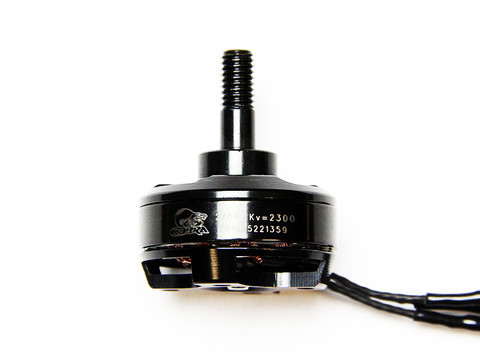

COBRA CM-2204/28 Multirotor Motors 2300kv

Cobra Brushless Multirotor Motors offer performance and value for Your RC Models. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all sides, with separate compartments to protect the motor and accessory pack.

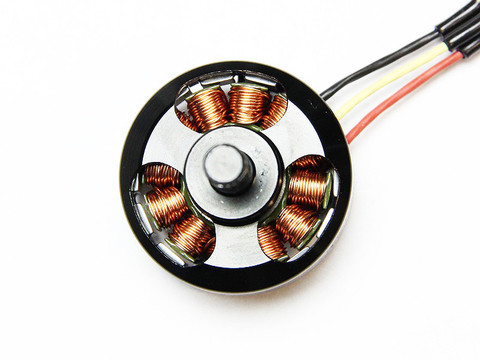

The Cobra CM-2204 series motors have a 3.0mm motor shaft for extra strength, as well as oversize ball bearings to support the shaft and provide a long life. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Since these motors are typically soldered directly to the speed controller to save weight, the 2204 motors come without bullet connectors and feature extended pre-tinned motor leads that are 4-1/2 inches (110mm) long.These motors also have 3mm threaded holes in a 16x19mm pattern on the back plate for easy installation on your model.

The newest version of the CM-2204 series motors feature an integrated 5mm threaded motor shaft which eliminates the chance of having a prop adapter spin off in flight. The included prop washer and nylon insert prop nut provides a solid attachment for your propellers that will not loosen up and slip during use.

Included Accessories;

Four M3x5mm Motor Mount Screws
Four M3 Flat Washers
Machined Aluminum Prop Washer
Locking Prop Nut with Nylon Insert
Motor Specifications;

Stator Diameter 22.0 mm (0.866 in)
Stator Thickness 4.0 mm (0.157 in)
Number of Stator Slots 12
Number of Magnet Poles 14
Motor Wind 28 Turn Delta
Motor Kv Value 2300 RPM per Volt
No Load Current (Io) 0.66 Amps @ 8 Volts
Motor Resistance (Rm) per Phase 0.126 Ohms
Motor Resistance (Rm) Phase to Phase 0.084 Ohms
Maximum Continuous Current 17 Amps
Max Continuous Power (2-cell Li-Po) 125 Watts
Max Continuous Power (3-cell Li-Po) 190 Watts
Motor Weight 24.6 grams (0.87 oz.)
Outside Diameter 27.0 mm (1.063 in.)
Motor Shaft Diameter 3.00 mm (0.118 in.)
Prop Shaft Diameter 5.00 mm (0.197 in.)
Motor Body Length 14.2 mm (0.559 in.)
Overall Shaft Length 32.5 mm (1.146 in.)
Motor Timing 5-10 degrees
PWM Frequency 8 KHz
