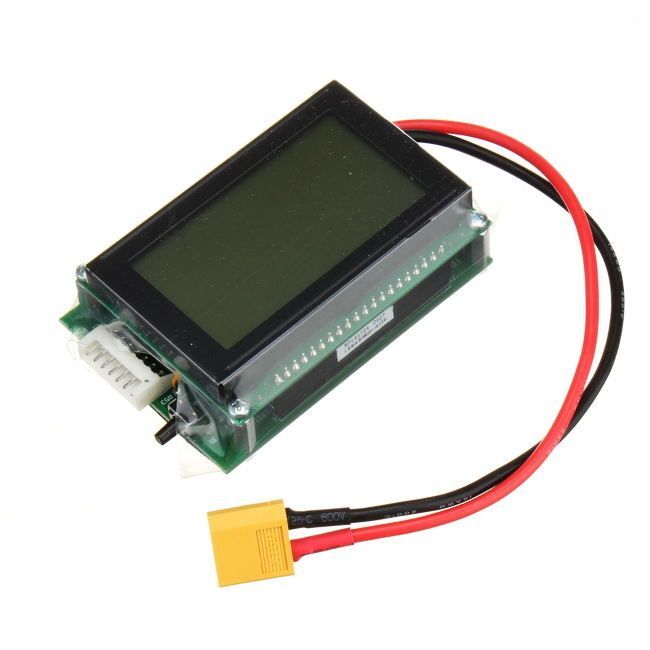

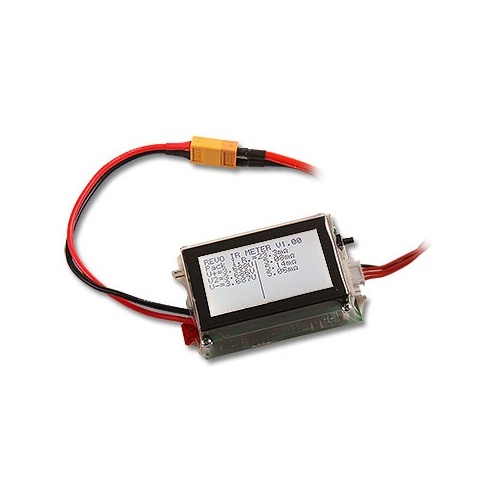

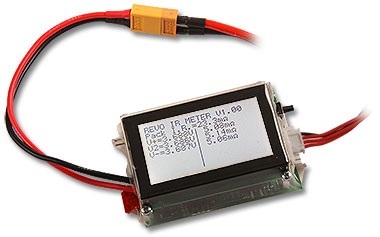

Revolectrix DC IR battery meter >> "The Honesty Meter"

Within seconds you'll be able to compare the packs you are buying for its True C rating

- Supports up to 6S LiPO battery packs
- DC IR measurements up to 2 decimal places (cell & pack)
- Independent pack voltage measurement capability
- Large built in LCD
- XT60 Input
- Single balance connector able to run 2S - 6S packs

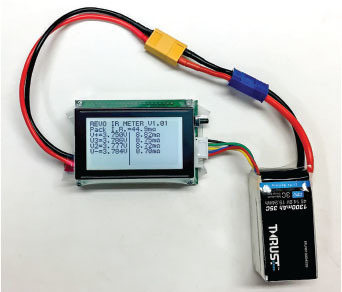

Perfect battery checker to test your packs true capability.
Videos on how to use The Honesty Meter at: https://www.youtube.com/channel/UCZDTf30EKTuZcEfbWlElitg

Specifications:
LCD:
2.6", 128 x 64 pixels graphic LCD with white LED backlight
Mains connector: XT60
Balance connector: Modified JST XH series, 7 position max; accepts 2s-8s balance plugs on batteries
Battery Input Voltage: 7.40V to 26.10V
Cell internal resistance: < 250 mohm
Pack internal resistance: < 1 ohm
Input protection: 10A Fused
User Interface: Single, momentary, tactile push button switch
Size: 95mm x 56mm x 26mm
Input protection: 10A fused
For Battery types: LiPo (2s to 6s) / LiPo HV (2s to 6s) / LiFePO4 (3s to 6s)
Dimensions: 11cmL x 8cmW x 6cmH.


(200001676)

SKU 200001676
Brand Revolectrix
