Instruction:



●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●10 Bits signal resolution for smooth movements.
●Response time of 0.08s/60°. High rigidity metal gears with high precision and durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.



Specification:



●Stall torque:2.4kg.cm(4.8V)
3.0kg.cm(6.0V)
●Motion speed:0.08sec/60°(4.8V)
0.06sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:35.1 x 15.1 x 29mm
●Weight:29g
●1520μs standard band

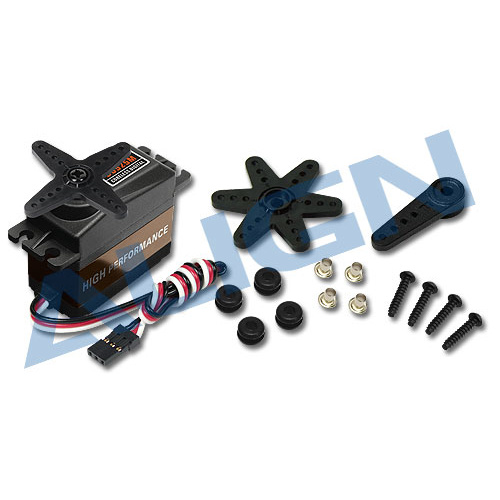

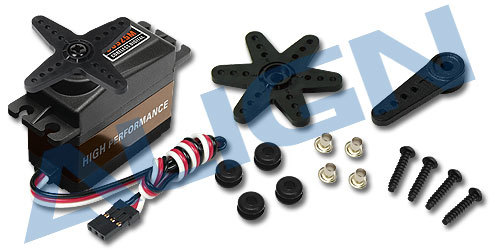

Accessories:


●Servo rudder piece x 2
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●●Socket button head tapping screw(T2.6x12mm) x 4
●D5AF Servo horn x 1



DS525M Digital Servo(OLD HSD52001)

(200000607)

SKU 200000607
Brand Align
