Instruction:



●Higher performance superiority, increased output torque, faster reaction time, resulting in higher holding power on those momentary pauses in between 3D maneuvers, providing precise control feel.
●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●Hardened high strength super alloy gears that increase the lifetime.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 600/700 swashplate and rudder use.



Specification:



●Stall torque:10.4kg.cm(4.8V)
12.8kg.cm(6.0V)
●Motion speed:0.09sec/60°(4.8V)
0.07sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:40.1 x 20.1 x 37.3mm
●Weight:56g
●1520μs standard band

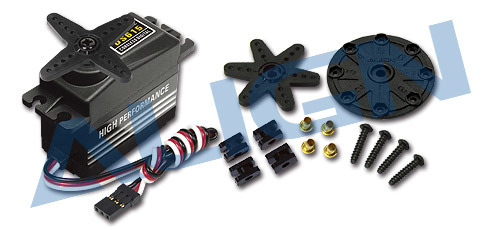

Accessories:


●Servo rudder piece x 2
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Socket button head tapping screw × 4(T2.6x12mm)
●F Servo horn x 1



DS615 Digital Servo

(200000433)

SKU 200000433
Brand Align
