Instruction:


●Ultra-speed servo for instant tail control reaction. (0.05sec/60 deg).
●Ultra Performance Coreless Motor with fast reaction and low current.
●Hardened high strength superalloy gears that increase the lifetime.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 600/700 rudder use.



Specification:



●Stall torque:4.5kg.cm(4.8V)
5.5kg.cm(6.0V)
●Motion speed:0.06sec/60°(4.8V)
0.05sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:40.1 x 20.1 x 37.3mm
●Weight:56g
●1520μs standard band

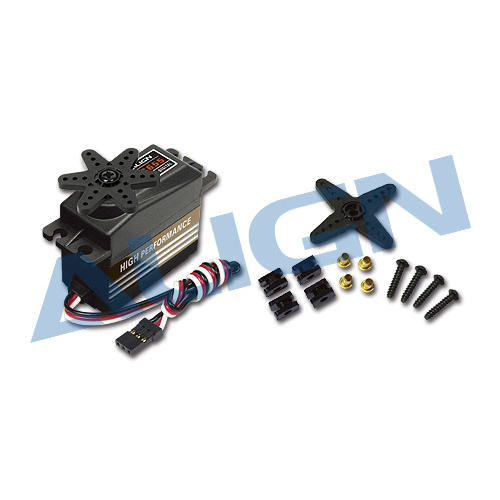

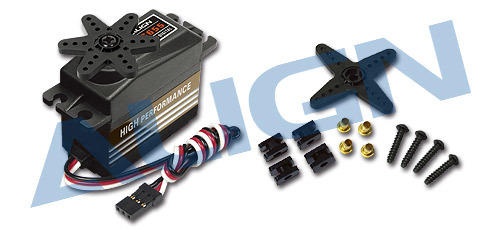

Accessories:


●Servo rudder piece x 2
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Socket button head tapping screw × 4(T2.6x12mm)



DS655 Digital Servo

(200000434)

SKU 200000434
Brand Align
