Product Information

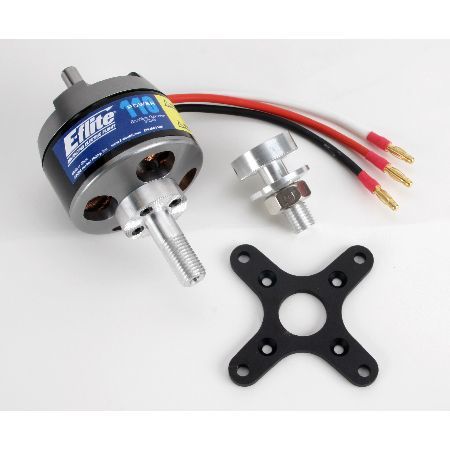

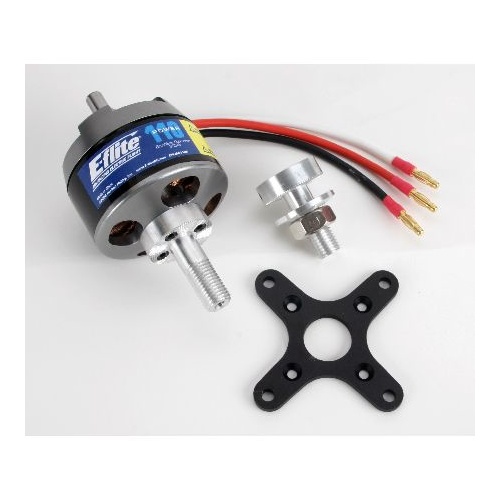

The Power 110 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 110-size 2-stroke glow engine for sport and scale airplanes weighing 9 to 15 pounds (4 to 6.8 kg), 3D airplanes up to 11 pounds (5 kg), or models requiring up to 2000 watts of power.

It will provide excellent performance in the new Hangar 9 Funtana X 100 ARF or ShowTime 4D 90 ARF. The Power 110 provides perfect power for the Ultra Stick Lite 120 ARF.

Overview

Ideal for 110-size sport and scale aircraft weighing 9–15 pounds (4–6.8 kg), 3D airplanes up to 11 pounds (5 kg), or models requiring up to 2000 watts of power.

Features

  • Equivalent to or surpassing the power of a 110-size 2-stroke glow engine for 9–15 lb (4–6.8 kg) airplanes
  • Ideal for 3D airplanes up to 11 lb (5 kg)
  • High-torque, direct-drive alternative to inrunner brushless motors

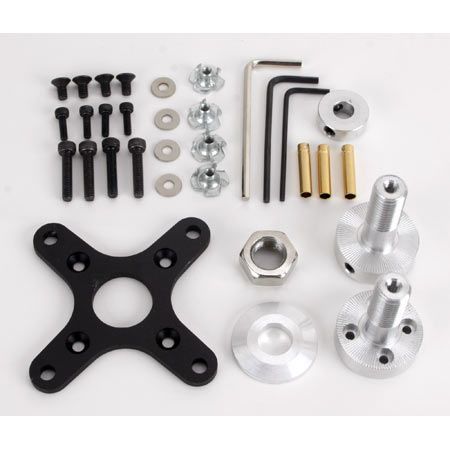

  • Includes mount and mounting hardware
  • High-quality construction with ball bearings and hardened 8mm steel shaft
  • Includes two 12mm prop shaft adapters tapped out for 10–32 threads
  • Ideal for models requiring up to 2000 watts of power
  • External rotor design for better cooling
  • Slotted 14-pole outrunner design


What you need

85A HV brushless ESC
8S–9S Li-Po or 24- to 32-cell Ni-MH/Ni-Cd
17x8 to 19x10 prop

Specs

Type
Brushless outrunner
Size
Equivalent to or surpassing the power of a 1.10 size 2-sroke glow engine
Bearings or Bushings
One 8 x 19 x 6mm Bearing, and Two 8 x 16 x 5mm Bearings
Wire Gauge
13
Recommended Prop Range
17x8 to 19x10
Voltage
28.2–38.4
RPM/Volt (Kv)
295
Resistance (Ri)
.03 ohms
Idle Current (Io)
1.20A @ 10V
Continuous Current
55A
Maximum Burst Current
65A (15 sec)
Cells
24–32 Ni-MH/Ni-Cd or 8S–9S Li-Po
Speed Control
85A High Voltage Brushless
Weight
490 g (17.5 oz)
Overall Diameter
63mm (2.50 in)
Shaft Diameter
8mm (.3 in) (Includes two 12mm threaded prop shaft adapters with 1.5 pitch)
Overall Length
54mm (2.10 in)

(800001907)

SKU 800001907
Brand Eflite
