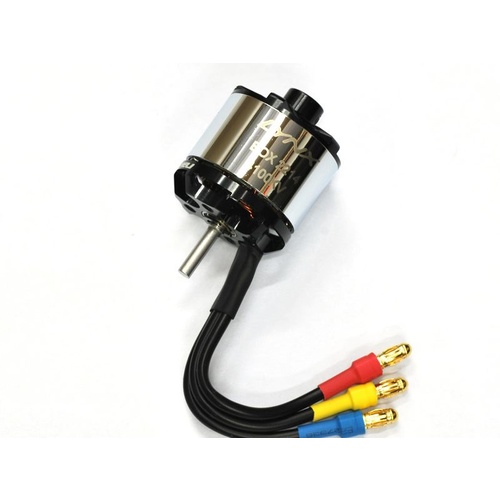

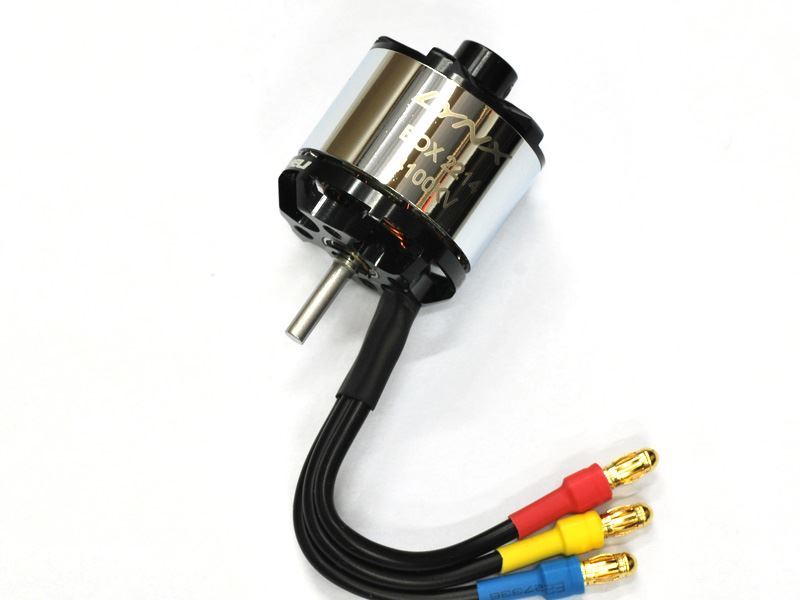

EOX Motor 2214-4100KV - V2

Lynx EOX brushless motors a new generation of high power, high efficiency helicopter motors.

Our new EOX motors will open your eyes to performance.

Developed by Lynx, these motors are perhaps the ultimate helicopter upgrade.

Featuring a single wire coil assembly for the best in efficiency, power and cool running.

High temperature rating Neodymium magnet and high quality material and component graduate EOX motor by Lynx a Limit Edition.

The EOX-2214 - V2 motor is the ultimate powerhouse for your 300X. The V2 edition is designed to increase the Max Output Power and work with 3S and 4S.

The high quality of all components and material used, as the choice of a special single wire rewind system grade this motor as a Limited Edition

We introduce 3 Radial Bearign shaft supportand 100% Factory fine motor balancing for the ultimate motor consistency and vibe free.

Overall dimension was designed to fit in the standard 300X frame without touch battery or servo.

EOX 2214 - V2 is sale with standard 300X cable connector plugs.

So the next time you want to upgrade your helicopter – think Lynx EOX!



TECHNICAL SPECIFICATION:

Motor Kv 4100KV
Max Lipo Cell 4s  (16.8 MAX INPUT VOLT)
Stator Diameter 22 mm
Stator Length 14 mm
No. of Stator Arms 9
No. Magnet Poles 6
Single Wire Diam. 0.35 mm
Max Continuous Current 35A
Max Continuous Power 545W
Weight 61.5g - with wire and pin
Outside Diameter 28 mm
Body Length 22.3 mm
Shaft Diameter 4mm - 3 Bearign Support
Pinion Shaft Diameter 3,17 mm - With Lock Surface
Overall Shaft Length 46.7 mm
Motor Timing 5deg
Drive Frequency 8kHz



PACKING LIST:

1 x EOX 2214 - V2 Motor with preinstalled conector plug

4 x Hex Cup Screw M3x10



IMPORTANT USER INFORMATION:

The EOX-2214 - V2 motor is the ultimate powerhouse for your 300X. The V2 edition is designed to increase the Max Output Power and work with 3S and 4S.

The high quality of all components and material used, as the choice of a special single wire rewind system grade this motor as a Limited Edition

Be careful to handle Lynx EOX motor to avoid personal injury, and install the motor following the need of your heli.

(200001086)

SKU 200001086
Brand Lynx Innovations
