EZRUN-150A-SL-PRO Brushless ESC Speed Controller For 1/5 1/8 RC Car

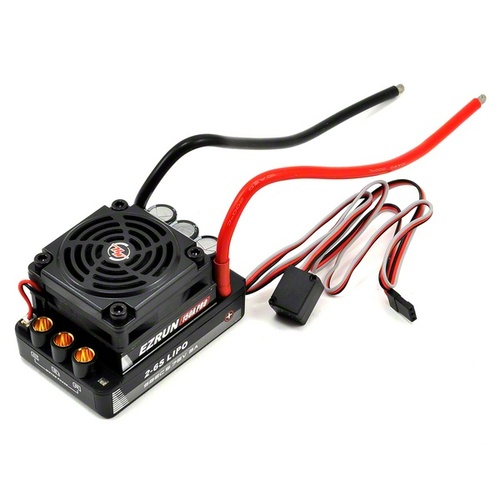

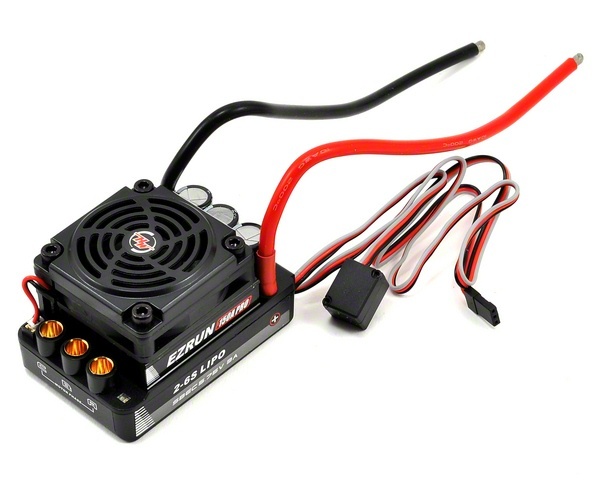

This is the Hobbywing EZRun 150A Pro Sensorless Brushless ESC. Got a large scale? The EZRun 150A has you covered! Perfect for 1/5 scale on- and off-road sport, 1/8 scale on- and off-road sport and finally 1/5 scale nitro/gas powered vehicle you want to convert to electric (such as the Baja series). Not necessarily built for competition, the EZRun 150A Pro is a feature packed sport ESC sure to provide big fun at your local field or backyard.



Features:

Compatible with sensorless brushless motors and most of sensored brushless motors (work in sensorless mode).

Excellent start-up, acceleration and linearity features.

Built-in switch mode BEC has powerful output to supply all the electronic equipments.

Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.

Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

Internal timing can be changed easily to make the ESC suitable for various of motors.

Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.

ESC firmware can be updated through the USB adapter in the LCD Program Box .



Specifications:


Output: Continuous 150A, burst 1080A.
Input: 6-18 cells NiMH/NiCd or 2-6S LiPo. (When using 2S lipo or 6 cells NiMH, an UBEC or seperate battery is strongly recommended to supply the receiver)
BEC: 5.75V/3A (Switch mode built-in BEC).
Resistance: 0.0002 Ohm.
Motor Supported: Sensorless brushless motors.
Suitable Motor: KV<=2500. * Note #1
Suitable Car: 1/5 and 1/8 scale on-road or off-road sport.
Size: 79mm(L) * 52mm(W) * 46.5mm(H).
Weight: 150g (Without wires).


* Note #1: This listed KV value is available for 4274 sized brushless motor (Ø=42, L=74)



(600000808)

SKU 600000808
Brand Hobby Wing
