EZRUN B6(60A+9T+LED) Combo 4300Kv Brushless Motor+ v2 ESC for 1:10 RC car/truck/buggy

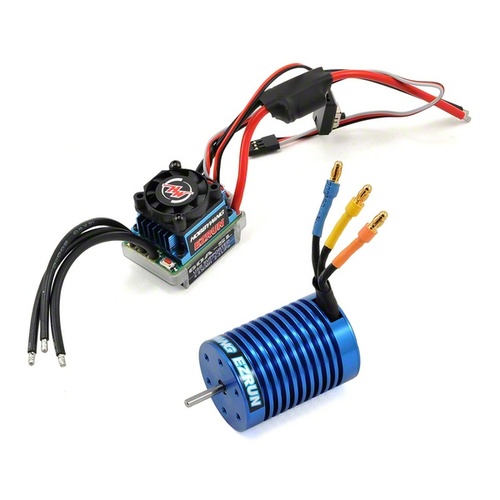

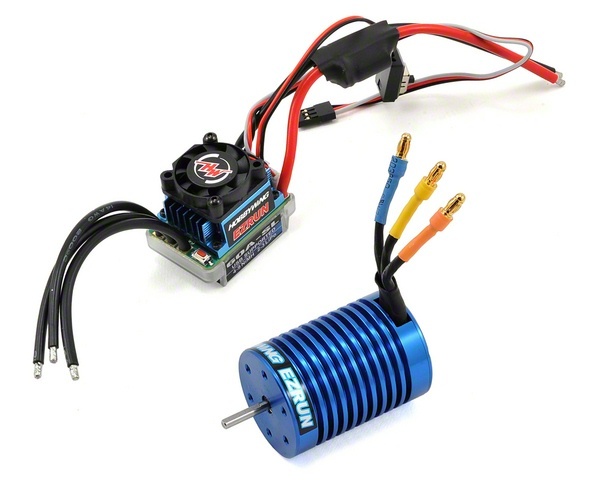

This is the Hobbywing EZRun 60A Sensorless Brushless ESC and Motor Combo, with included Program Box. This combo combines a 60A sensorless/brushless ESC with a 9.0 Turn, 4300kV sensorless/brushless motor suitable for 1/12 and 1/10 scale on-road and off-road sport applications. In addition, a Hobbywing LED Program Box is included to support programming adjustments.



Features:



Compatible with sensorless brushless motors

High quality components, big current endurance

Excellent start-up, acceleration and linearity features

Plenty of programmable items, suitable for various of chassis's, tires and racing tracks

Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection

Internal timing can be changed easily to make the ESC suitable for various of motors

Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software

ESC firmware can be updated through the USB adapter in the LCD Program Box

Top quality motor: Aluminum shell (case) High quality magnets Copper wires of high temperature endurance Good quality bearings



ESC Specifications:


Output: Continuous 60A, burst 380A.
Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
BEC: 6V/1.5A (Linear mode built-in BEC).
Resistance: 0.0007 Ohm
Motor Supported: Sensorless Brushless Motor


Suitable Motor:

With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road≥5.5T, Off-Road≥8.5T;

With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road≥8.5T, Off-Road≥13T;



Suitable Car: 1/12 and 1/10 on-road and off-road sport.
Size: 31.5mm(L)x27.5mm(W)x24mm(H).
Weight: 32g (Without wires)



Motor Specifications:


kV: 4300
Motor Diameter: 36mm
Motor Length: 50mm
Shaft Diameter: 3.17mm
Shaft Length: 15mm
Weight: 170g

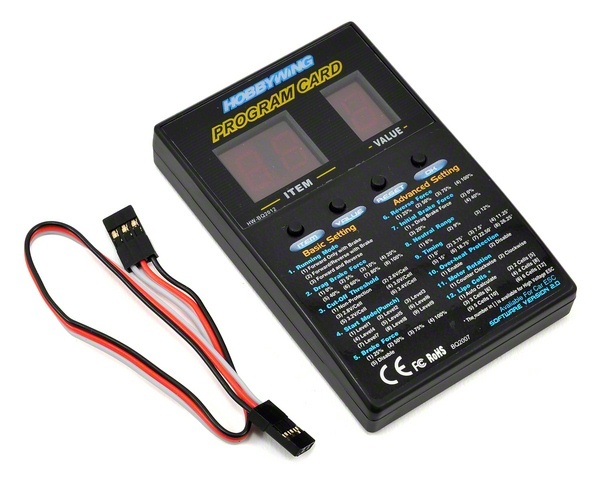

LED Program Box:


Size: 88mm*58mm*14mm
Weight: 40g
Input Voltage: 4.8-6V



Includes:

EZRun 60A Sensorless Brushless ESC

EZRun 3650S 9T/4300kV Sensorless Brushless Motor

Led Program Box



(600000810)

SKU 600000810
Brand Hobby Wing
