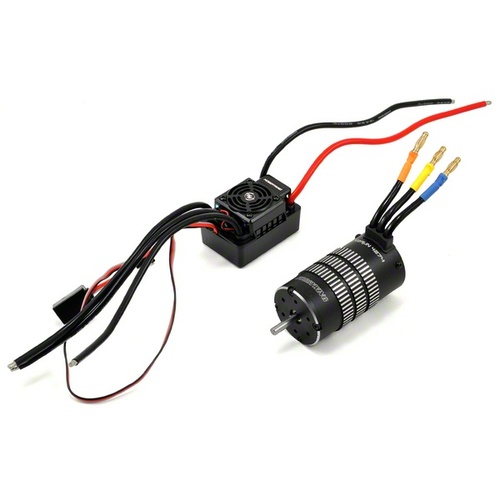

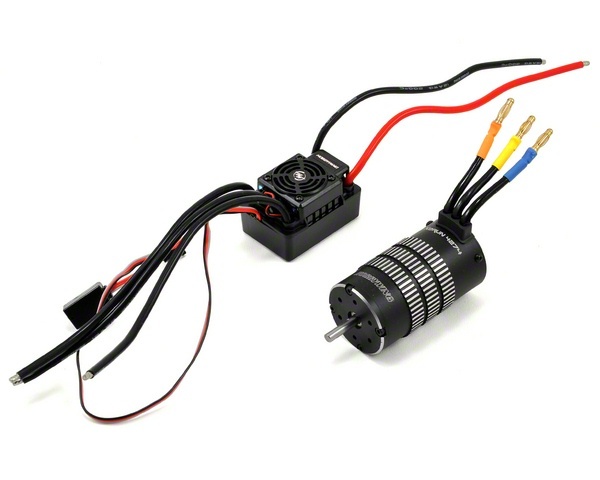

EZRUN SC-C4(WP-SC8+4274-Lite+LED) Combo Waterproof Esc, 2000KV Motor

This is the Hobbywing EZRun SC8 Waterproof Brushless ESC & 1/8 Scale 2000kV Motor Combo, with an included Programmer Box. This all-in-one solution provides a waterproof power system great for sport short course, buggy or monster truck applications. This combo includes an ESC built to withstand 1/10 and 1/8 scale abuse, but a motor best suited towards 1/8 scale applications. And for the additional ease, this combo also includes a friendly programer box with an easy-to-use interface.

Features:

Most suitable for short course trucks and buggies.

ESC is completely water-proof and dust-proof.

Powerful built-in switching mode BEC.

Excellent start-up, acceleration and linearity features.

Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.

Electric brake function, also compatible with mechanical disc-brake system.

Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

Internal timing can be changed easily to make the ESC suitable for various of motors.

Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.

Special program port for easily setting the ESC.

ESC firmware can be updated through the USB adapter in the LCD Program Box.Mounting stand for installing the ESC on chassis easily and firmly.

Top quality motor: Aluminum shell (case) High quality magnets Copper wires of high temperature endurance Good quality bearings

4 poles motor has very high efficiency and big power output.

ESC Specifications:

Output: Continuous 120A, burst 760A;
Input: 6-12 cells NiMH/NiCd or 2-4S Lipo;
BEC Output: 6V/3A (Switching mode), *See Note #1 Below
Resistance: 0.0004 Ohm
Motor Supported: Sensorless Brushless Motor

Suitable Brushless Motor:

With 6 cells NiMH/NiCd or 2S Lipo: KV≤6000;With 7-9 cells NiMH/NiCd or 3S Lipo: KV≤4000;

With 10-12 cells NiMH/NiCd or 4S Lipo: KV≤3000;

Suitable Car: 1/10 4WD SCT, 1/8 2WD and 4WD buggy/SCT (Include TRAXXAS 1/10 SCT)
Size (LxWxH): 59x38x34mm
Weight: 113g

*Note #1: The cooling fan of EZRUN-WP-SC8 is powered by the built-in BEC.

Motor Specifications:

kV: 2000
Diameter: 42mm
Length: 74mm
Shaft Diameter: 5
Shaft Length: 18.5
Resistance: 5.3
Weight: 371g
Max Input Voltage: 26V
Power (W): 1300W

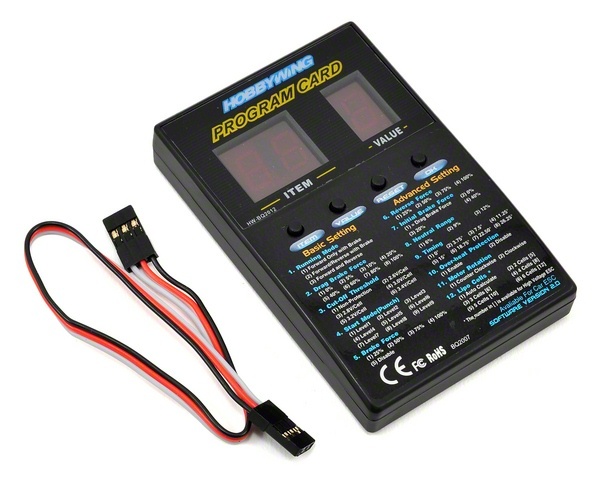

Program Box Specifications:

Size: 88x58x14mm
Weight: 40g
Input Voltage: 4.8-6V

Includes:

(1) EZRun-WP-SC8 Electronic Speed Control

(1) XERUN-4274SL-Lite 2000kV Sensorless Brushless Motor

(1) LED Program Box
