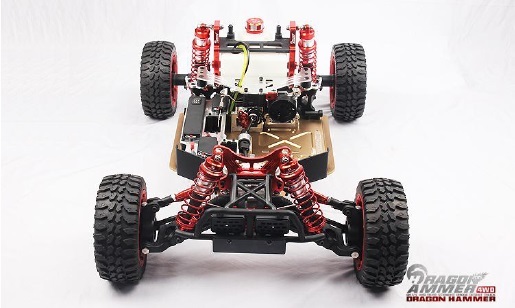

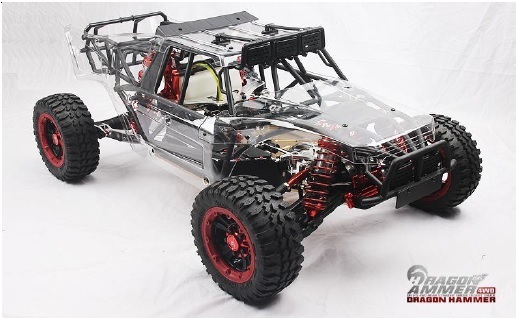

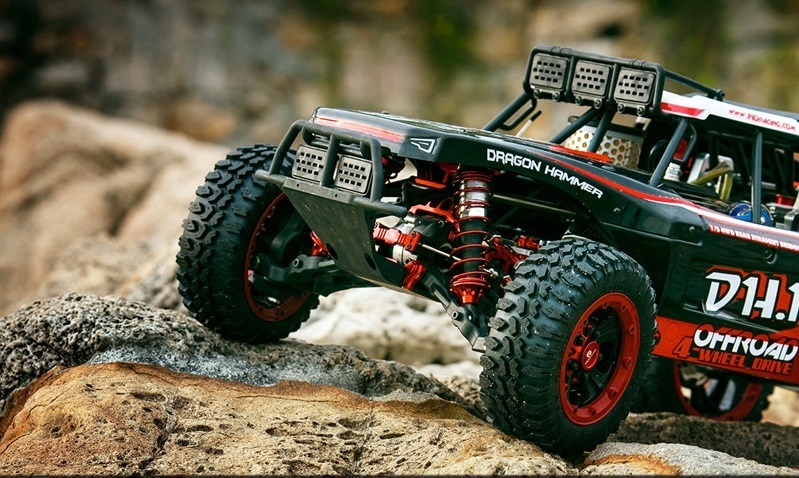

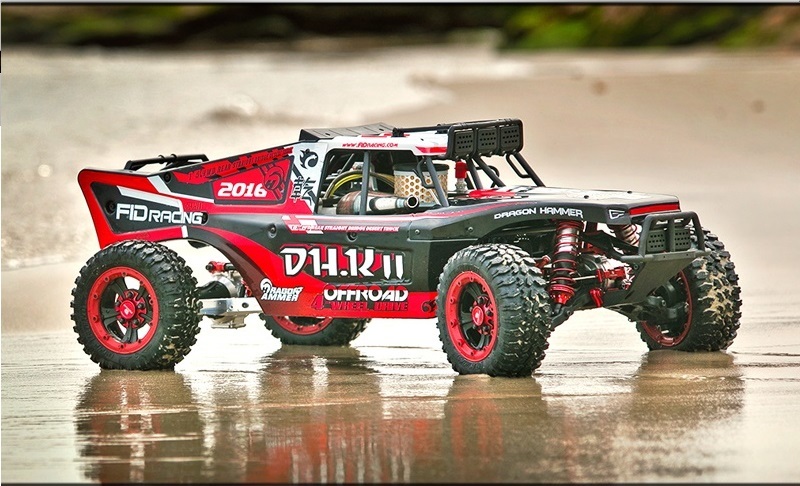

FID Dragon Hammer V2 (Roller Version)

This is a pre order item, layby and Zip Pay options available, call or email for more info.

Specification:
L*W*H: 950mm X 540mm X 355mm
Length: 931.6mm
Wheelbase: 616.5mm
Front tire track: 457.4mm
Rear tire track: 461.4mm
Max speed: 75km/h
Big chassis: 5mm 6061-T6
7mm Thick Shock Shafts
235mm Long CNC Alloy Bodied Rear shock Absorbers(225mm Hole to Hole)
185.5mm Long CNC Alloy Bodied Front shock Absorbers (175mm Hole to Hole)
61 Tooth Steel Main Spur Gear
20 Tooth Steel Pinion Gear

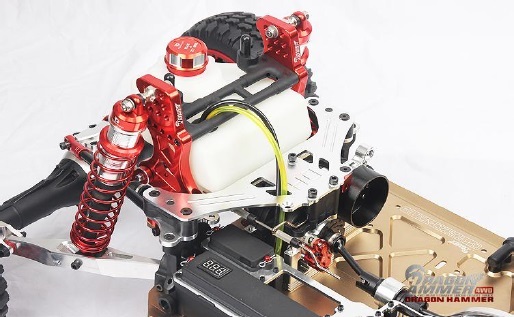

Fuel tank capacity:750ml

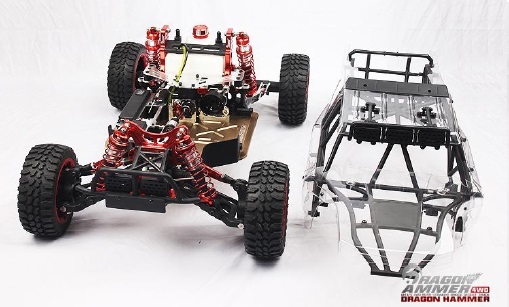

Body shell: CLEAR, With 2 Full Livery Sticker Sheets
Alloy front/middle/rear differential gear box
Off-Road tyres:179x75mm

More than half parts are alloy parts
RTR Net weight: 18.5kg Gross weight:24kg
Engine Radio Gear and battery are not included
Carton size:101*60*41CM

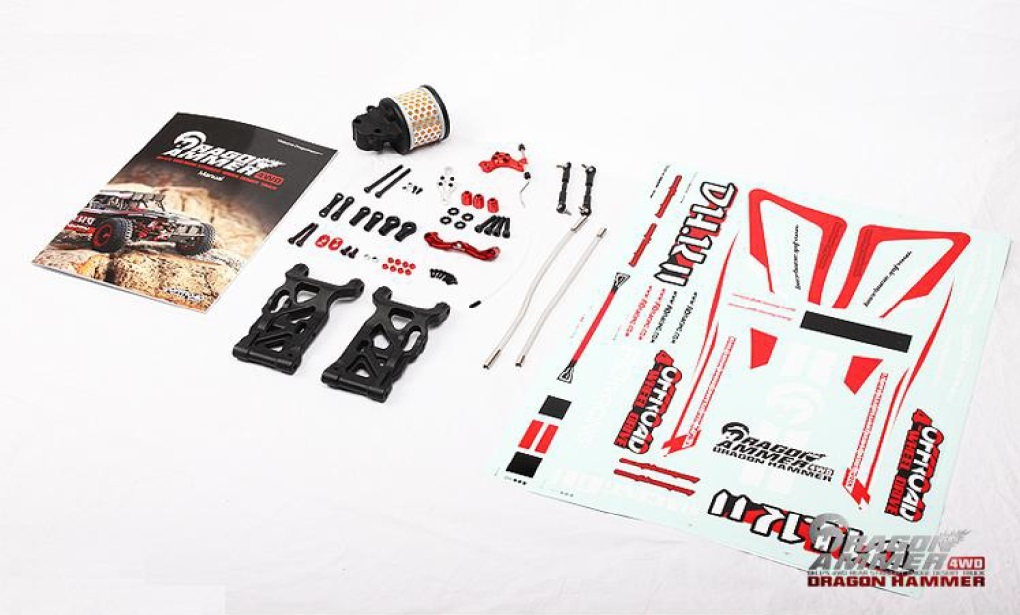

Included in the Build:

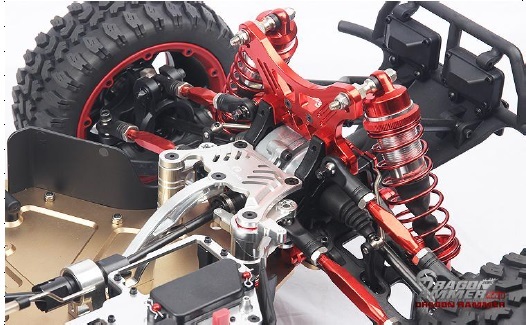

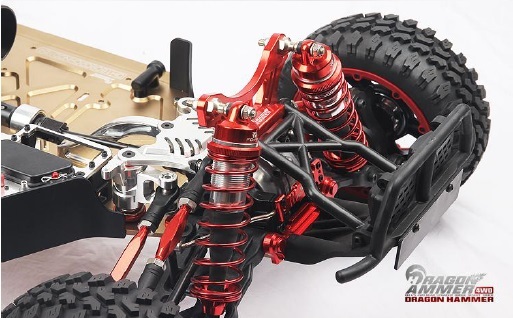

Billet Alloy Front Shock Tower
Billet Alloy Rear Shock Towers
Billet Alloy Front Swaybar Brace
Billet Alloy Front Bumper Mount
Billet Alloy Front Top Plate
Billet Alloy Front Diff housing

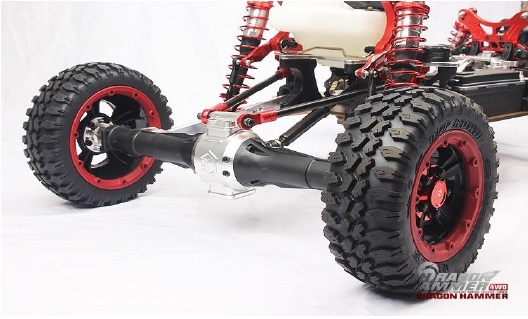

Billet Alloy FULL Centre Rear Axle Diff Housing
Billet Alloy Front Chassis Brace
Billet Alloy Full Steering Set Up
Billet Alloy Center Bearing Holder
Billet Alloy Full Center Diff Tower & Brake Calipers
Billet Alloy Pinion Holder/Engine Mount
Billet Alloy Small Engine Brace
Billet Alloy Rear Swaybar Arm
Billet Alloy Shock Caps All Round
Billet Alloy Trailing Arms
Billet Alloy Upper Four Link Ends With Rose Joints
Billet Alloy Fourlink chassis mounts
Billet Alloy Fuel Cap & Filler Neck
Billet Alloy Extended Wheel Hexes & Caps
Billet Alloy Radio Tray Plate
Billet Alloy Rear Top Plate
Alloy Turnbuckles
Alloy Small Engine Mount
Alloy Adjustable Throttle & Brake Linkage Set Up (Including servo Horn 15 Tooth Splines)
Alloy Adjustable Steering Horn, With 'Push Pull' Linkages (15 Tooth Spline)
Alloy Pinion/Clutch Housing To Engine Spacers & Chassis Mount
Alloy Engine Spacer Chassis Plates
Alloy Servo Screw Spacers & Screws
FULL Air Filter Unit (Including Housing, Filter, Top Plate)
Fuel Line 'Anti Pinch' Springs
Bolts for Small Engine Mount
Screws For the Engine to Chassis
Bolts for the Pinion/Clutch Housing/airfilter
Gasket for the Air-filter
2 Full Sheets of Livery Stickers

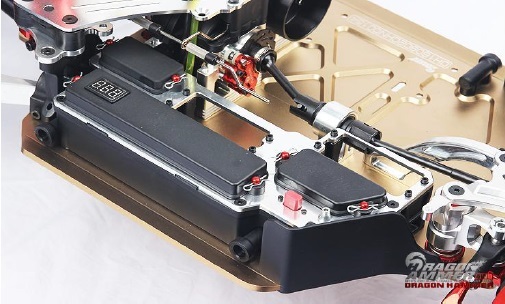

Battery Tray Dimensions:
150mm Long 32mm Wide
40mm Deep, (45mm with the Lid on)

Required to Complete:
Engine (29cc-38cc)
62mm Servo's x2 (Throttle/Brake & Steering)
Radio Gear (Handset & Receiver)
Receiver Battery
Recommended Parts:
3rd Channel Kill-Switch/Failsafe
FID Dragon Hammer Performance Exhaust Pipe (DHNPIPE)

(500001212)

SKU 500001212
Brand FID Racing
Shipping Weight 18.0000kg
Shipping Width 1.010m
Shipping Height 0.410m
Shipping Length 0.600m
Shipping Cubic 0.248460000m3
