FLYBARLESS SYSTEM MOUNT FOR ALIGN TREX 700/800 SERIES HELICOPTERS

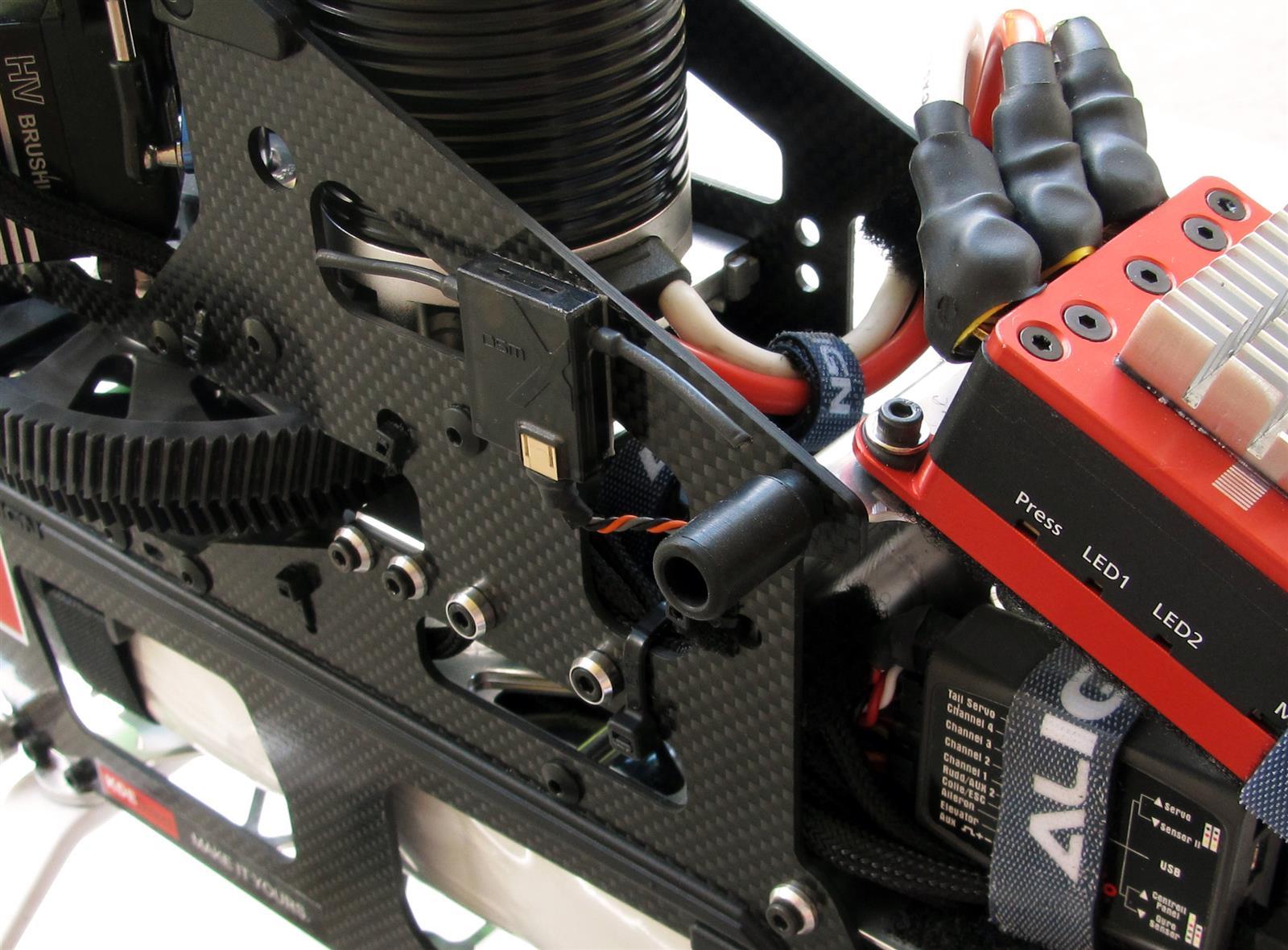

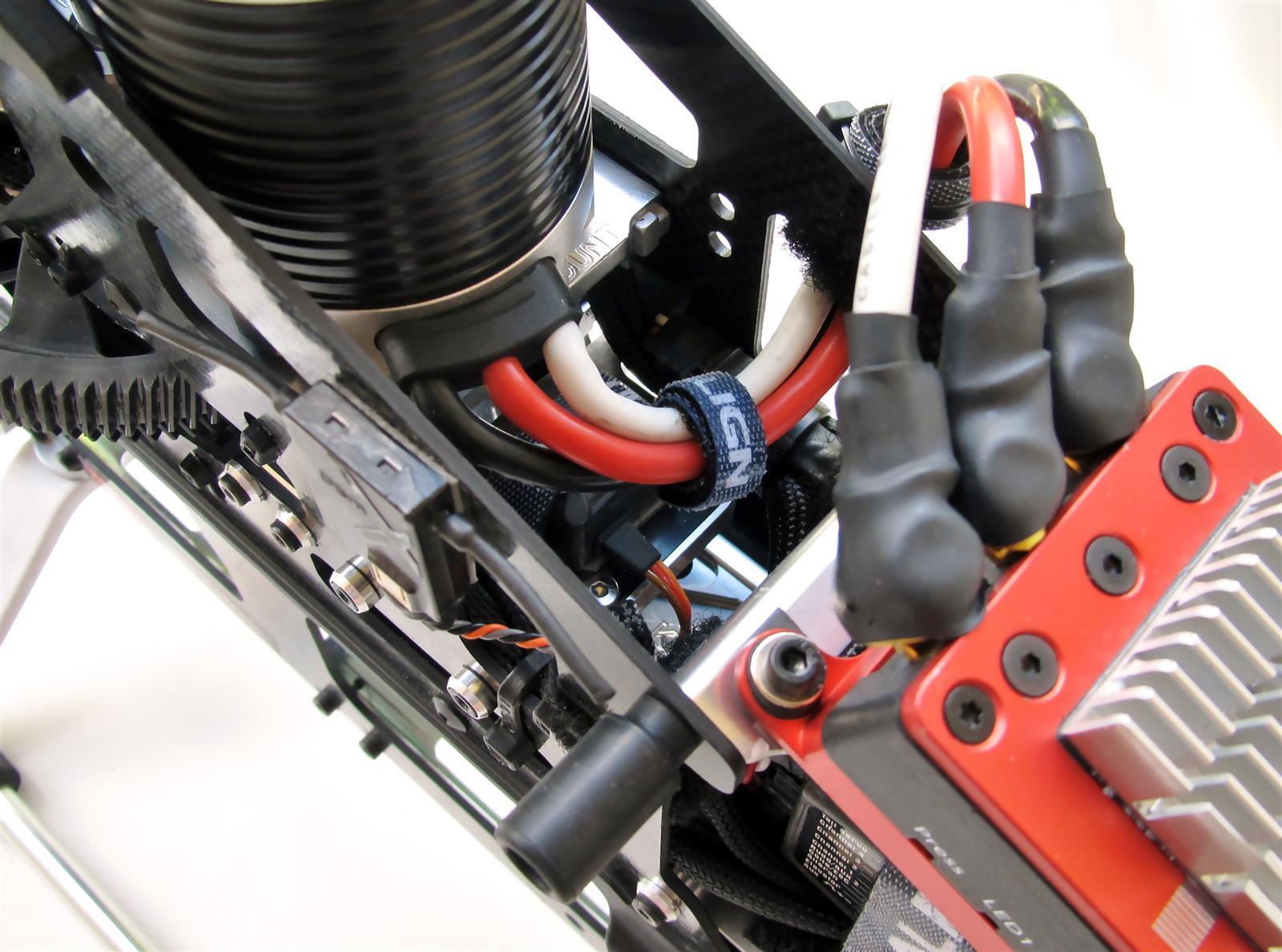

Note: the Flybarless System Mount provides the ideal mounting location for the Flybarless System electronics, with a
location protected internal to the carbon frames and centrally-aligned to the helicopter for optimum control. The new Mount
design allows for larger-class power systems to be used (HV160A+ ESCs) in the TREX 700/800 helicopters, without the
need for canopy modification to achieve proper fit. In addition, the design uses an anti-vibration, ABS mounting surface for
the Flybarless System; supported by a lightweight Aluminum 6061-T6 frame for ultimate strength and Flybarless
optimization. The ABS mounting surface is 29.5 mm wide by 34.0 mm long, providing full support of the ALIGN 3GX,
Mikado VBAR, BeastX/Spektrum AR7200BX, and other common Flybarless controllers.



Important: the upgrade is for the TREX
700/800 series helicopters. To ensure
proper operation, please review the Design
Presentation and Installation Diagram for
assembly details and tips (pdf).

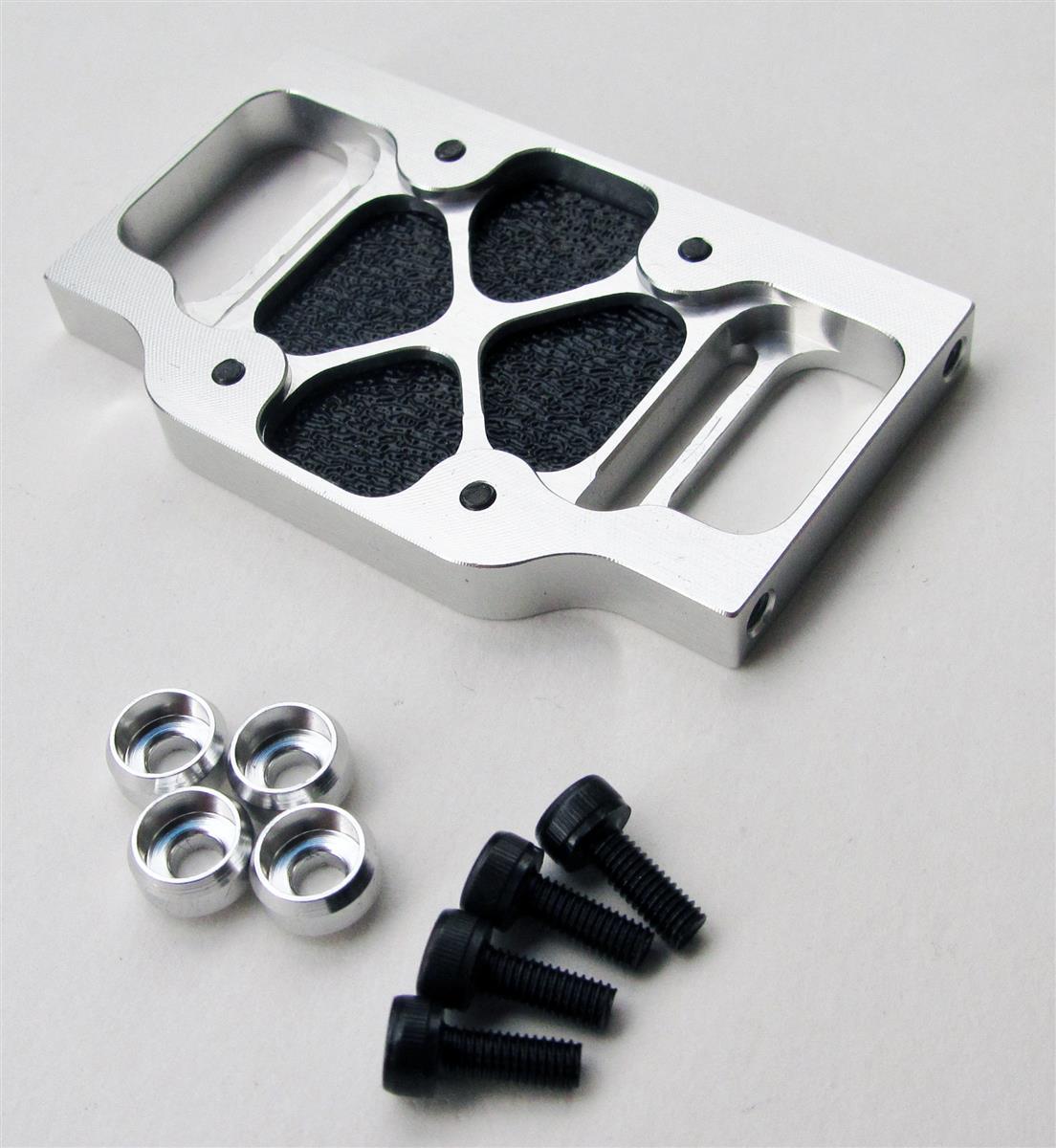

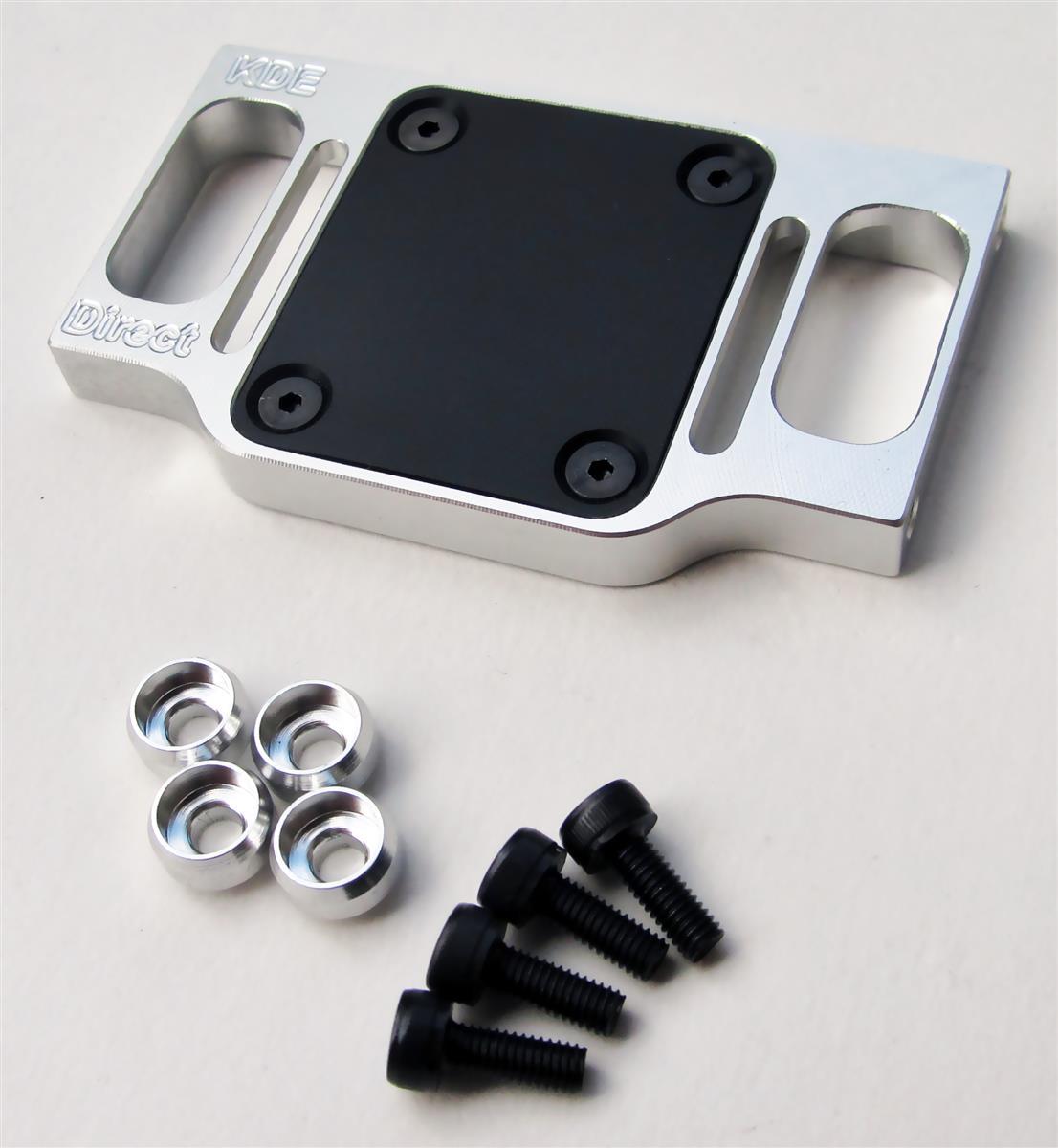

Includes:
- One (1) TREX 700/800 Series Aluminum Flybarless System Mount Base Frame
- One (1) TREX 700/800 Series ABS Flybarless System Mount Mounting Plate
*- One (1) TREX 700/800 Clear Adhesive Drilling Template, Left Frame
*- One (1) TREX 700/800 Clear Adhesive Drilling Template, Right Frame
- Four (4) M2.5 x 0.45 x 6 mm Flat Head Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M3 x 4.5 mm Aluminum Finishing C Washers

* Drilling Template and procedure NOT required for the TREX 700E DFC edition and the Flybarless
System Mount is a direct bolt-in upgrade for the series.



Finish:
Clear anodize, mirror-polish CNC gloss



Weight:
14 g (design is FEA optimized for maximum strength and minimum weight)



Installation Instructions: http://kdedirect.com/files/AT700-FSM_Installation_Diagram2.PDF





(400000934)

SKU 400000934
Brand KDE
