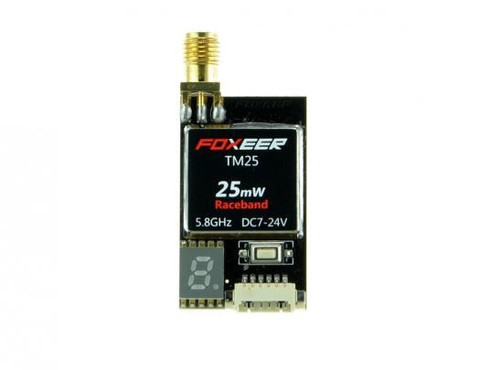

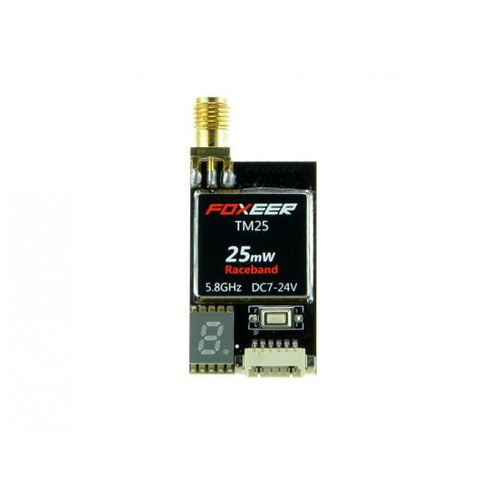

Foxeer TM25 25mW 5.8G 40CH Mini VTX with Race Bands

Don't be a swamp dog at your next meet!

Designed for mini quad racing the super compact and street legal Foxeer 25mw 5.8ghz transmitter weighs in at a tiny 7grams. Excellent anti-interference performance and tiny form factor makes this the must have TX for competitions.

With a flexible 7-24v (2s-6s) input, Regulated 5v camera output - perfect for powering Fatshark, HS1177, CC1570 and a wide range of 5v/Multi voltage FPV cameras.

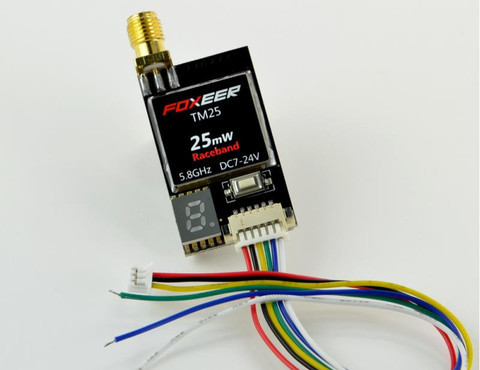

Comes with practical 3 pin jst connector for easy connection to FPV cameras and simple bare wires for soldering the power connection to your PDB.

Equipped with easy to access channel/frequency selector, so at the touch of a button switching between 5.8ghz bands is a breeze. No more scrambling to flick dip switches!

Pair up with a set of  ImmersionRC SMA Spironet antennas for optimum vector free performance.

Features

  • 25mw Transmitting Power
  • Tiny Size
  • SMA Antenna Connector
  • 5V Onboard quiet switching regulator for FPV camera
  • Flexible 7-24v (2s-6s input)
  • Not affected by 2.4ghz Radios
  • Easy channel selection

Specs

  • Transmitter Frequency: 5.8ghz
  • Video Format: NTSC/PAL
  • Output Impedance: 50 Ohm
  • Input Voltage: 7-24V (2s-6s)
  • Output Voltage: 5V
  • Operating Temperature: -10 ~ 85c
  • Video Band Width: 0~8.0 Mhz
  • Audio Carrier Frequency: 6.5 Mhz

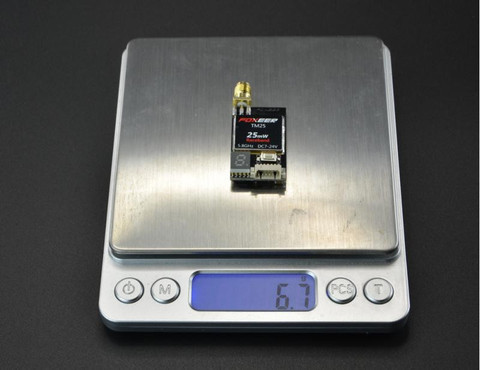

  • Weight 7.0g
  • Dimensions 43mm x 20mm x 7mm (LWH)
  • Antenna Connector: SMA

Included in package

  • Transmitter
  • Cable
  • Instruction manual

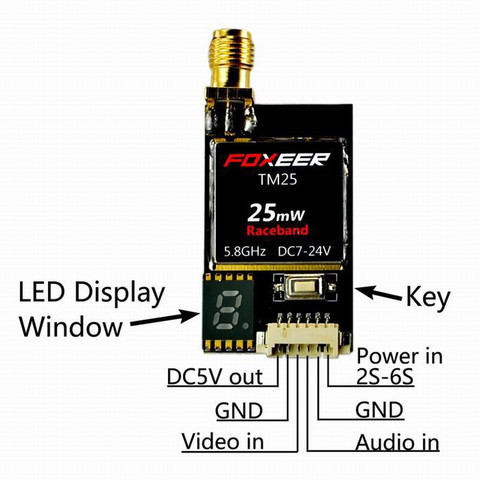

Wire Colour Code:



  • Red:DC 5V out for FPV camera
  • Black: GND for FPV camera
  • Yellow: Video Input from FPV camera
  • Green: Audio Input (not commonly used)
  • Blue: GND for Transmitter (connect to battery/pdb negative terminal)
  • White: 7-24V Power Input for Tranmitter (connect to battery/pdb positive terminal)

Note:



  • Do not power transmitter without appropriate antenna connected - doing so will destroy the unit.
  • Do not connect battery terminal to 5VDC camera out doing so will destroy the unit
  • Always check polarity of 5V connection to camera
