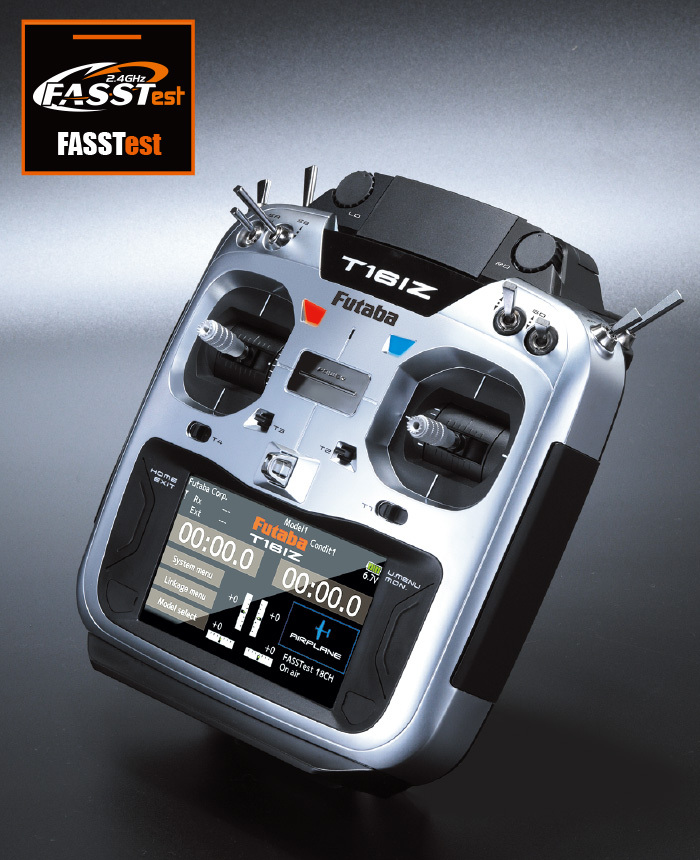

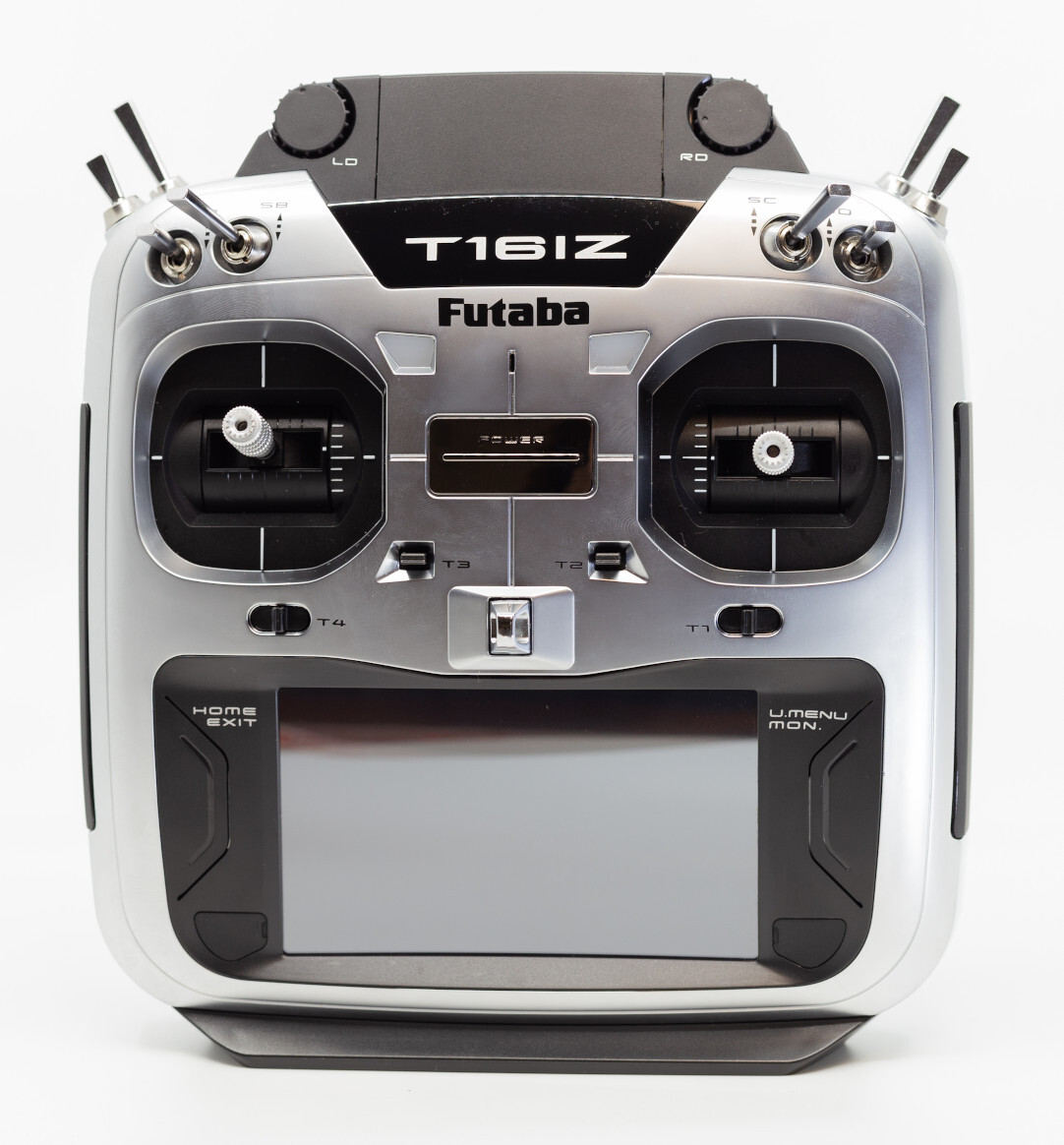

16IZ Transmitter – 18-Channel Computer System


2-Stick, 18-Channel, FASSTest 2.4 GHz System (01004400-1)(01004401-1)(01102348-1)(01102349-1)


FEATURES

FASSTEST SYSTEM:
The 16IZ transmitter adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL:
The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD:
T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.



MULTI HOLDER:

T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry:
The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD):
Model data, music files, voice files, and picture files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:
The internal processor   the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7108SB:
The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

CONTENTS

YOUR T16IZ (PACKAGED WITH A S.BUS RECEIVER) INCLUDES THE FOLLOWING COMPONENTS:

  • T16IZ Transmitter (Air Version includes ratcheting throttle, Helicopter Version includes smooth throttle)
  • R7108SB
  • LT2F2000B Lithium Polymer Battery and USB cable for charging
  • Switch Harness
  • Neck Strap
  • Manual (Printed short version. Find full version here)

TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

OPERATING SYSTEM:
2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

POWER SUPPLY:
7.4 V LT2F2000B Lithium-polymer battery

RF POWER OUTPUT:
100 mW EIRP

WEIGHT (with battery):
TBD



RECEIVER SPECS

R7108SB

SIZE:
24.9 mm x 47.3 mm x 14.3 mm

WEIGHT:
12.0 g

POWER REQUIREMENTS:
6.6 V LiFe Battery

CURRENT DRAIN:
75 mA

RF POWER OUTPUT:
25 mW EIRP

(800002218)

SKU 800002218
Brand Futaba
