Gaui X5 FORMULA Basic Kit Combo (Kit + Motor)



Note: This is a promotional combo! It is available in limited quantities, no back orders will be taken sorry.

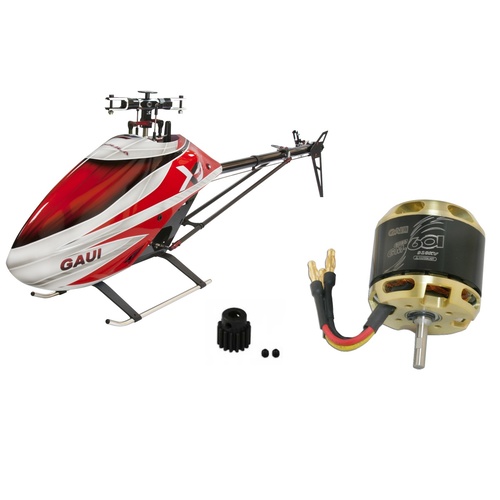

You get the following items when you purchase this combo:
- Gaui X5 FORMULA Basic Kit
- GUEC GM-601 Brushless Motor (1820W-910kv)
- GAUI X5 Steel Pinion Gear Pack (15T - for 5.0mm shaft)
- BONUS FREE Edge 523mm CF FB Blades!



Features

1. New Formula version X5, stylish Black/Red anodized CNC parts.

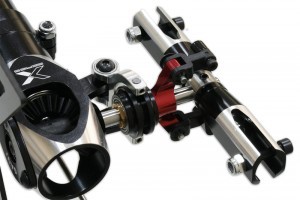

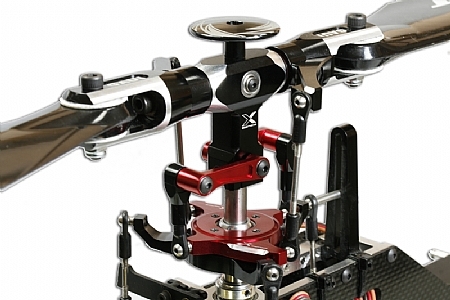

2. New Low CG FORMULA FBL rotor head, Formula Rotor Head is 10mm lower than the
previous standard X5 Rotor head. Increase in flight characteristics of X5.
3. CNC Washout Arm centered on Main Rotor head allowed more precise 3D flight control by pilots.
4. Main blade grip adopts pilot selectable 3 holes design, making it easy to adjust for various flight control reaction to fit each pilot.
5. X Series laser logo with dual color artistic design.
6. 3K CF frame has anti-erosion, anti-thermal expansion, tensile characteristics.

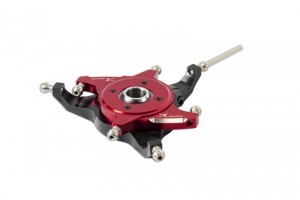

7. Advanced new CNC Swash plate with light weight design.
8. Swash plate gap adjustment and anti-shedding steering linkage ball design.



Content:

X5 FORMULA Basic Kit x 1 set

Tail Rotor Blade Set(82mm) x 1 set
Tail Rotor Blade Set(82mm) x 1 set



Specifications:

Height: 315mm,
Width: 165mm,
Length (including canopy): 1000mm
Weight: 1820g +/-3% (including electronics without battery)
Main Blades: 500 ~ 530mm,
Main blade rotation diameter 1120mm
Tail blade: 82mm,
Tail rotation diameter: 230mm


Power System recommendation:

Motor: 910kV,
ESC: 100A Flight time: 4~5minutes



Required for operation

Transmitter(6-channel or more,helicopter system)
Receiver(6-channel or more)
LiPo Battery: 6S1P(22.2v/4200mah / size:48x44x135mm)
ESC: 100A+ ESC recommended
Flybarless Unit: Gaui Mini V-bar is suggested
Cyclic Servos: 3x Standard size cyclic servos
Tail Servo: 1x Standard size tail servo
Main Blades: 520mm Main Blades (or there abouts)



Tools and Equipment for Assembly

1.5 mm Hexagon Screw Driver
2 mm Hexagon Screw Driver
2.5 mm Hexagon Screw Driver
Philips Screw Driver
Lubricant / one-way bearing grease
Spring calipers, Needle-nosed pliers
General thread lock



(300001222)

SKU 300001222
