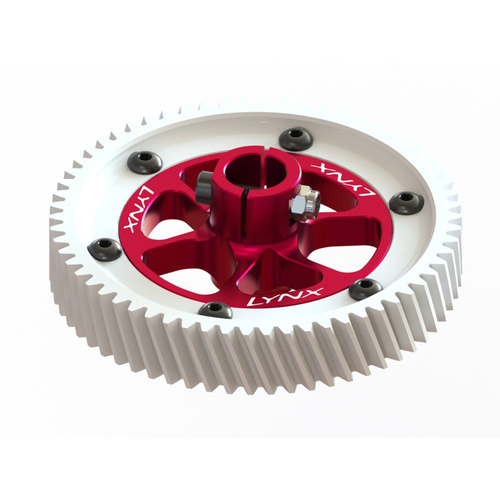

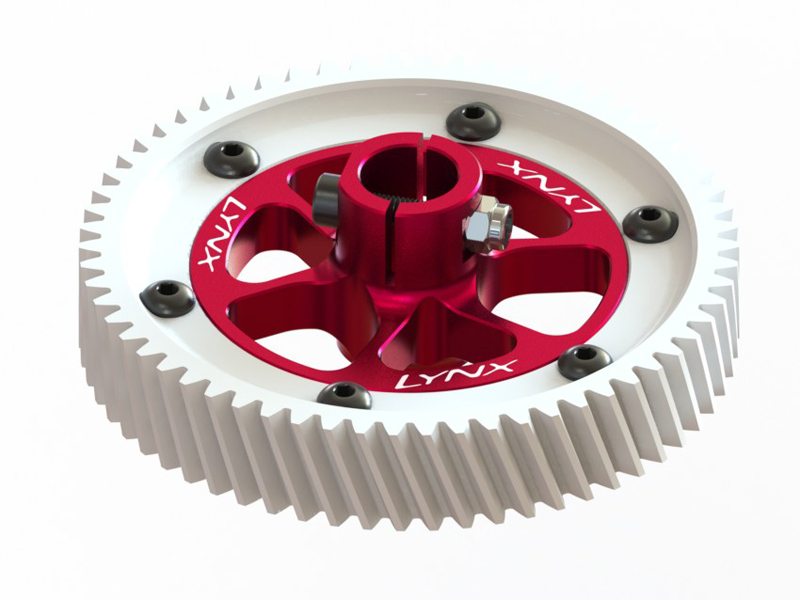

Goblin 500/570 - CNC Ultra Main Gear Set - Red Devil



Lynx Heli Innovations is always looking toward new ideas and solutions.

We redesign the standard Goblin 500/570 main gear, and we made it special.

Lynx Main Gear is composed by two parts, super stiff center hub in aluminum and a replaceable Delrin 100A , CNC Main Gear Ring. The present designs assure the best compromise between geometrically tolerance and strength resistance.



If you enjoy your Goblin 500/570, this main gear upgrade will support you by superior performance and wear resistance, fly after fly for long time!

Lynx Goblin 500/570 Main Gear Ring is produced by CNC operation, using a techno-polymer material with auto-lube features to assure maximum load and friction resistance.

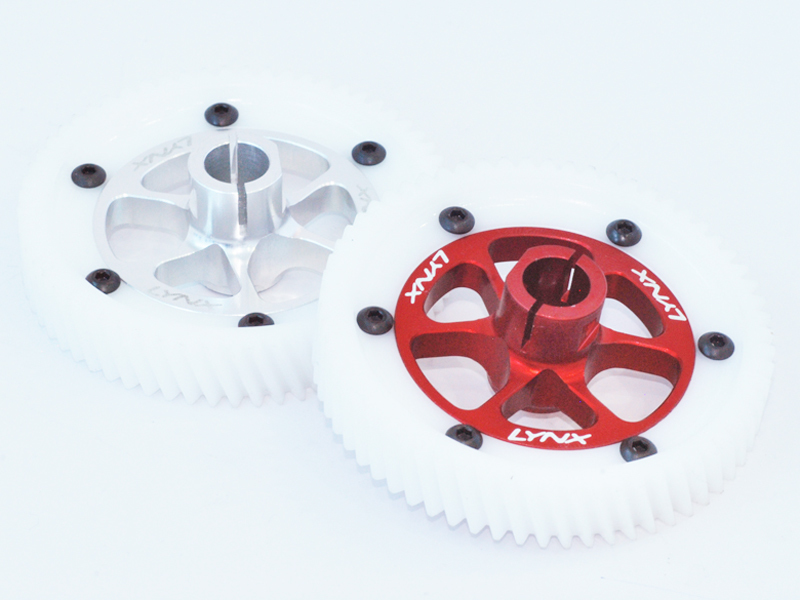

The Lynx Goblin 500/570 main gear come preassembled and the hub is available in 2 colors (silver and red).



FEATURES:

- Increase transmission efficiency

- Optimized lightweight and strength design.

- Superior wears and load resistance.

- Aluminum hub helps heat dissipation generated by high power transmission.

- Direct replacement for standard Goblin 500 parts

- Special design for easy Main Gear Ring replacement

- Design assisted by FEA (Finite Element Analysis) to achieve light weight and maximum strength.



TECHNICAL SPECIFICATIONS:

- Goblin 500/570 Main Gear Center Hub material: Aluminum 7075-T6 – Red anodized finish

- Goblin 500/570 Main Gear Ring material: Delrin 100A - POM - White color

- Hardware material: Carbon steel



PACKING LIST:

1 x G500/570 Ultra Main Gear - Factory Assembled (Red Center Hub + Main Gear Ring + 6 x M3x6 Button Head Cup Screw)

1 x M3x18 Shouldered Hex Cup Screw

1 x M3 Self Lock Nut

(200001017)

SKU 200001017
Brand Lynx Innovations
