Instructions:

1.With 3A BEC Output
2.For RC model electrical equipment diagnostic and measurement use.

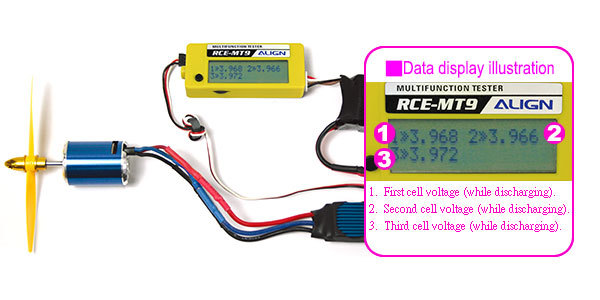

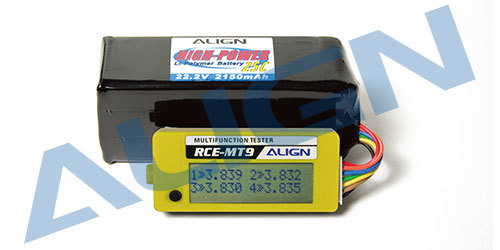

3.High precision display of individual cell voltage for 2 to 8S lithium packs.In addition to individual cell voltage, it also displays total pack voltage as well as percentage of pack's remaining capacity.
4.Displays serial cell count in a pack, as well as highest and lowest cell voltage, and the voltage difference.

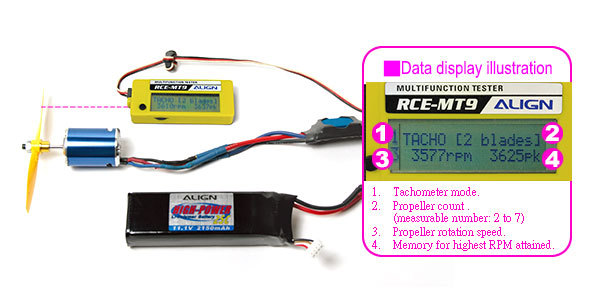

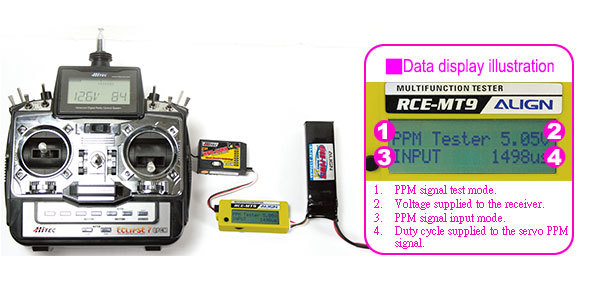

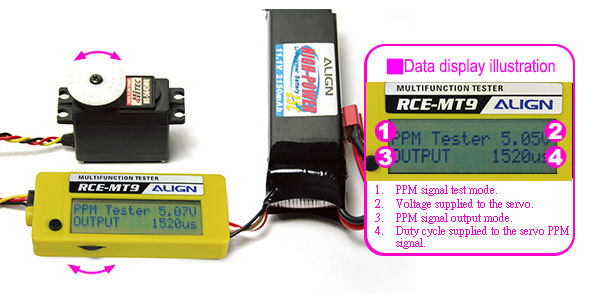

5.Servo diagnostic feature. Displays BEC output voltage and receiver signal output.
6.Digital tachometer to display 2 to 7 propeller rotating speed as well as memory for highest RPM attained.
7.Reverse polarity protection for cell input.



Specification

●Voltage measurement range: 2-8S Lipo/Li-ion.
●Voltage display resolution: 0.001V
●PPM manual signal output 2270us-770us
●PPM automatic signal output: 1520us ±(120-630us)
●Number of propeller measurable: 2 to 7
●Propeller rotating range: 1-60000RPM, measurement distance: 5-15cm
●BEC input voltage range: 4-7v
●With 3A BEC Output

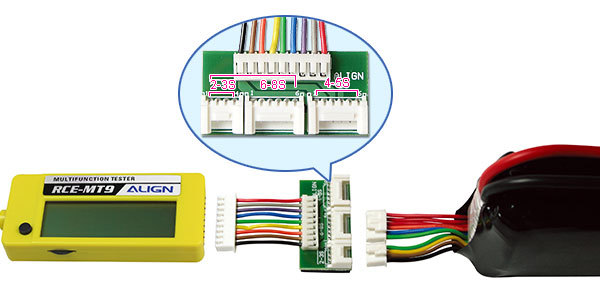

●Battery input terminal spec: 2.5mm pitch pins, compatible with Align compatible balancing plugs.

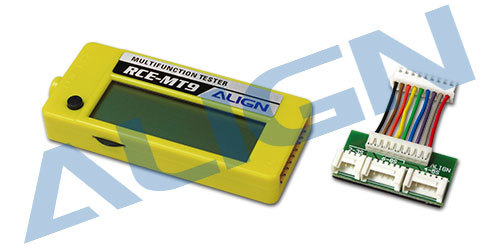

Accessories:
●Balance adapter D x 1
(Compatible with TP balance plug of same specification)

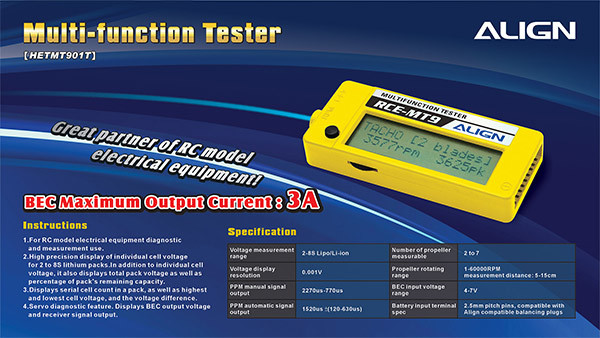

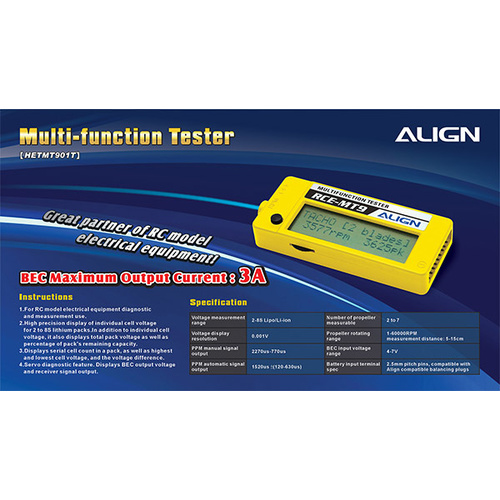

Multi-Function Tester

(200000736)

SKU 200000736
Brand Align
