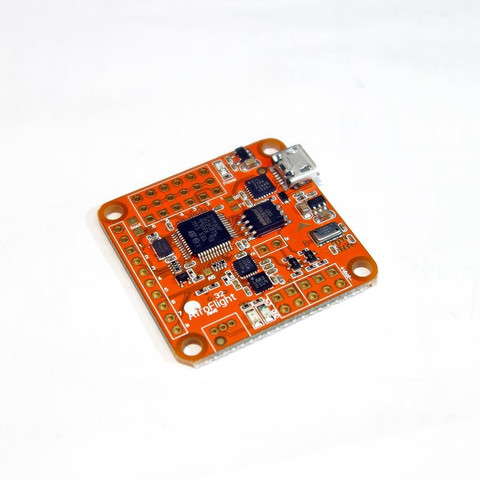

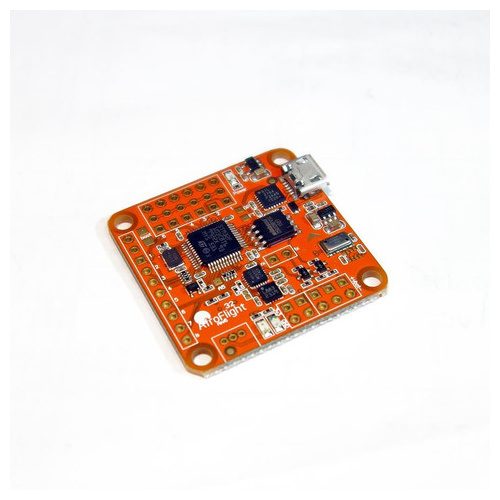

Naze 32 "Full" Flight Controller - Genuine - Naked Board (Pins Supplied) Rev6

Direct from Japan, Designed and made by timecop these are one of the best (if not the best) sport flying flight controller on the market today, it really is an amazing piece of kit for its size and price, though does requires a fair bit of reading to configure and get running correctly.

At the heart of the Naze32 is a 32bit ST micro work horse of a processor, with untapped memory and cpu power and a host of equally impressive sensors. The Naze is also matched up with some of the nicest GUI programs and features to get the most out of your configuration.

This "Full" version is the same as the Acro Naze32 board except the full version comes larger memory (128mbit), the MS5611 barometer and a magnetometer.

Note;

• All boards ship with angled header pins
• Do not connect USB port while powering the board via BEC (disconnect your battery before connecting USB port to your computer)
• Configurable with baseflight via onboard USB connector
• If you would like your board with header pins installed please select from the drop down menu your requirements (note stock is not always available)

• Depending on the batch from timecop they are supplied randomly in either white, black, red, blue, purple or orange
• If you do not have a PPM or SBUS enabled receiver you will need to add a Naze Breakout Cable to your order for the Rev5 - for Rev6 requires a straight 10 pin header instead of 2x5 pin header.
• Note: Rev6 Hex file for cleanflight can be found here

Naze32 Rev6 Features:

• USB on right side
• PPM/PWM input as through-hole
• 3.3V, I2C on standard-size headers
• Fully pinout compatible with rev5 accessories (OSDoge etc)
• SBUS Inverter built in
• Spectrum satellite
• MPU6500
• Sonar pads w/resistors added for direct connection to 5V sonar
• All extra pads (FT, GP, A5) on top, only sonar on bottom
• MS5611 barometer
• 128mbit flash

Specifications

• 36x36 mm (30.5mm Mounting)
• 5.3 grams (no headers, 7.3 grams with)
• 2000 degrees/second 3-axis MEMS gyro + accelerometer (MPU6500)
• Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line

 Rev5 Specifications (no longer available)

• 36x36 mm (30.5mm Mounting)
• 5.3 grams (no headers, 7.3 grams with)
• 2000 degrees/second 3-axis MEMS gyro + accelerometer (MPU6500)
• Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line
• STM32F103CBT6 32-bit ARM Cortex M3 processor (72MHz, 3.3V)
• Invensense MPU6500 MEMS accelerometer + gyro
• BMP280 Barometer
• Built-in Micro-USB for programming/firmware update
• 36x36mm size, ~5 gram weight w/o headers
• Made in JAPAN
• Shipping with 16V input capable voltage regulators
• 36x36 mm
• 5.3 grams (no headers, 7.3 grams with)
• 2000 degrees/second 3-axis MEMS gyro + accelerometer (MPU6050)
• 3-axis magnetometer (HMC5883L)
• Pressure sensor (MS5611)
• Flexible motor outputs, support various airframe types -
• Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal. (Default is Quad-X)
• Up to 8 ch RC input - supports standard receivers (PWM), PPM Sum receiver (FrSky, etc), or Spektrum Satellite receiver.
• Built in FrSky telemetry inverter (shared w/main port)
• Battery voltage monitoring
• Modern 32-bit processor running at 3.3V/72MHz (STM32F103CB).
• 16Mbit onboard SPI flash
• Onboard MicroUSB for setup and configuration
• LEDs so bright, they will blind you
• MultiWii-based configuration software for easy setup
• rev5 hardware
• Fly in manual or self-level altitude-hold mode
• Made in JAPAN
