PERFORMANCE TAIL CONTROL FOR SAB HELI DIVISION GOBLIN 630/700/770 SERIES HELICOPTERS

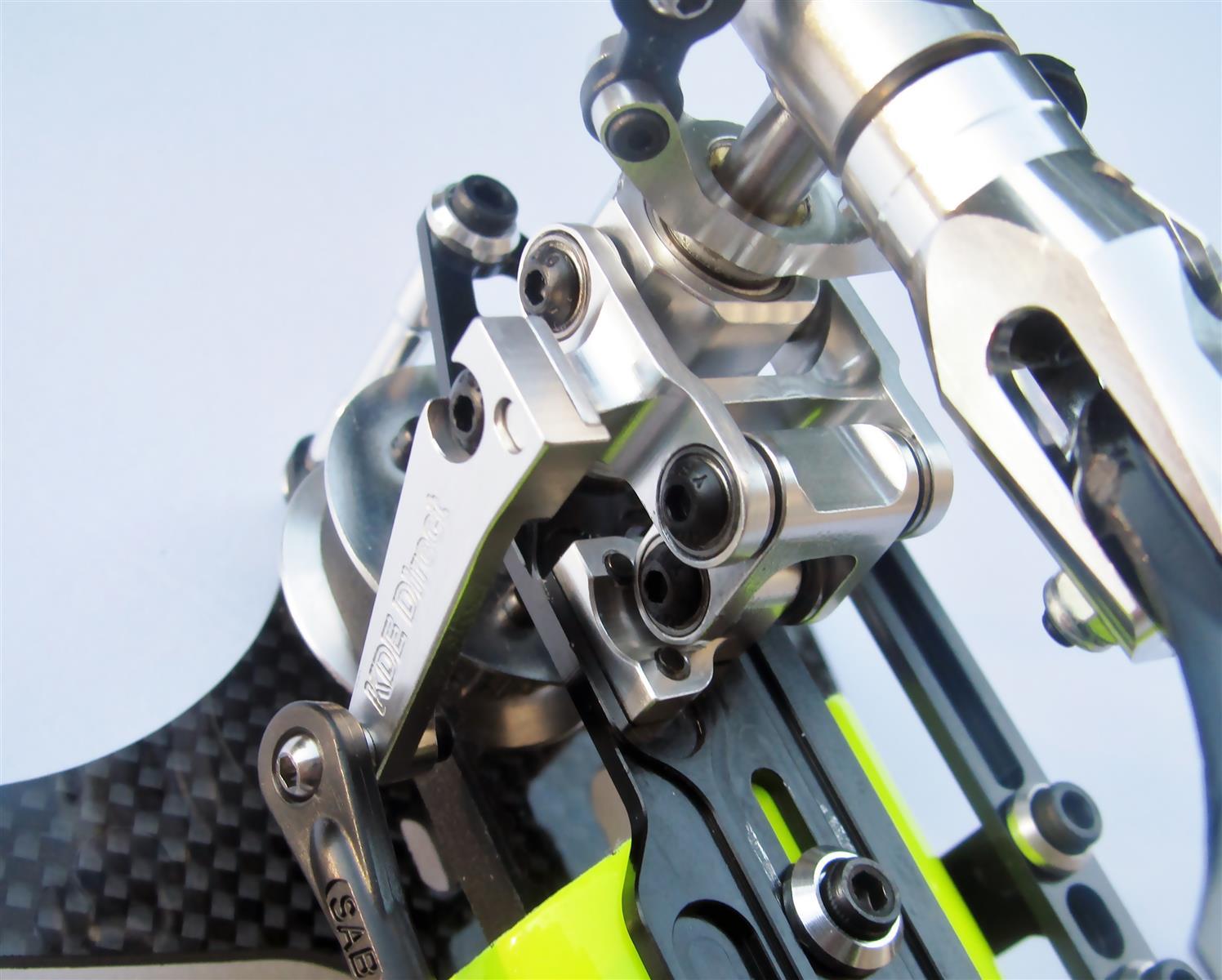

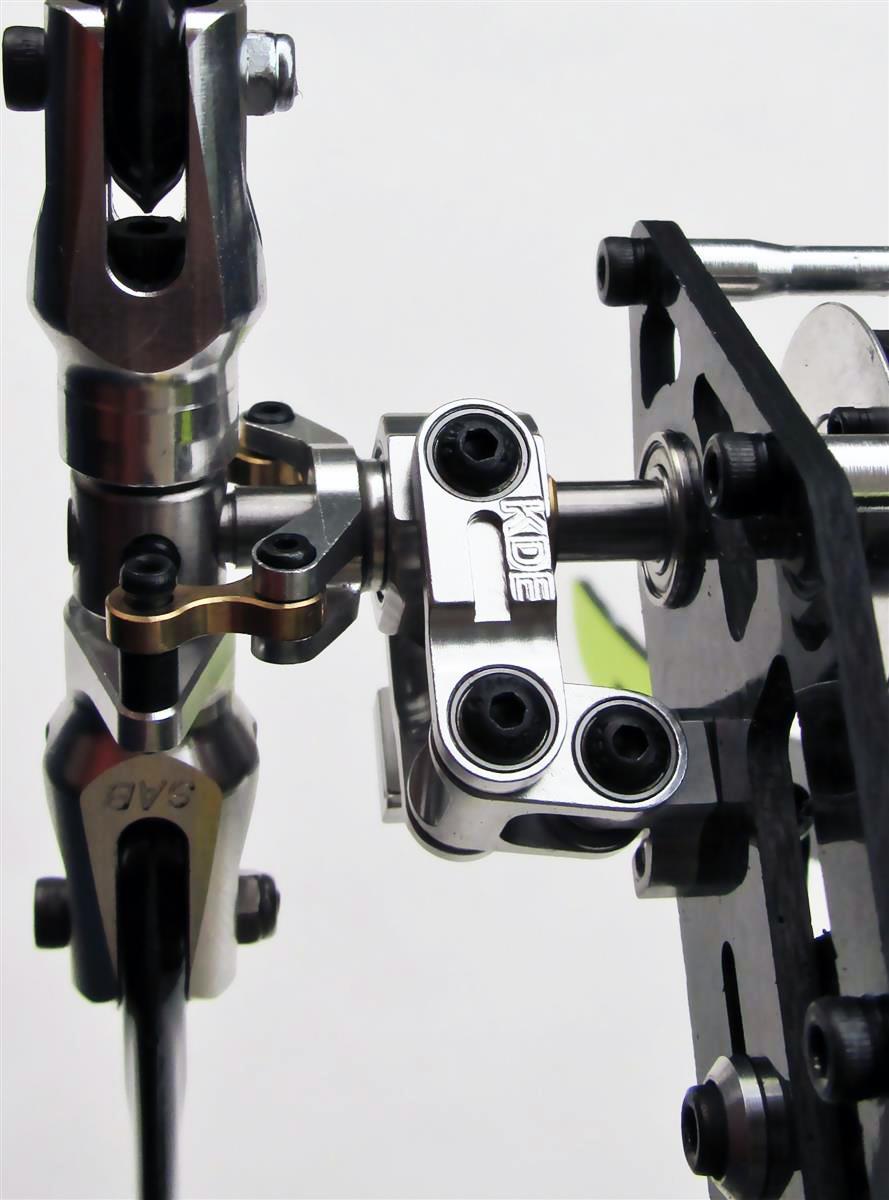

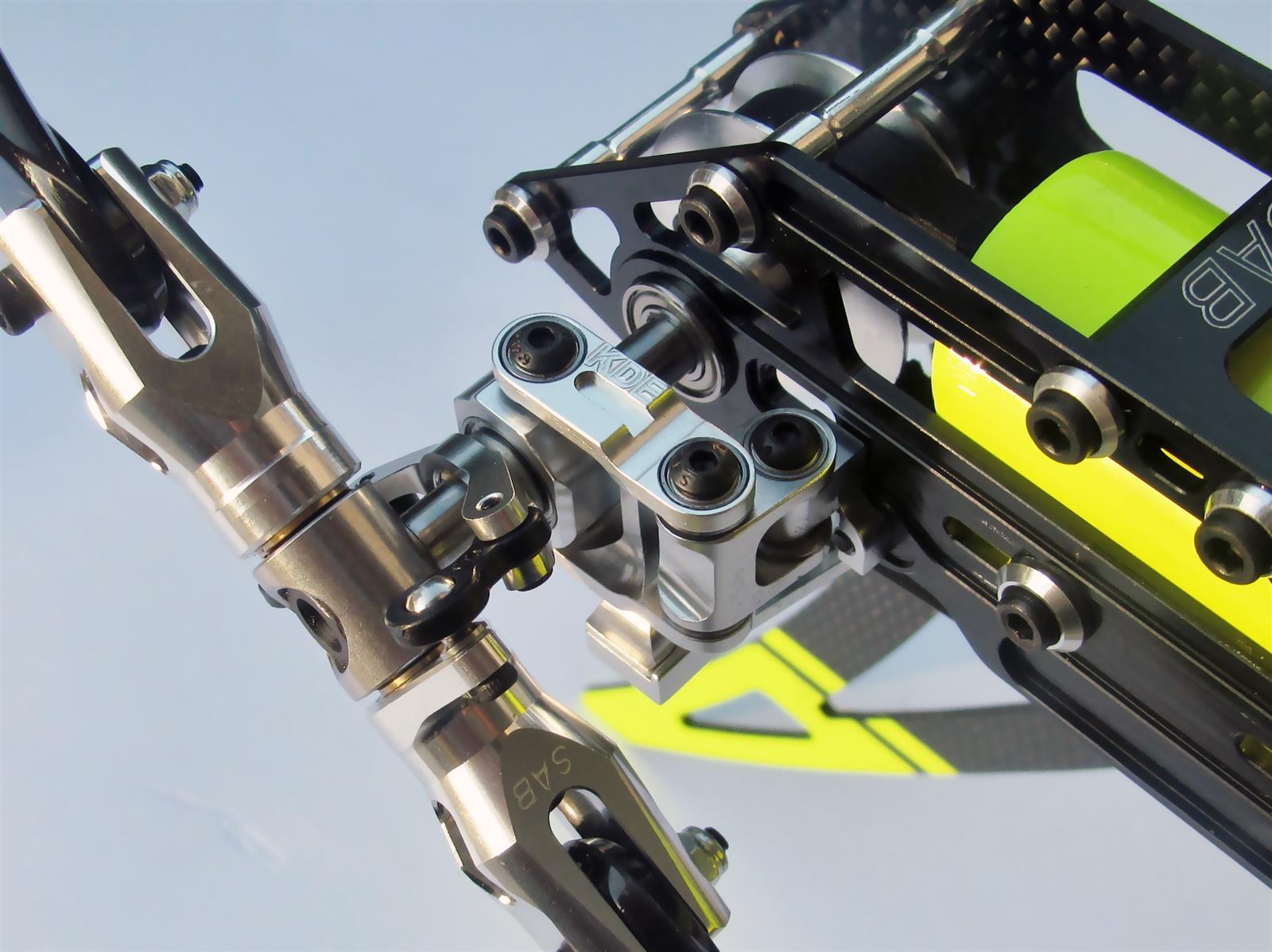

Note: the KDE Direct GOBLIN 630/700/770 Series Performance Tail Control V2 assembly is the ultimate, slop-free control
system available on the market to provide precise tail control and authority. Add the upgrade to the tail control system and
you now have a complete, dual-radial ball bearing supported assembly throughout for the ultimate flight characteristics.
With the mechanics of the dual-fork supported tail slider, there is no worry of abnormal wear or torque loads on the tail shaft
slider for a continuously smooth, failure-free operation even under the hardest and most extreme flying conditions.



Important: due to the precision CNC-machining of each component,
correct installation is key for proper, bind-free operation. Please pay
attention to the Installation Instructions and installation video, take your
time during the install, and make sure to apply medium-strength Loctite
(Blue 243 or equivalent) to all screws during assembly. Once
fully-installed, a significant reduction in slop throughout the tail
mechanics will be clearly evident on the bench and in actual flight.

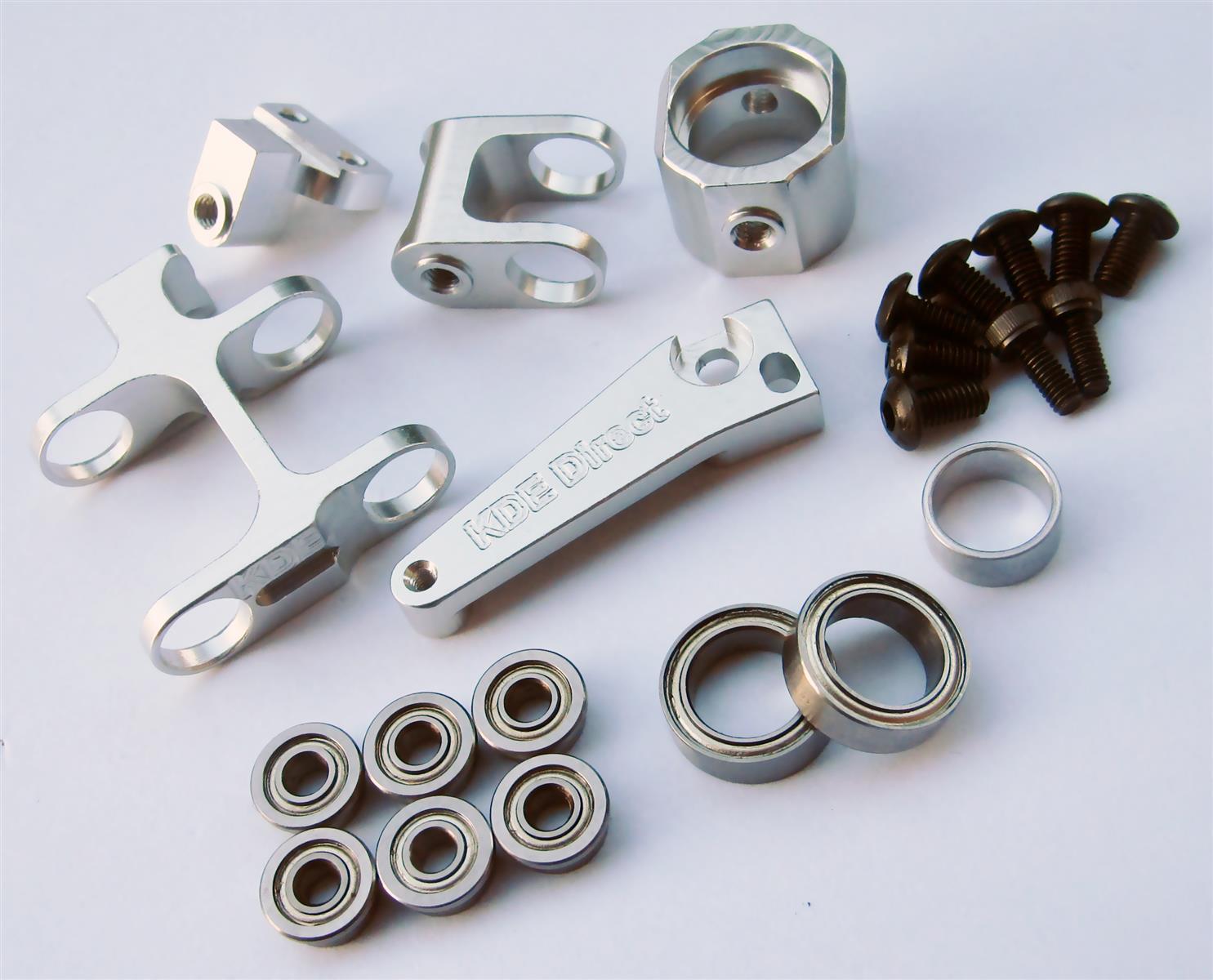

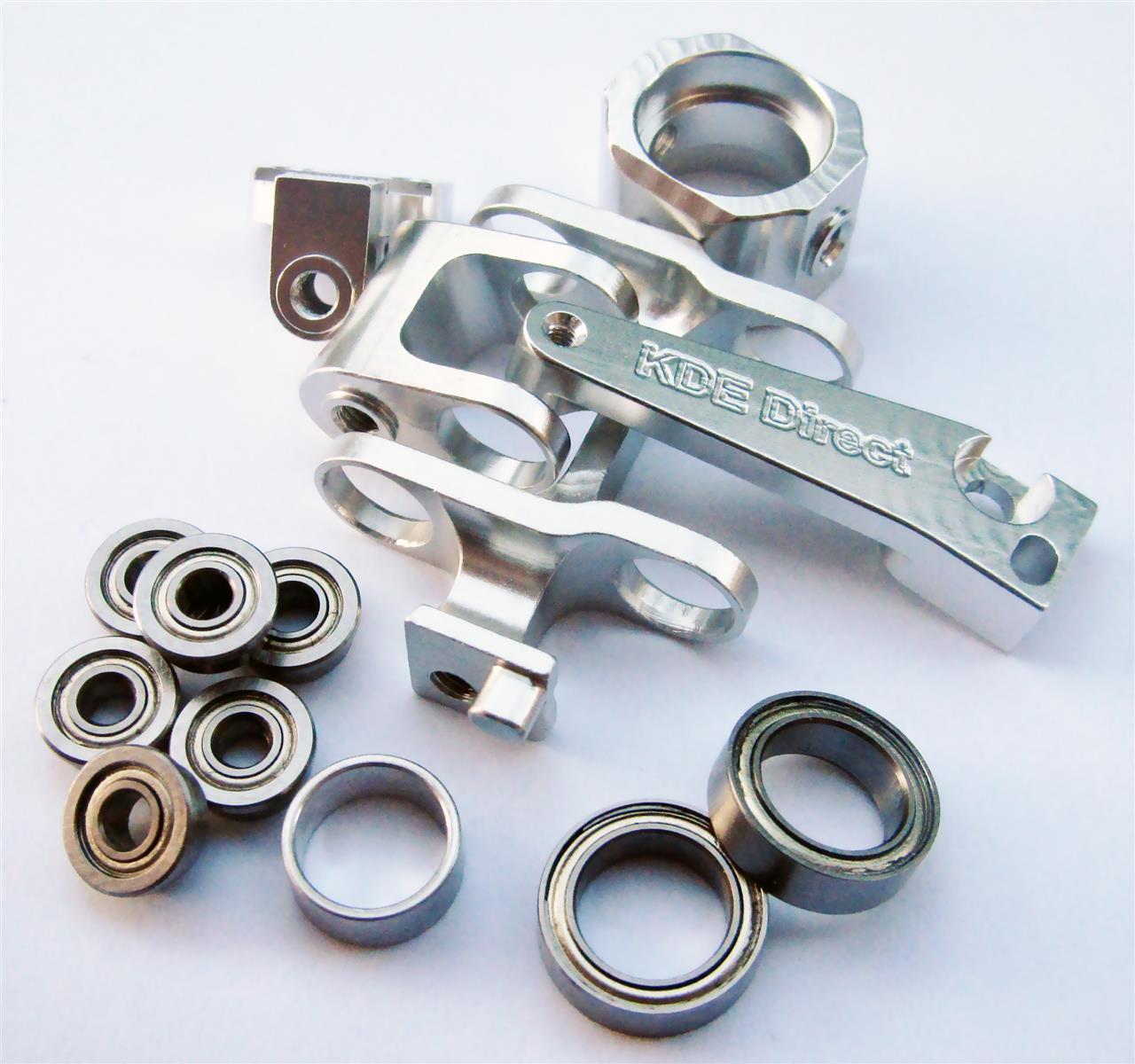

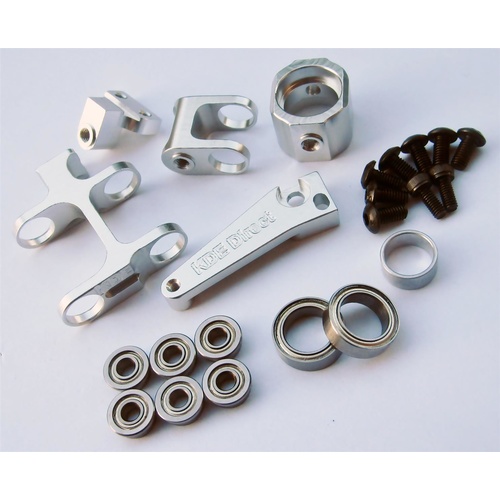

Includes:
- One (1) GOBLIN 630/700/770 Series Aluminum Performance Tail Control Assembly
- One (1) GOBLIN 630/700/770 Series Aluminum Performance Tail Control Mounting Bolt V2
- One (1) GOBLIN 630/700/770 Series Aluminum Performance Tail Control Secondary Link
- One (1) GOBLIN 630/700/770 Series Aluminum Performance Tail Control Primary Link
- One (1) GOBLIN 630/700/770 Series Aluminum Performance Tail Control Arm Lever
- One (1) GOBLIN 630/700/770 Series Aluminum Performance Tail Control Bearing Holder
- One (1) GOBLIN 630/700/770 Series Aluminum Performance Tail Control Bearing Collar
- Two (2) Radial Ball Bearings 8 x 12 x 3.5 mm
- Six (6) Flanged Radial Ball Bearings 3 x 7 x 3 mm
- Seven (7) M3 x 0.5 x 6 mm Button Head Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Two (2) M2.5 x 0.45 x 6mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)



Finish:
Clear anodize, mirror-polish CNC gloss



Weight:
11 g (design is FEA optimized for maximum strength and minimum weight)



Installation Istructions: http://kdedirect.com/files/SG630-700-770-PTC-V2_Installation_Diagram.pdf

(400000933)

SKU 400000933
Brand KDE
