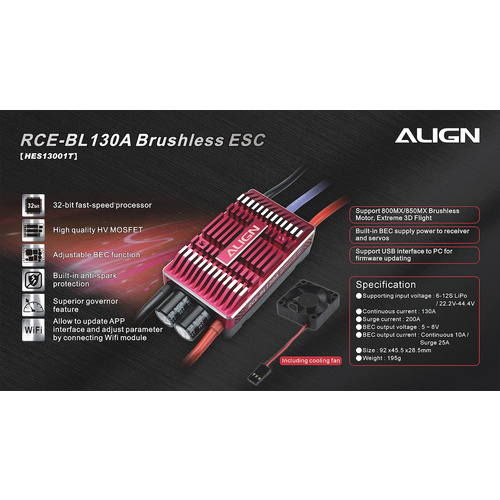

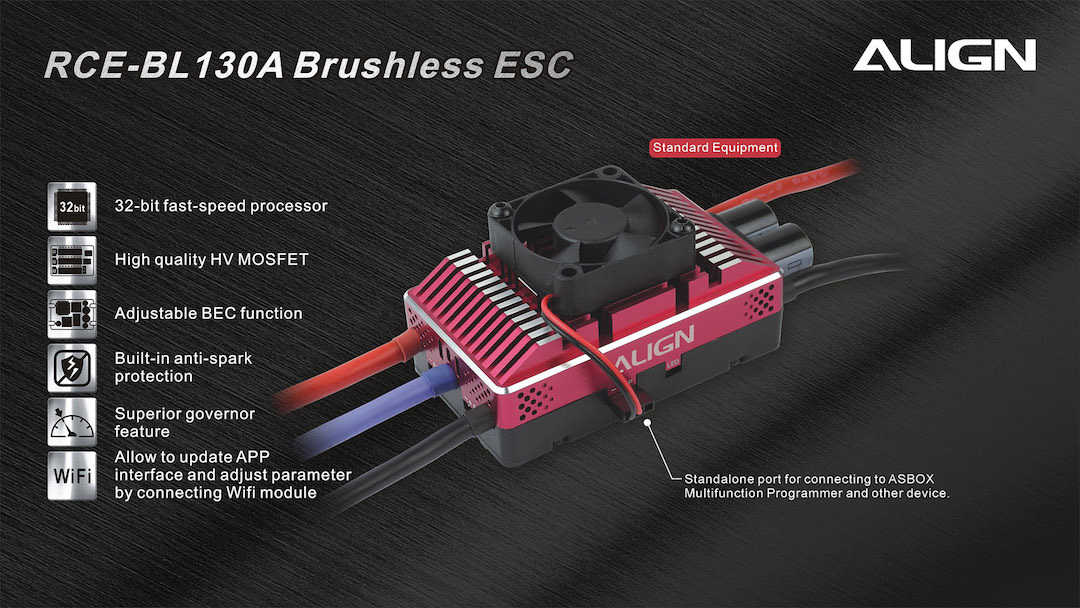

RCE-BL130 Brushless ESC

Instructions:

●32-bit fast-speed processor.
●High quality MOSFET.
●Adjustable BEC function, supply power to receiver and servos.
●Built-in anti-spark protection.
●Superior governor feature.
●Support 800MX/850MX Brushless Motor, Extreme 3D Flight.
●Support USB interface to PC for firmware updating.
●Manual:

For more detailed information, please refer to the Power Tip



Specification:

●Supporting input voltage: 6~12S Lipo / 22.2V~44.4V                                                                                                    ●Continuous current: 130A                                                                                                                                                      ●Surge current: 200A                                                                                                                                                                     ●BEC output voltage: 5~8V                                                                                                                                                               ●BEC output current: Continuous 10A / Surge 25A                                                                                                                                 ●Size: 92x45.5x28.5mm                                                                                                                                                               ●Weight: 195g


Accessories:

●130A Brushless ESC x 1
●130A Brushless ESC fan x 1
●130A Brushless ESC screw(M3x14mm) x 2
●BEC output wire set x 1
●Throttle signal wire set x 1
●Heat shrink tube x 2
●Φ5.5mm gilt terminal x 3
●Φ7 Heat shrink tube(Φ7x25mm) x 3

(200001207)

SKU 200001207
Brand Align
