Specification:



●Contimuous current:45Amps
●Surge current:60Amps for 15seconds
●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
●Supporting maximum RPM:2poles=>190,000rpm
●Supporting maximum RPM:6poles=>63,000rpm
●Supporting input voltage:2S~6S
●Supporting battery types: Li-ion/ Li-poly 2~6 cells
●BEC output: 5~6V,current 3A
●Size:58X29.3X21mm
●Weight:47g



Accessories:
●ALIGN standard 3mm socket terminal X3pcs(Max. current 50A)
●Heat shrink tube x 3 PCS(Φ4x25mm)

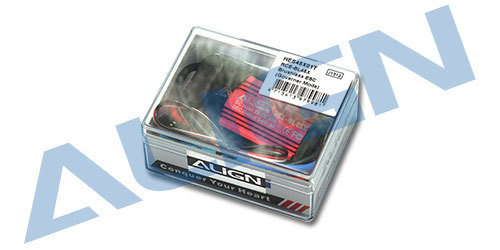

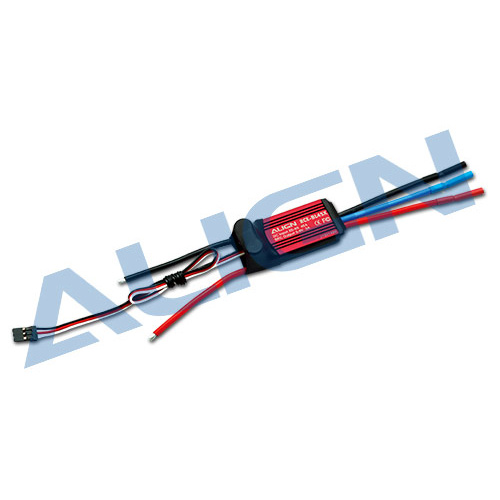

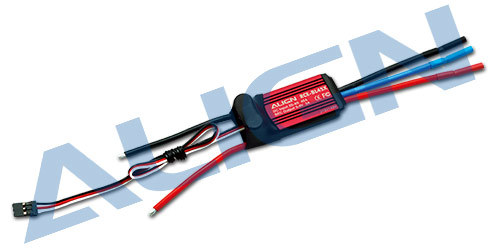

RCE-BL45X Brushless ESC (Governer Mode)

(200000724)

SKU 200000724
Brand Align
