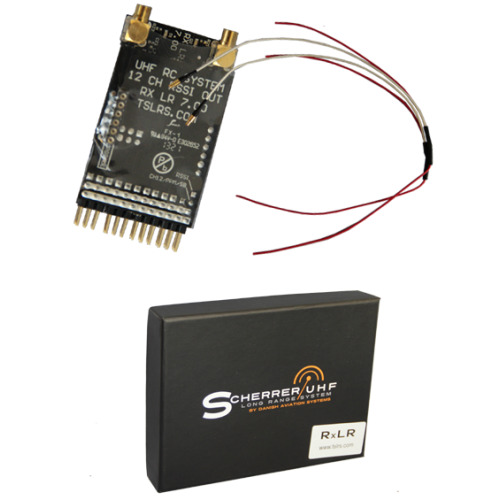

RX700LR - TSLRS RX700 LR Reciever



Rx700LR is the newest version of the beloved TSLRS RX it comes with a set of great new or updated feature such as:

  • Updated diversity system
  • Updated RSSI system
  • External firmware upgrade port
  • Completely new software
  • Selectable PPM/PWM (S-Bus planned to come soon) upon boot

It has also sequential fail safe, that lets you store a fail-safe pattern of 3 interactions when it hits fail safe. Through the firmware port you can access TSLRS debug tools for viewing amounts of fail-safes, blocked channels, diversity performance and much more (TSLRS USB programer needed).

What do you get

  • RX700 LR
  • Deluxe gift-box for high level of protection
  • 2 antennas

Specifications

  • World Record long range!
  • 12 servo channels
  • PPM output (also called SUM signal)
  • Switchable output PWM or PPM
  • Rssi output 0.5 to 3.3V from min to mix
  • Supply voltage 4-6 Volts
  • Weight 20 Grams
  • The receiver board is 34 x 55mm.
  • Supply current RX alone 134mA at 5V
  • Diversity dual antenna system auto change over prevents nulling or drop outs
  • LED indicators for antenna selected
  • MCX connectors for antenna inputs
  • Wire antenna mounted directly on the rx.
  • Wideband frequency hopping system
  • Uses 433 to 440 MHz ISM licence free band
  • User firmware upgradeable
  • Supports TSLRS manager
  • Supports debugging mode for TSLRS manager, analyze frequencies, failsafes, diversity
  • Wide user temperature range -40C to +70C ambient
  • Optimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters.

(400000841)

SKU 400000841
Brand Tslrs
