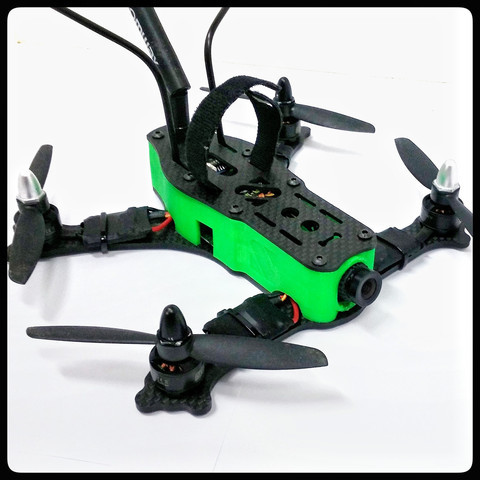

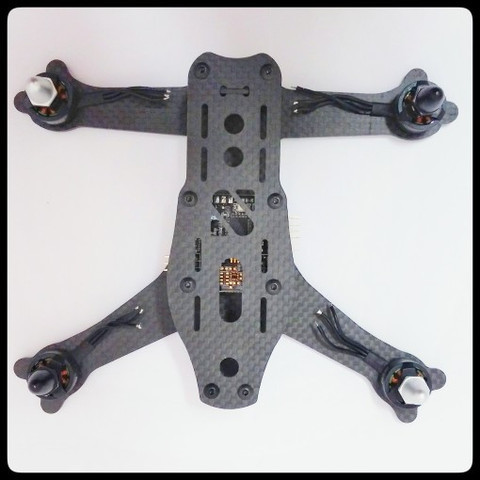

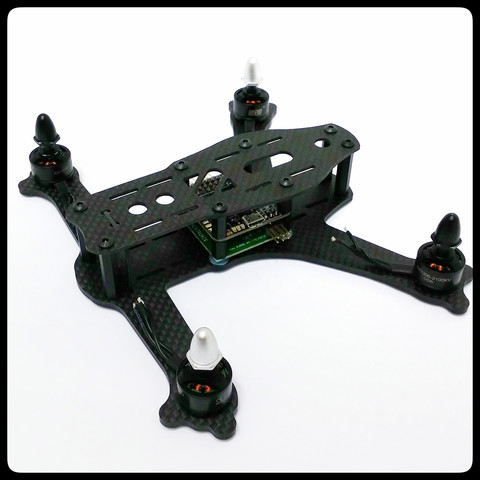

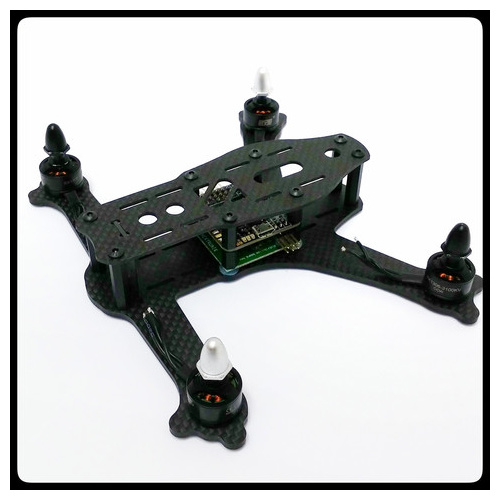

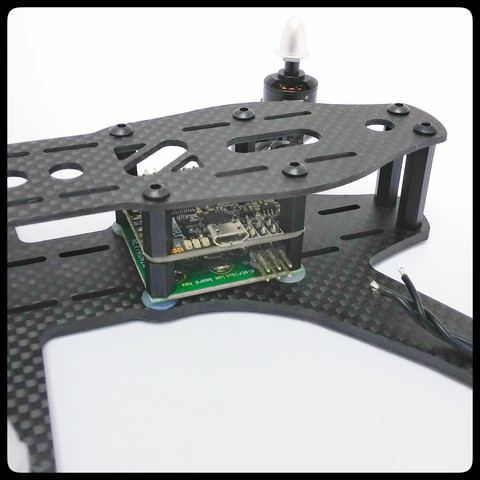

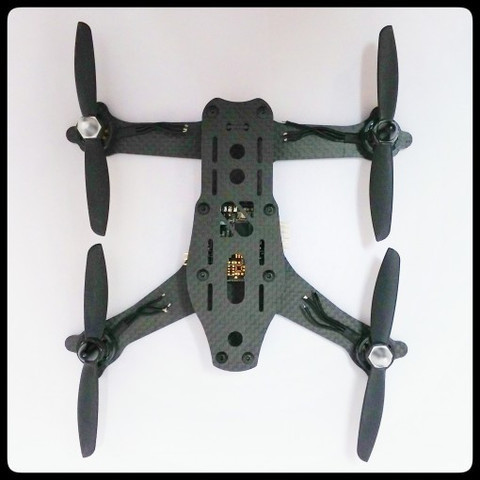

Skunkworx SWH170 Kermit Micro FPV Racer

Designed by Skunkworx Hobbies, the SWH170 – Codename “Kermit” is set to ignite the world of short-track FPV racing

The Kermit has been carefully designed to use standard gear (albeit the small stuff!) and cut from 3mm and 1.5mm carbon to create an incredibly tough little racing frame.

Note: Skirt is not included

Specifications

  • SWH170 Kermit Micro Quadcopter V1
  • Material: 1.5mm & 3mm Taiwan Matte Carbon Fiber or Taiwan Glossy Carbon Fiber
  • Wheelbase: 170mm
  • Weight: 62g
  • Hardware: Black Nylon and Steel
  • Motor mounts: Square M2 mounting patterns to suit most 1306 – 1806 motors
  • Power Distribution: Hextronic™ Mini PDB supplied with frame
  • Flight Controller: Optimised for Naze32 and CC3D size boards
  • Flight Camera: To suit mini CCD/CMOS cased FPV camera

Recommended Setup

  • Motors: DYS 1306/3100kv
  • ESCs: ZTW Spider Series 12A
  • Flight Controller: Naze32
  • Propellors: HQ 4045 Props
  • Battery: Tattu 1050mah 3s 45-90c or 4S 1050 45-90c or 4s 1050 75-150c (for constant WOT :)
  • Receiver: X4R-SB
  • Flight Camera: Sony HS1117 cased camera or Sony CC1570 board camera
  • Video Transmitter: ImmersionRC 25mw 5.8ghz
