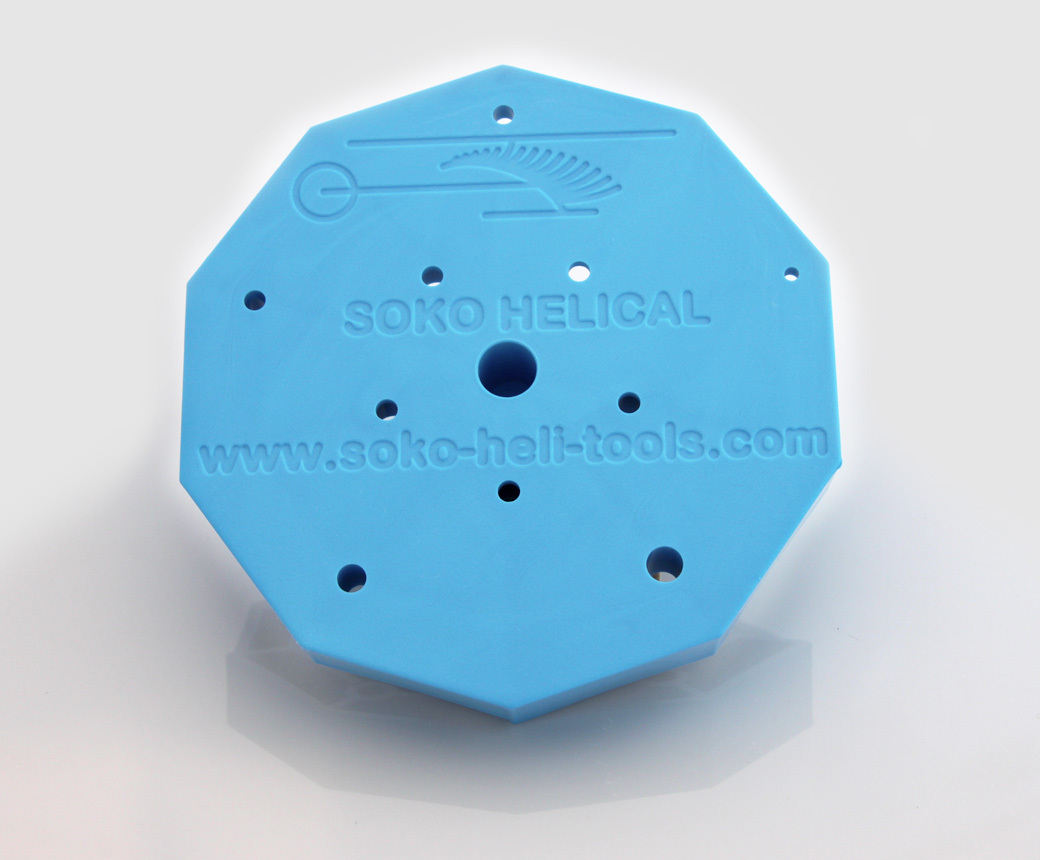

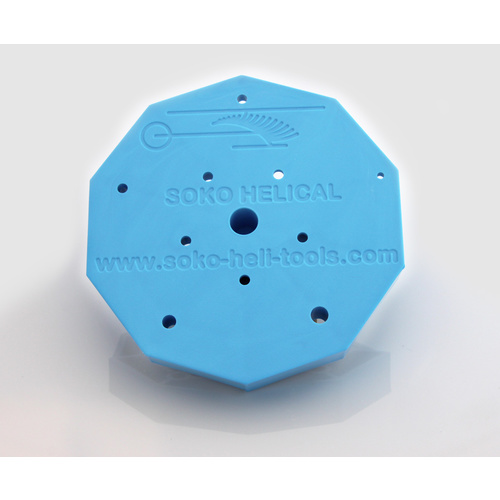

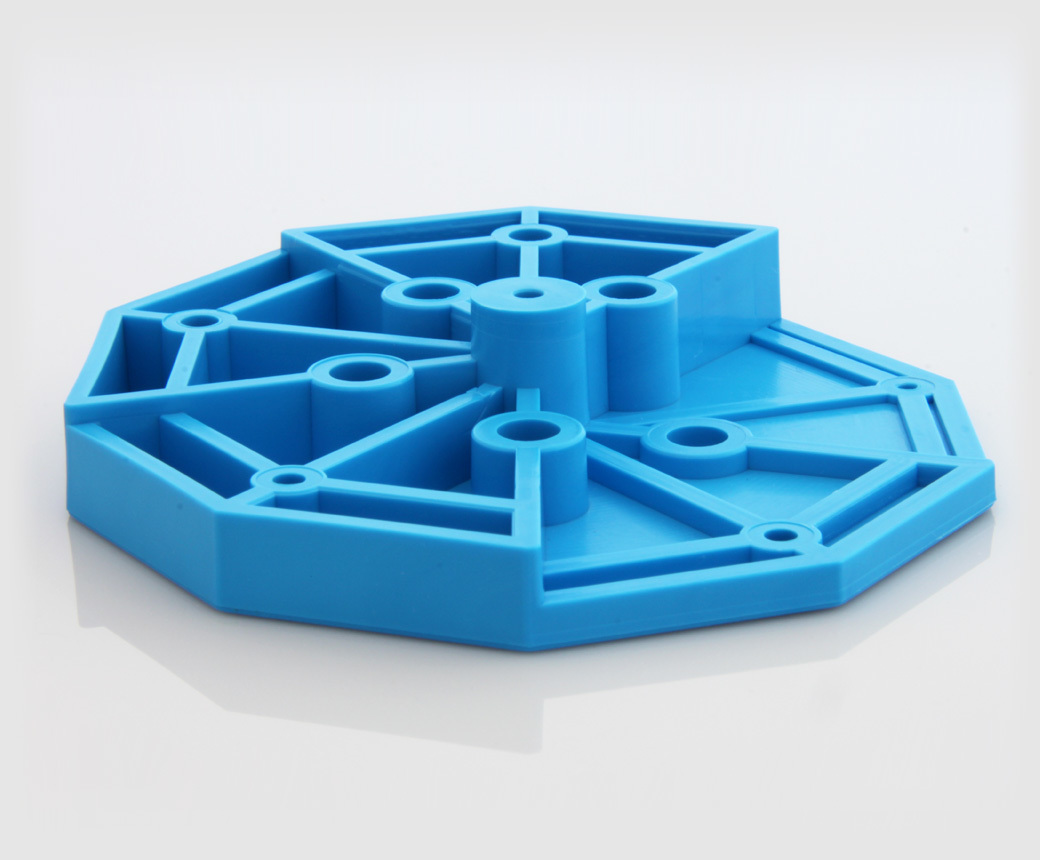

Soko Helicals

The Soko Helical is the most versatile mounting platform for gauges, tools, etc. to setup your RC helicopter.

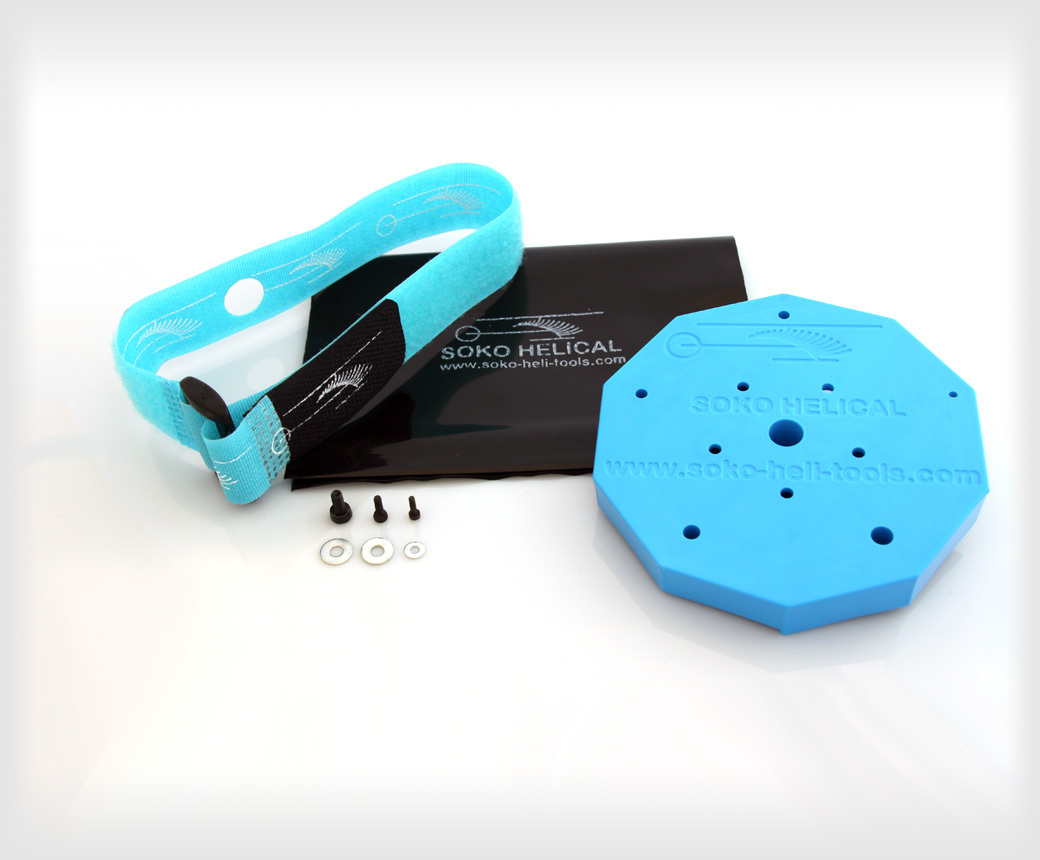

Includes:

1x Soko Helical
1x M1.6x6mm hex screw
1x M2x6mm hex screw
1x M3x6mm hex screw
1x M2 washer
2x M3 washer
1x Special mounting velcro
1x storage bag

Details about the Soko Helical:

The Soko Helical can be mounted on your heli in a blade grip (main and tail) with the following dimensions:

• blade grip opening 3mm, screw M2 (equals main blade grips for standard 250 size)
• blade grip opening 4.5mm, screw M3 (equals main blade grips for standard 360/450 size)
• blade grip opening 10mm, screw M3 (equals main blade grips for standard 500 size)
• blade grip opening 12mm, screw M4 (equals main blade grips for standard 550/600/630 size)
• blade grip opening 14mm, screw M5 (equals main blade grips for standard 700/770/800 size)

The Soko Helical is designed to be mounted as a head stopper disc:

• for a M1.6 head stopper screw (standard 250 size)
• for a M2 head stopper screw (standard 360/450/500 size)
• for a M3 head stopper screw (standard 550/600/630/700/770/800 size)

To mount any of your gauge or tools a special mounting velcro is included. Finally the Soko Helical provides special holes to securely mount the Soko Gauge.
