Features:
Suit for 1/24 1/28 1/32 RC MINI-Z mini car, motorcycle
2Poles slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
Precision engineered for maximum  conversion

Motor Specifications:
Brand: Rocket

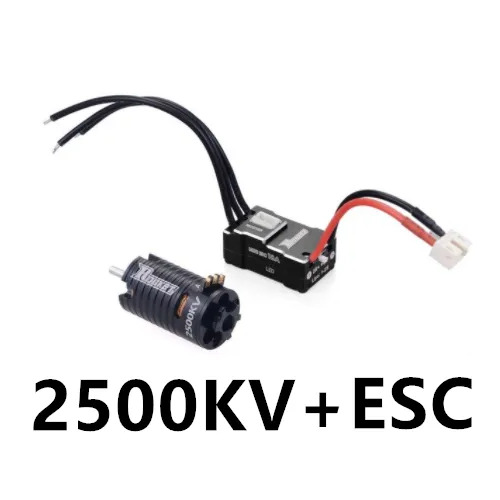

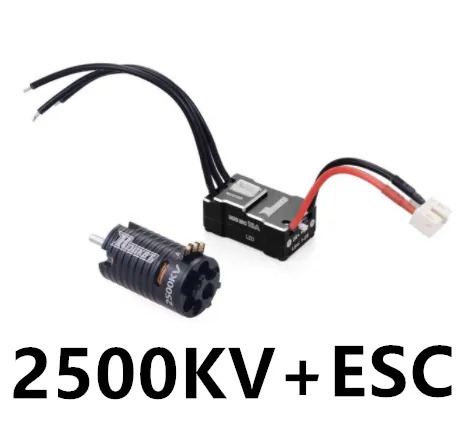

Item Name: MINI1410 Motor
KV(RPM/Volt): 2500KV/3500KV5500KV/7500KV/9500KV (Optional)
Black:2500KV
Red:3500KV
Titanium:5500KV
Sliver:7500KV
Orange:9500KV
Pole: 2
Max Amps: 8A-12A
Max Voltage: 1-2S
Resistance: 0.1-0.64Ω
Motor dimension : Φ15*25mm
Length of extend shaft : 10mm
Shaft Diameter : Φ2.0mm
Weight: 17g/0.6oz

ESC DECLARATION
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully. Since we can't control over the correct use, installation, application, or maintenance of our products, we ve no libility shall be assumed nor accepted for
any damages, lsses or costs resulting from the use of the product. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We asume no lability for personal injury, consequential damages resulting from our product or our workmanship.

ESC FEATURES :
1. Specially designed for RC car with excellent start-up, aceleration and linearity features.
2. Compatible with sensorless brushless motor.
3. The strong resistant crrent capabilit, exellnt heat dssipation.
4. Multiple protection features: Low voltage cut- off protection for lthim or nickel battry / Over-heat protection/Trotte signal loss protection/Motor blocked protection/
5. Easily programmed and compatible with pocket-sied program card.

ESC Specifications:
Brand: Rocket
Cont.Current/Burst Current: 12A / 36A
Battery: 1-2 cells lipo,3-4 cells NiMH
Motor Type: Sensorless brushless motor
BEC Output: 5V /300mA( mode)
Suitable car: mini car
Dimension: 15x26x11.5mm

(54154)

SKU 54154
Brand Surpass Hobby
