Features:
2 Pole 3 Slot Hi-torque Motor Design
CNC Machined 6061T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit, fits all 1/24th, 1/28th brushless cars-multimounting system for M2.0 screws
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super Thin(0.2mm) Laminations
Precision Engineered for Maximum  Conversion

Specifications:
Brand: SURPASSHOBBY

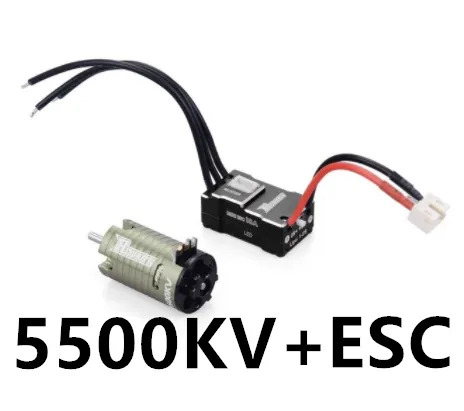

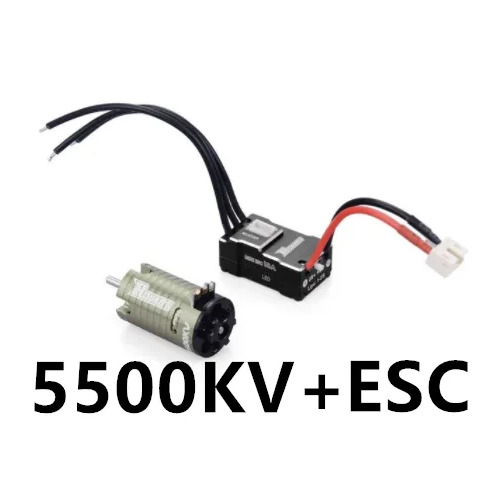

Item Name: MINI1410 Motor
Motor Size:15*25
Weight:12.5g
Shaft:2mm
Length of extend shaft:10mm
KV(RPM/Volt): 2500KV/3500KV/5500KV/7500KV/9500KV (Optional)
Black:2500KV
Red:3500KV
Titanium:5500KV
Sliver:7500KV
Orange:9500KV

3500KV(RPM/Volt)
Max voltage:<8.4V
Max Amps:9A
Resistance:0.64
Max RPM:60000

5500KV(RPM/Volt)
Max voltage:<8.4V
Max Amps:10A
Resistance:0.28
Max RPM:60000

7500KV(RPM/Volt)
Max voltage:<8.0V
Max Amps:11A
Resistance:0.14
Max RPM:60A000

3500KV(RPM/Volt)
Max voltage:<6.0V
Max Amps:12A
Resistance:0.1
Max RPM:60000

(54152)

SKU 54152
Brand Surpass Hobby
