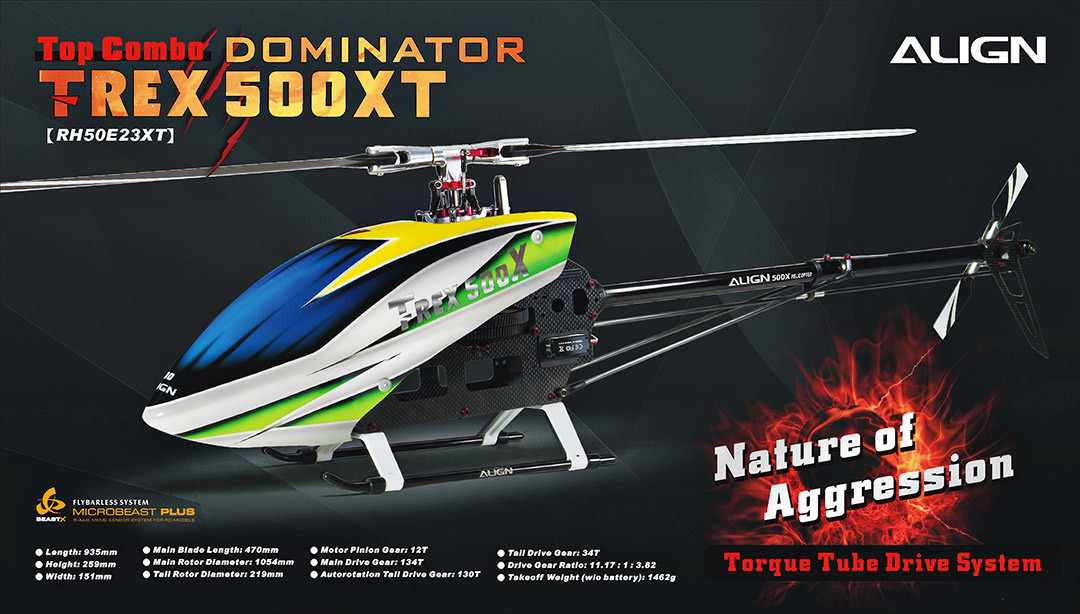

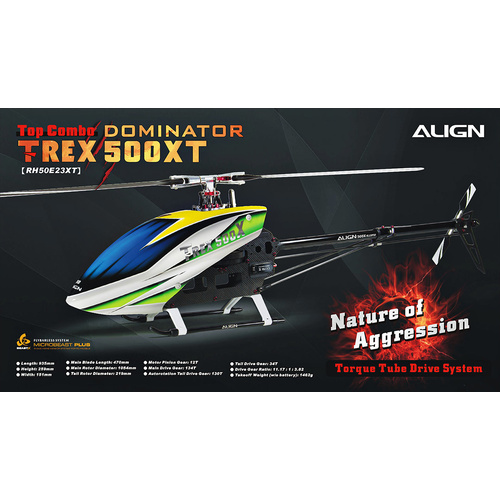

T-REX 500XT TOP Combo

Note: This kit is preorder only and not in store. This kit is a shipped direct to you, or you can choose pickup from store at checkout. Please contact store to get exact ETA and availabilty. To preorder simply call or email us at info@rccrew.com, or place order through website.

​Layby Option also available.

Experienced in numerous of innovations, the brand new T-REX 500XT is now ready to go. More attractive and creative design ideas are all in here, it absolutely would be your favorite T-REX 500XT model ever. The New Torque Drive System; The Better Performance Advantage.

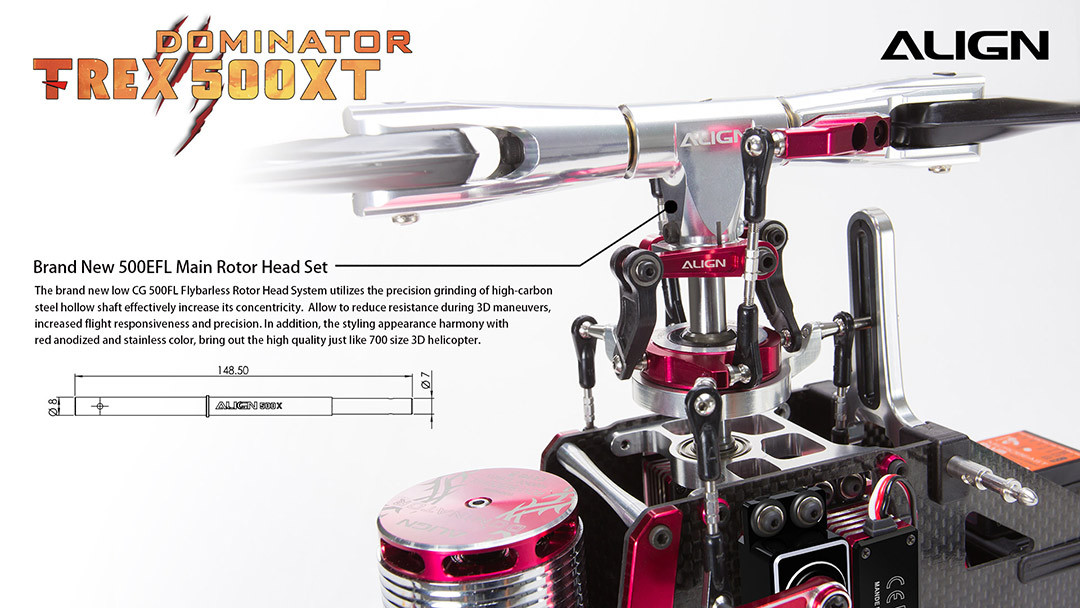

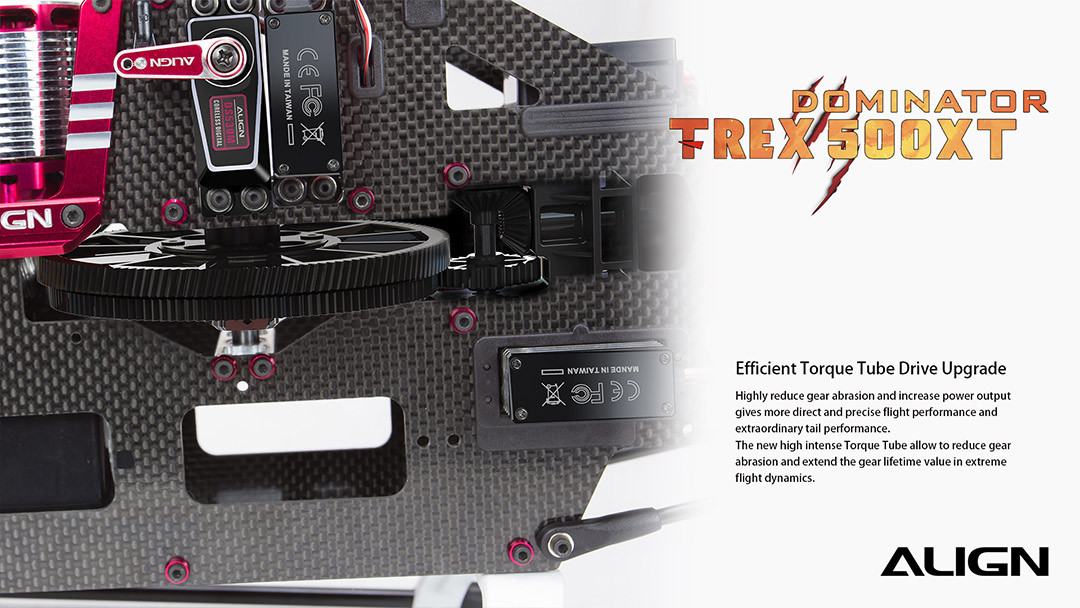

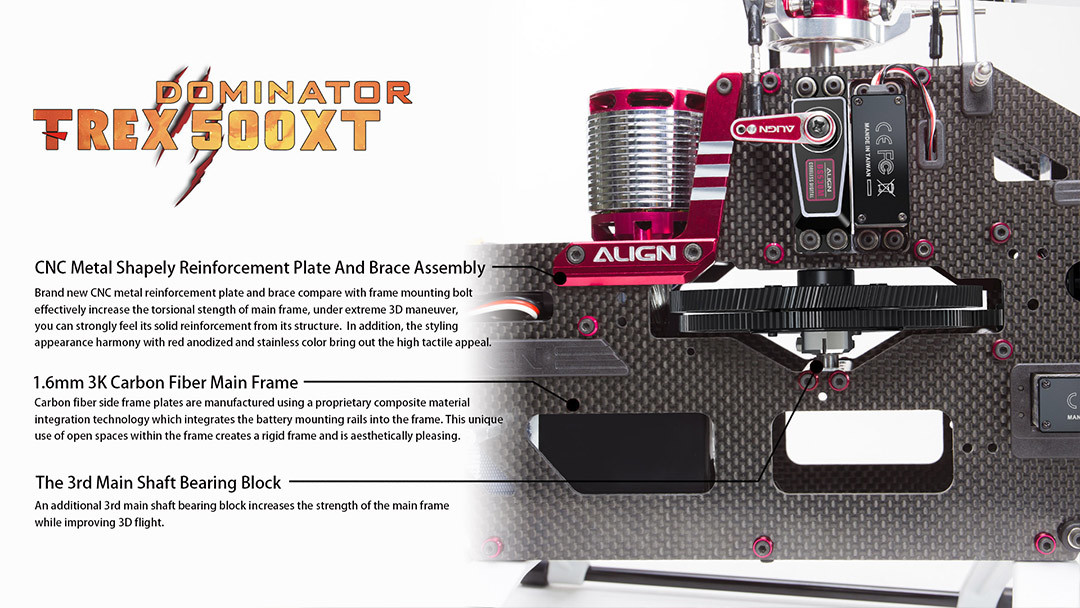

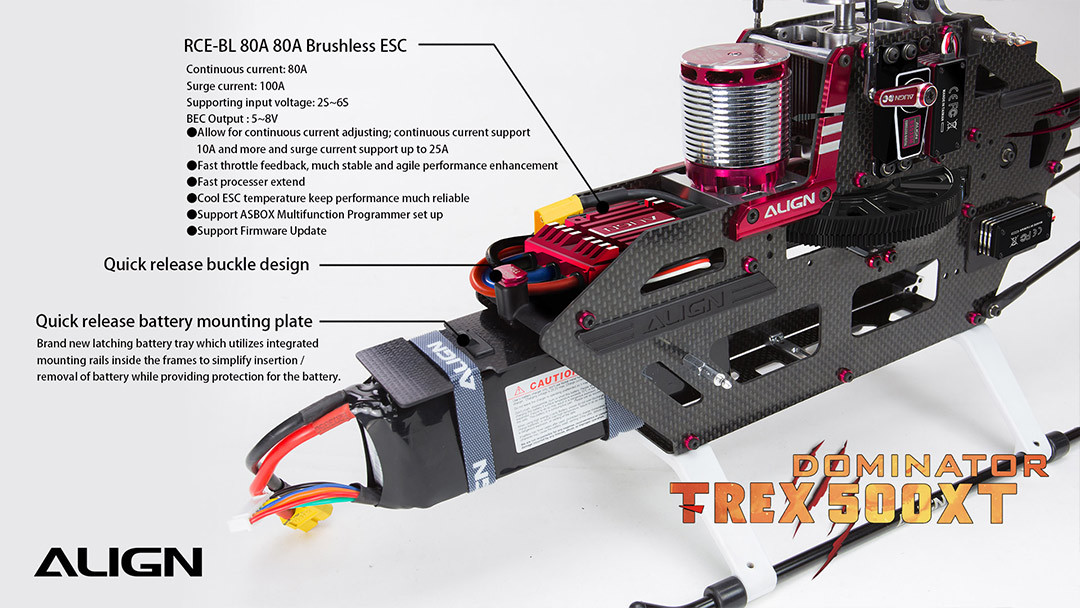

Refresh and refine, T-REX 500XT adapt with brand new FL rotor head system, utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 500XT main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. The 500XT utilizes a new torque drive assembly, highly reduce gear abrasion and increase power output gives more direct and precise flight performance and extraordinary tail performance. T-REX 500XT landing skid is tilted 5 degrees forward to improve crashworthiness.

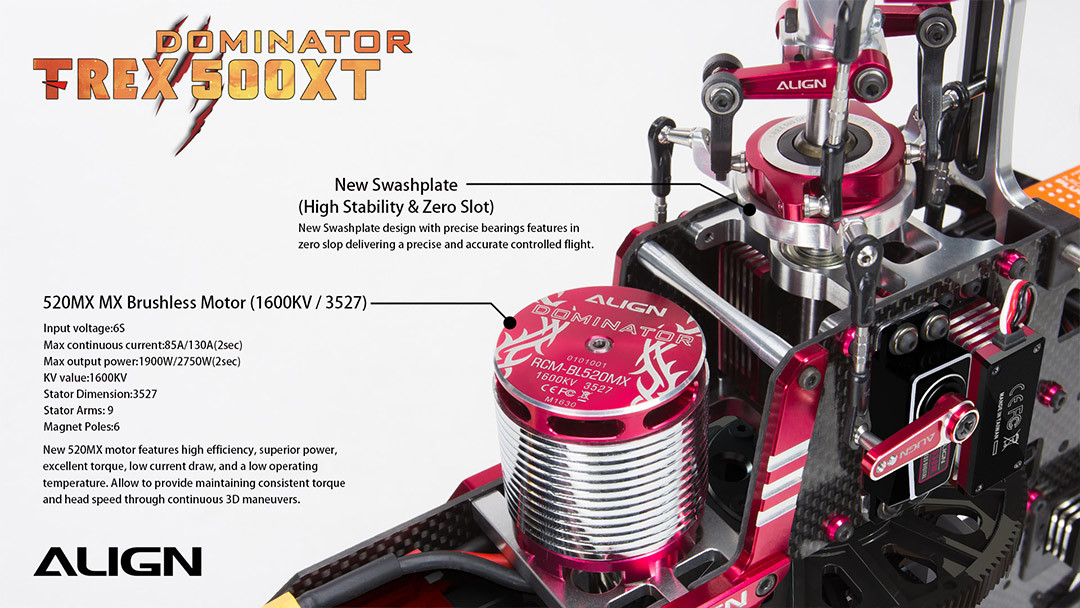

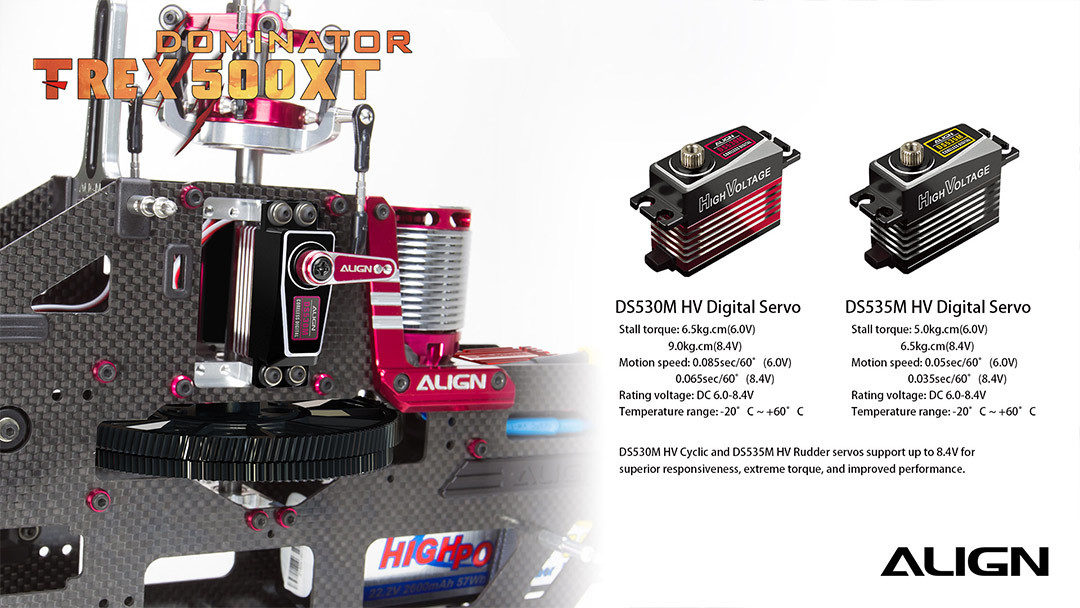

T-REX 500XT utilizes 470mm main blades and 520MX(1600KV/3527) motor with 20% power upgrades than the original 1600KV/3225 motor. The latest new RCE-BL80A Brushless ESC support dual BEC output from 6 ~ 8.4V providing efficient and superior power. The NEW DS530M/DS535M digital servos are with extreme torque and speed response allow to support faster, more precise and accurate flight performance.

Equipped with all the top end electronic devices, T-REX 500XT is as stable and powerful like the large scale helicopters. It is about to re-define the 500-class helicopters in your mind.

Standard equipment

●Microbeast PLUS Flybarless System x 1 set
●RCE-BL80A Brushless ESC x 1
●520MX Brushless Motor(1600KV/3527) x 1
●DS530M Digital servo x 3
●DS535M Digital servo x 1

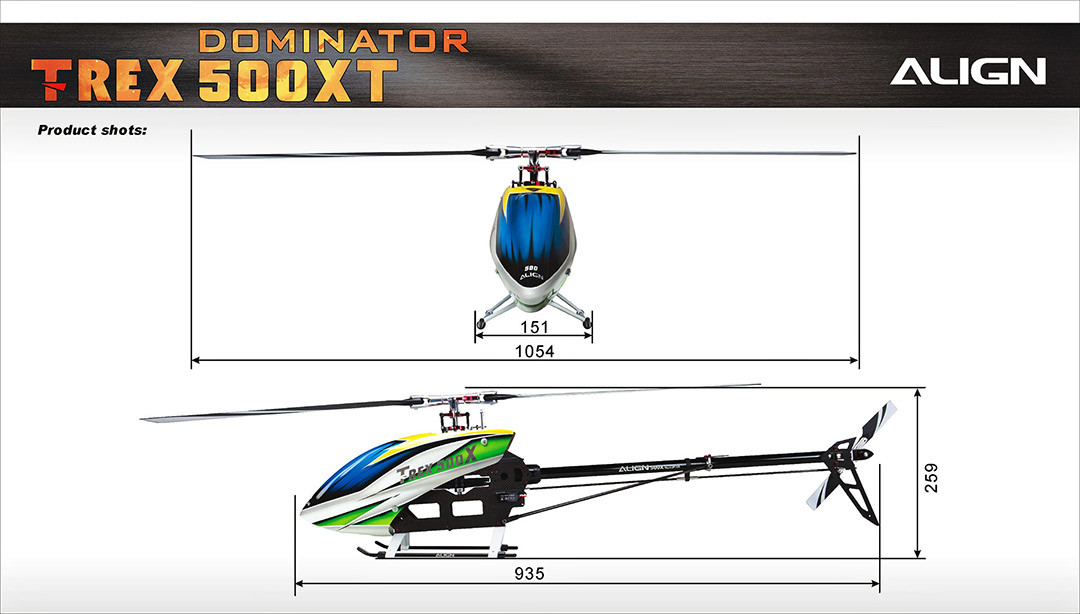

Specification

● Length: 935mm
● Height: 259mm
● Width: 151mm
● Main Blade Length: 470mm
● Main Rotor Diameter: 1054mm
● Tail Rotor Diameter: 219mm
● Motor Pinion Gear: 12T
● Main Drive Gear: 134T
● Main Drive Pulley: 130T
● Tail Drive Gear: 34T
● Drive Gear Ratio: 11.17:1:3.82
● Weight(w/o battery): approx. 1462g

Accessories

●T-REX 500XT KIT Set x 1
●Microbeast PLUS Flybarless System x 1 set
●470 Carbon Fiber Blades x 1
●78 Tail Rotor Blade x 1
●DS530M Digital servo x 3
●DS535M Digital servo x 1
●520MX Brushless Motor(1600KV/3527) x 1
●RCE-BL80A Brushless ESC x 1

Radio transmitter and electronic equipment required for assembly:
●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
●6S Li-Po 2600 ~ 3300mAh
●Digital Pitch Gauge

(200001458)

SKU 200001458
Brand Align
