T-REX 700XN Kit

Please note: this item is shipped from our warehouse and not in store. You can order to store by selecting pickup from store option during checkout.

Layby Option also available. Afterpay and Zip Pay.

How long have you not heard roaring sound of engine? How long have you not had passionate feelings? The new combination of innovation, steel, light weight and precision, the ultimate in perfect technology in one, that’s new generation T-REX 700XN.

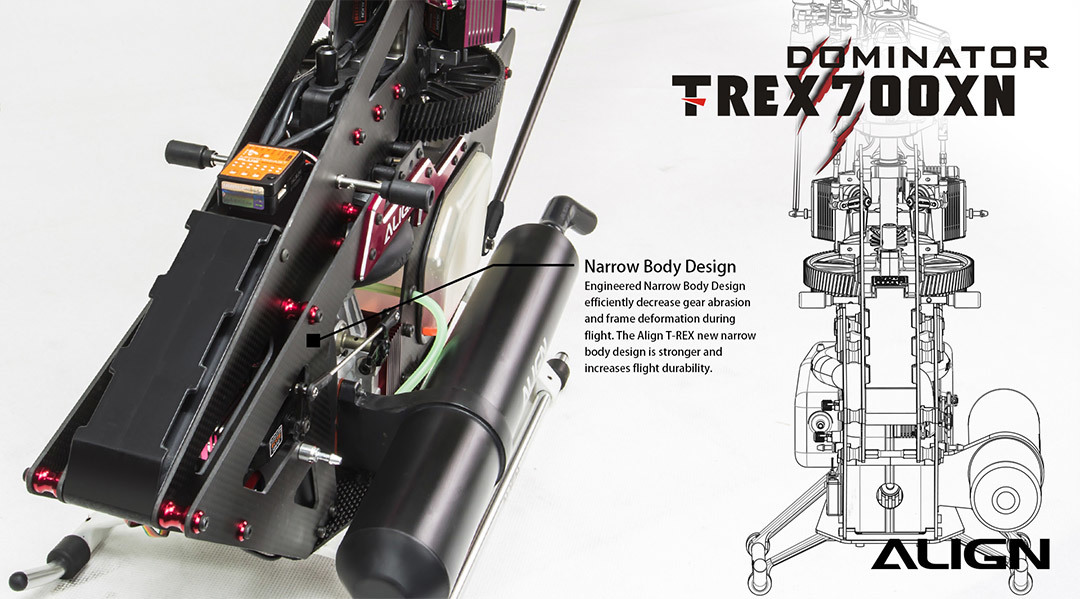

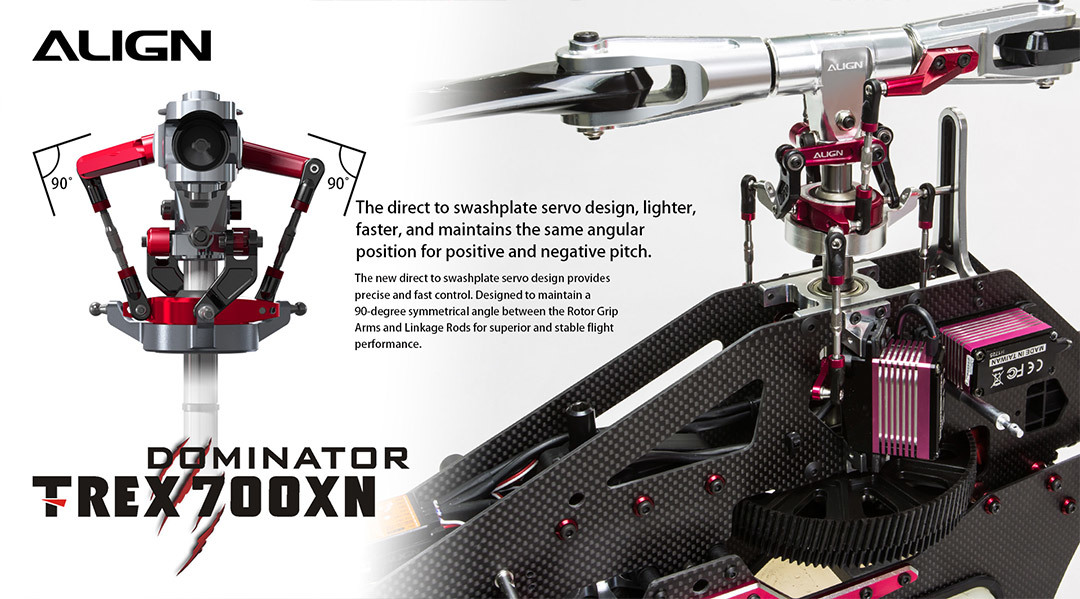

T-REX 700XN adopts the new direct to swashplate servo design, compared with previous generation T-REX 700N double push-pull mode control, providing precise and fast control! With 700EFL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. Designed to maintain a 90-degree symmetrical angle between the Rotor Grip Arms and Linkage Rods for superior and stable flight performance. Engineered Narrow Body Design efficiently decrease gear abrasion and frame deformation during flight. T-REX 700XN maintain the proper Center of Gravity CG, moving the engine forward allowed the fuel tank to be positioned in the center of the main shaft to maintain consistent CG as the fuel level changes during flight.
The new steel alloy clutch liner is durable with temperature control avoiding the exploding clutch liner or breaking clutch housing, the lifetime is over 1000 flights. Receiver mount provides cable and wiring protection, easy to maintain and assemble by removing a few screws from the mainframe.
The new generation of T-REX 700XN has a number of innovative design, detonating your inner soul and once again feeling the original passion!

Electric equipment

●B6TX 2 In 1 Voltage Regulator Combo x 1

Specification

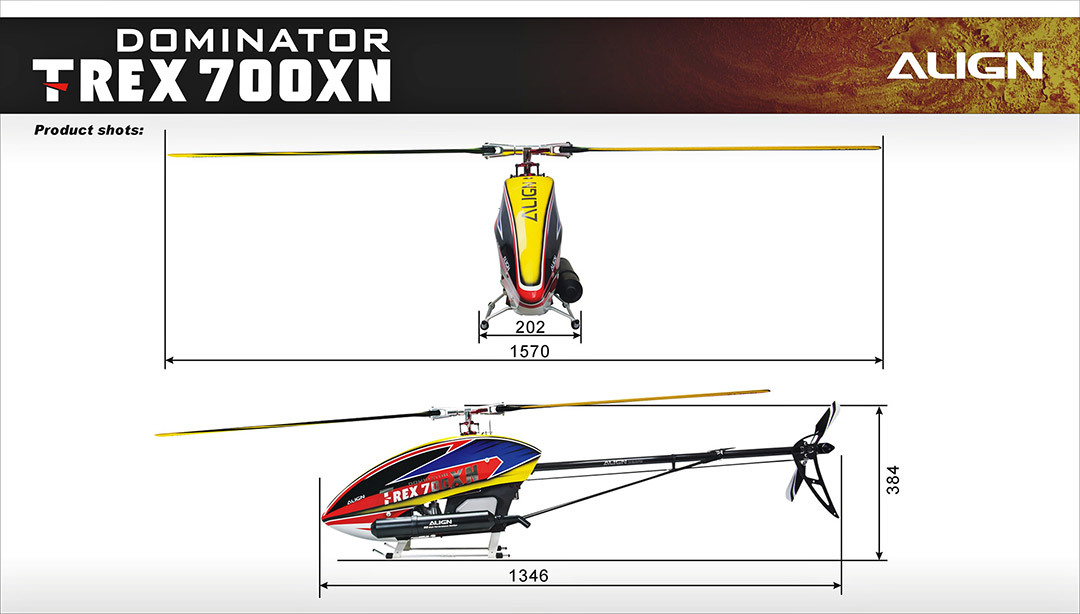

●Length: 1346mm
●Height: 384mm
●Width: 202mm
●Main Blade Length: 700mm
●Main Rotor Diameter: 1570mm
●Tail Rotor Diameter: 281mm
●Motor Drive Gear:13T
●Main Drive Gear:107T
●Autorotation Tail Drive Gear: 104T
●Tail Drive Gear: 22T
●Drive Gear Ratio: 8.23:1:4.73
●Fuel Tank Capacity: 630cc.
●Takeoff Weight: Approx. 4540g

Accessories

●T-REX 700XN Kit Set x 1 set

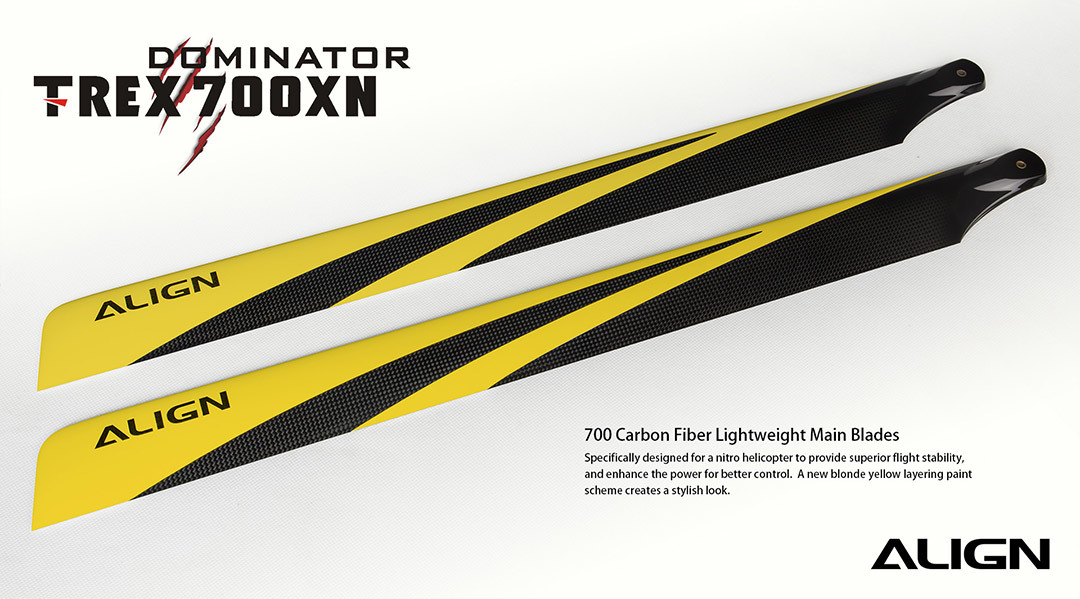

●700 Carbon Fiber Blades x 1 set
●106mm 3K Carbon Fiber Tail Blades x 1 set
●B6TX 2 In 1 Voltage Regulator Combo x 1


Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●Digital Pitch Gauge
●CCPM Servo x 3
●Tail Servo x 1
●Flybarless System x 1
●Standard servo(for throttle) x 1
●Engine starter x 1
●Fuel pump x 1
●91~105 Engine x 1
●Engine fuel x 1
●Governor Sensor x 1

(200001460)
