T-REX 760X KIT Dominator

The brand new Align T-REX 760X features with new body length and new 760 main blade for F3C/3D flight design providing the outstanding performance than other series will give you the different flying feeling.

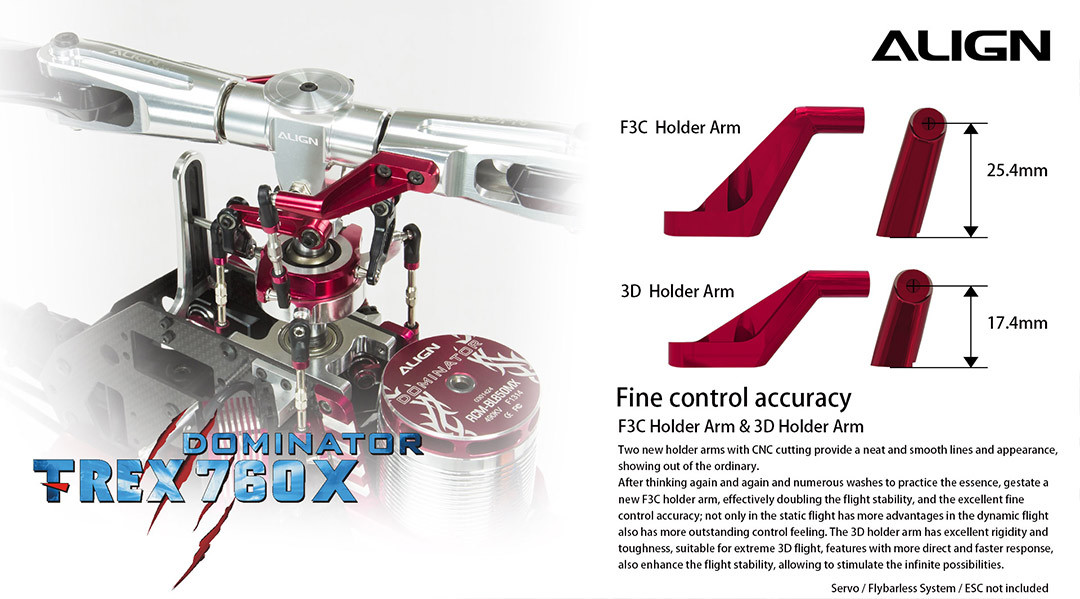

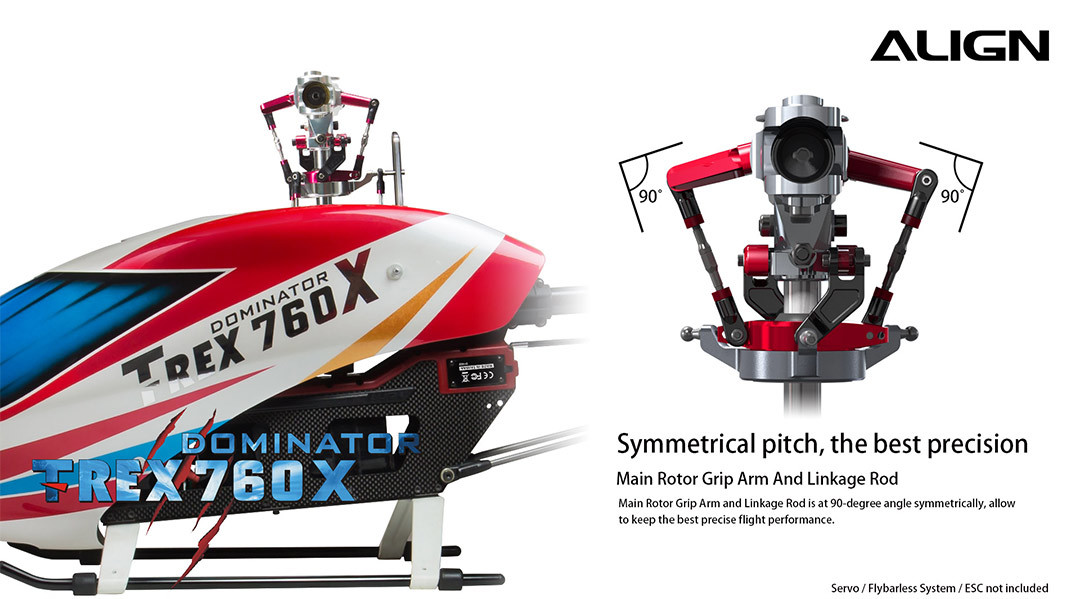

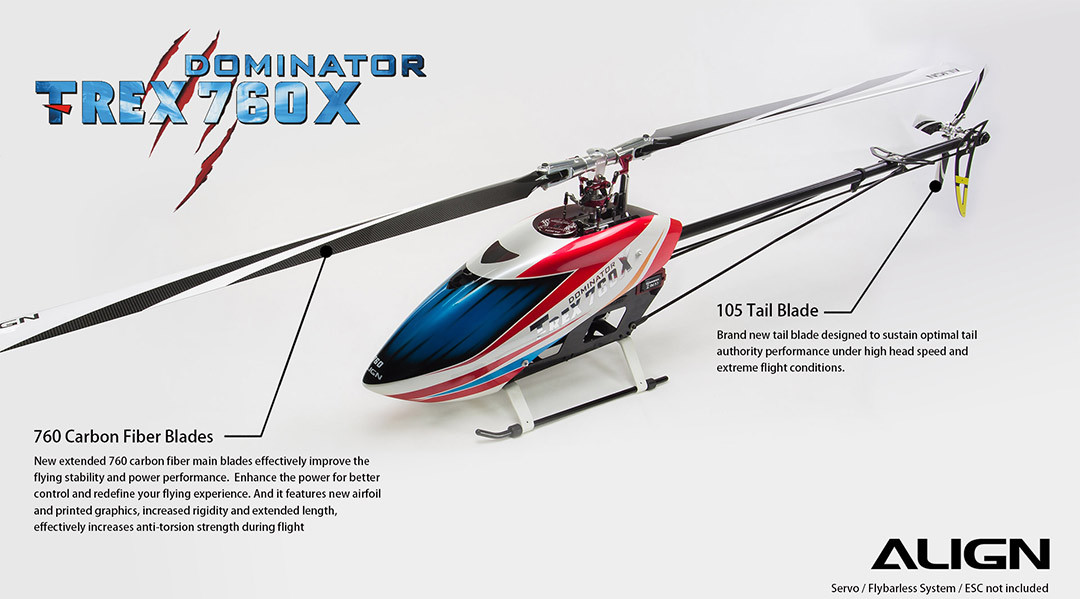

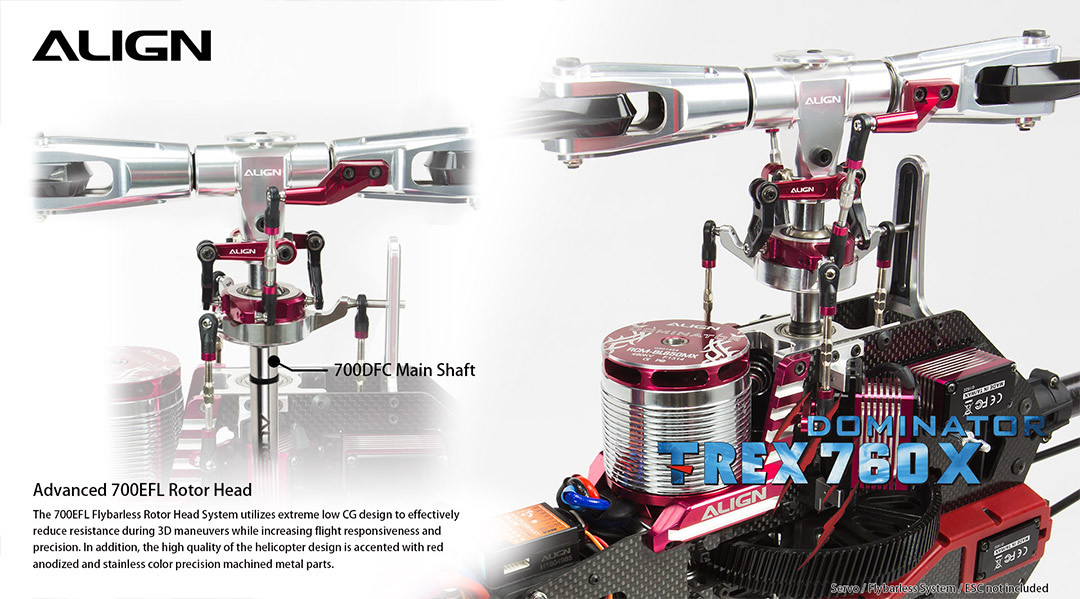

The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response. Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.

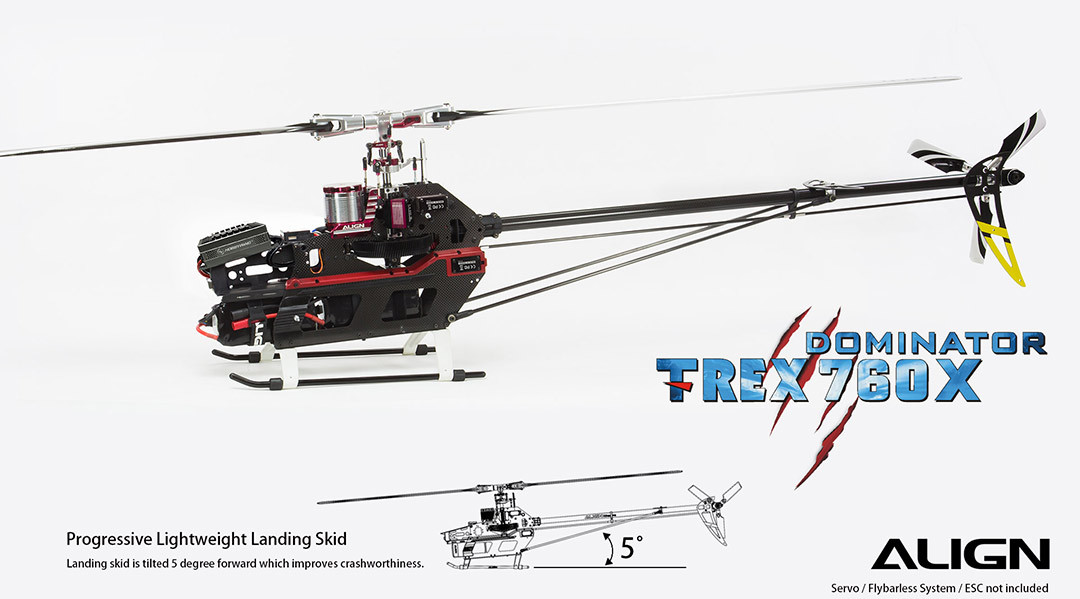

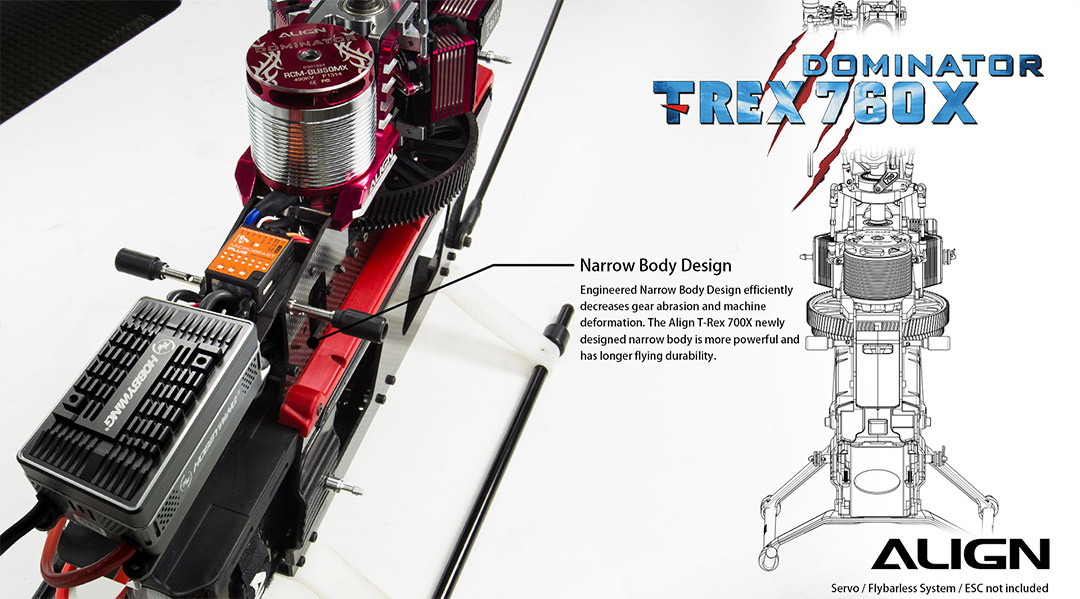

T-REX 760X introduced the advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 760X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class. The lightweight structure design which significantly reduce the body weight can effectively increase your flight time.

The T-REX 700X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter’s high quality design is accented with precision machined red and silver metal parts.

T-REX 760X introduced many new design with top equipment providing excellent performance allowing any flying style no matter F3C or 3D flight. If you don’t have any big helicopter, T-REX 760X must your best choice.

Standard equipment

●760X Painted Canopy x 1
●3D Holder Arm x 1
●F3C Holder Arm x 1
●Progressive Lightweight Landing Skid x 1
●700 PRO Carbon Fiber Vertical Stabilizer x1
●Main Blade Holder x 1

Electric equipment

●850MX Brushless Motor(490KV/4535) x 1

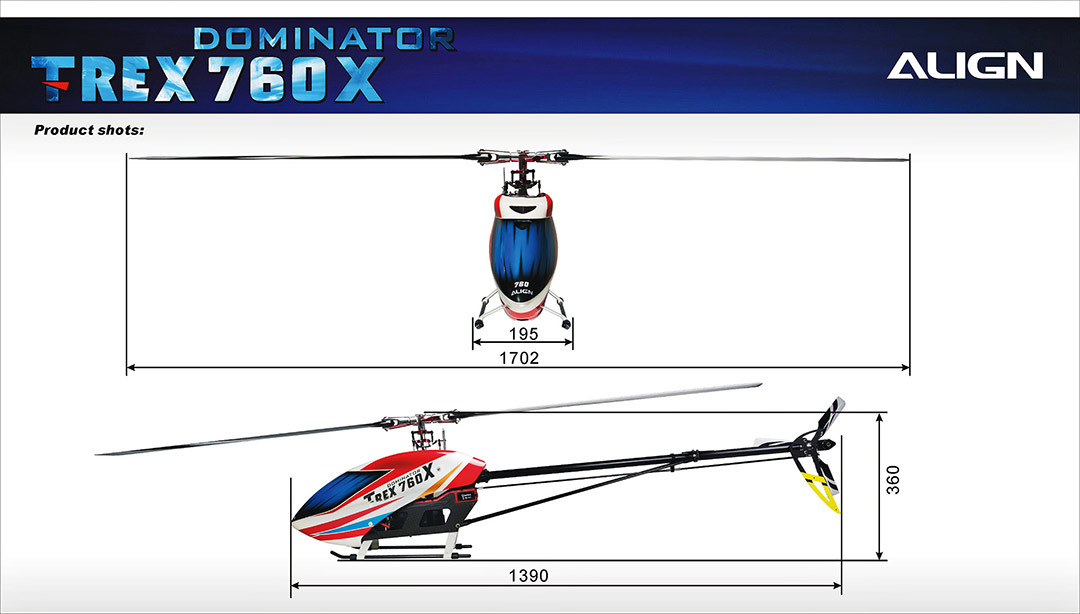

Specification

●Length: 1390mm
●Height: 360mm
●Width: 195mm
●Main Blade Length: 760mm
●Main Rotor Diameter: 1702mm
●Tail Rotor Diameter: 287mm
●Motor Drive Gear:12T
●Main Drive Gear:112T
●Autorotation Tail Drive Gear: 102T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 9.33:1:4.43
●Weight(w/o Battery): Approx. 3750g

Accessories

●T-REX 760X Kit Set x 1 set
●760 Carbon Fiber Blades x 1 set(2pcs)
●105mm Carbon Fiber Tail Blades x 1 set(3pcs)
●850MX Brushless Motor(490KV/4535) x 1


Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 4500 ~ 6000mAh x 2
●Digital Pitch Gauge
●CCPM Servo x 3
●Tail Servo x 1
●ESC x 1
●Flybarless System x 1



(200001453)

SKU 200001453
Brand Align
