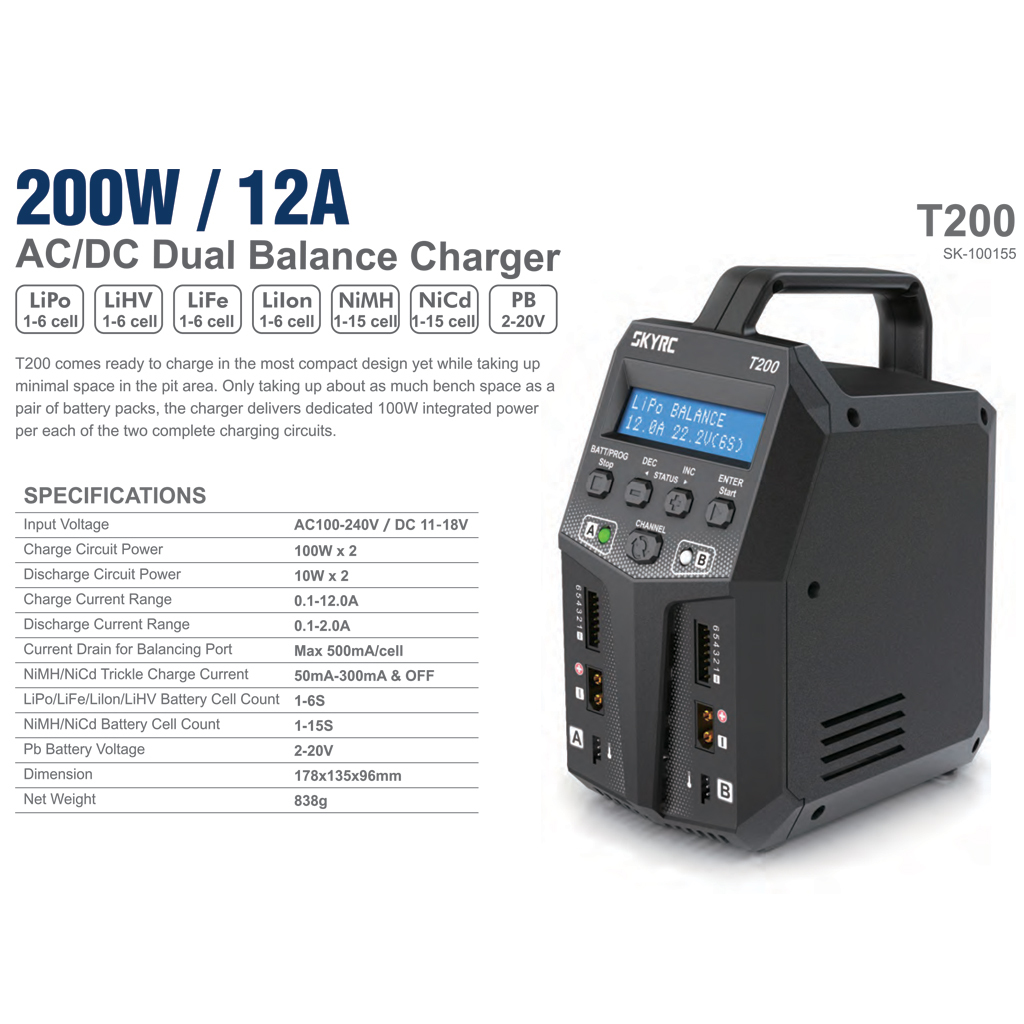

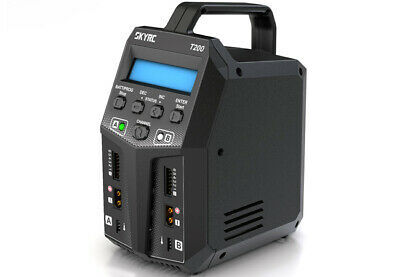

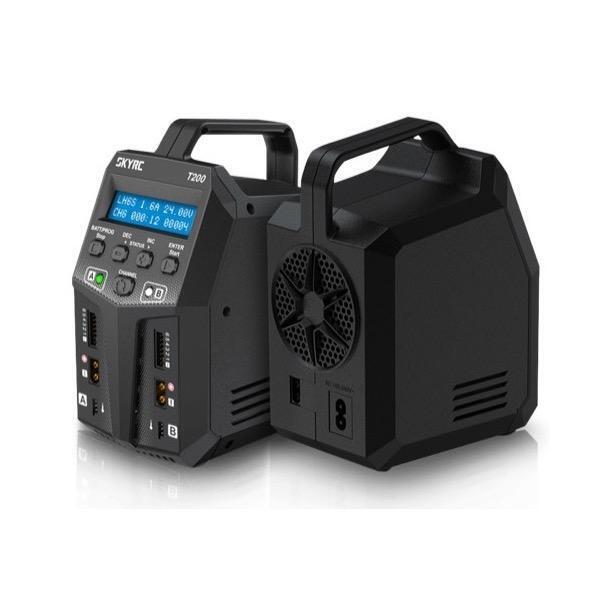

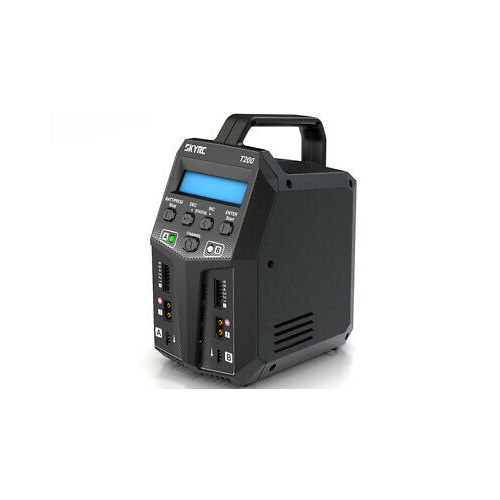

T200 comes ready to charge in the most compact design yet while taking up minimal space in the pit area.

Size and Weight
Case Material: Plastic
Case Size: 178x135x96mm
Weight: 850g

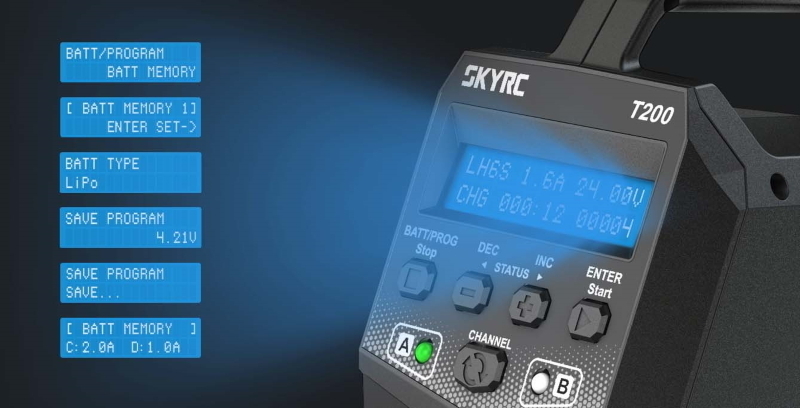

Display
Display Type: LCD
Display Backlight: Blue

Power
DC Input Voltage: 11-18V
AC Input Voltage : 100-240V

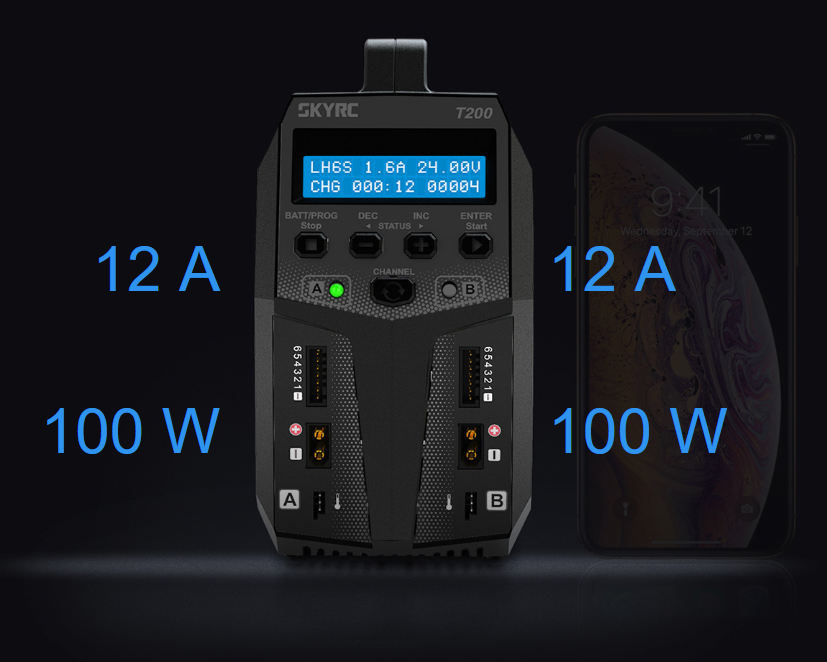

Charge Wattage: 100W X 2
Discharge Wattage: 10W

Battery
Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V

Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh
Charge and Discharge
Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
Pb: 1.8-2.0V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell

Discharge Cut-off Voltage
NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell

Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)
Reading Voltage Range: 0.1-26.1V/cell
Charge Current: 0.1A-12.0A

Discharge Current: 0.1A-2.0A
Balance Cells: 2-6 cells
Balance Current: 500mA/cell
Safety Timer: 1-120minutes off

Charge Method:

CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
Memory: 10 different charge/discharge profiles

These chargers donot come with any charge or balance boards, we recommend TRC-5006C or TRC-5010A multi-leads and TRC-1708-XH balance boards.

(600001538)

SKU 600001538
Brand SkyRC
