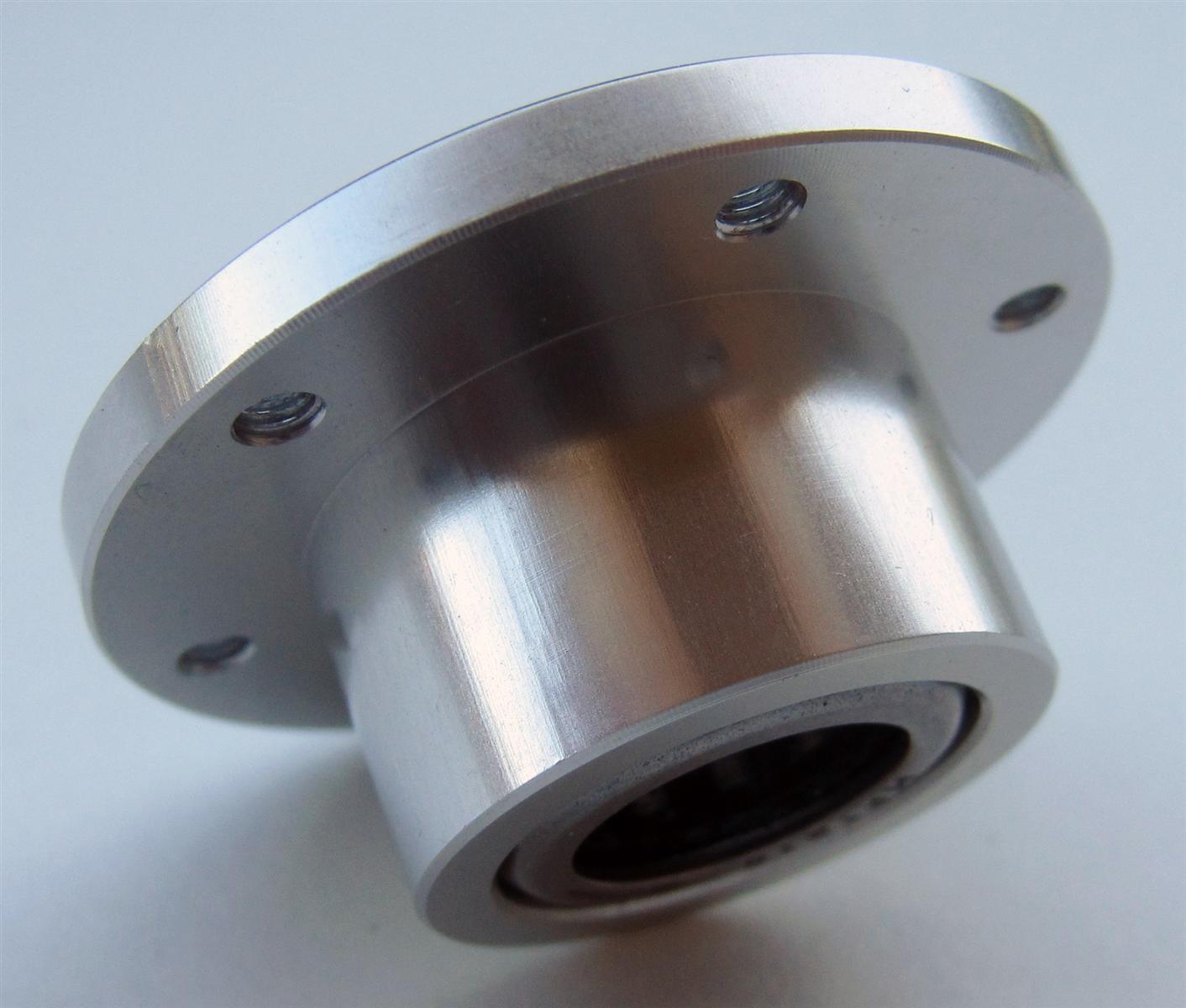

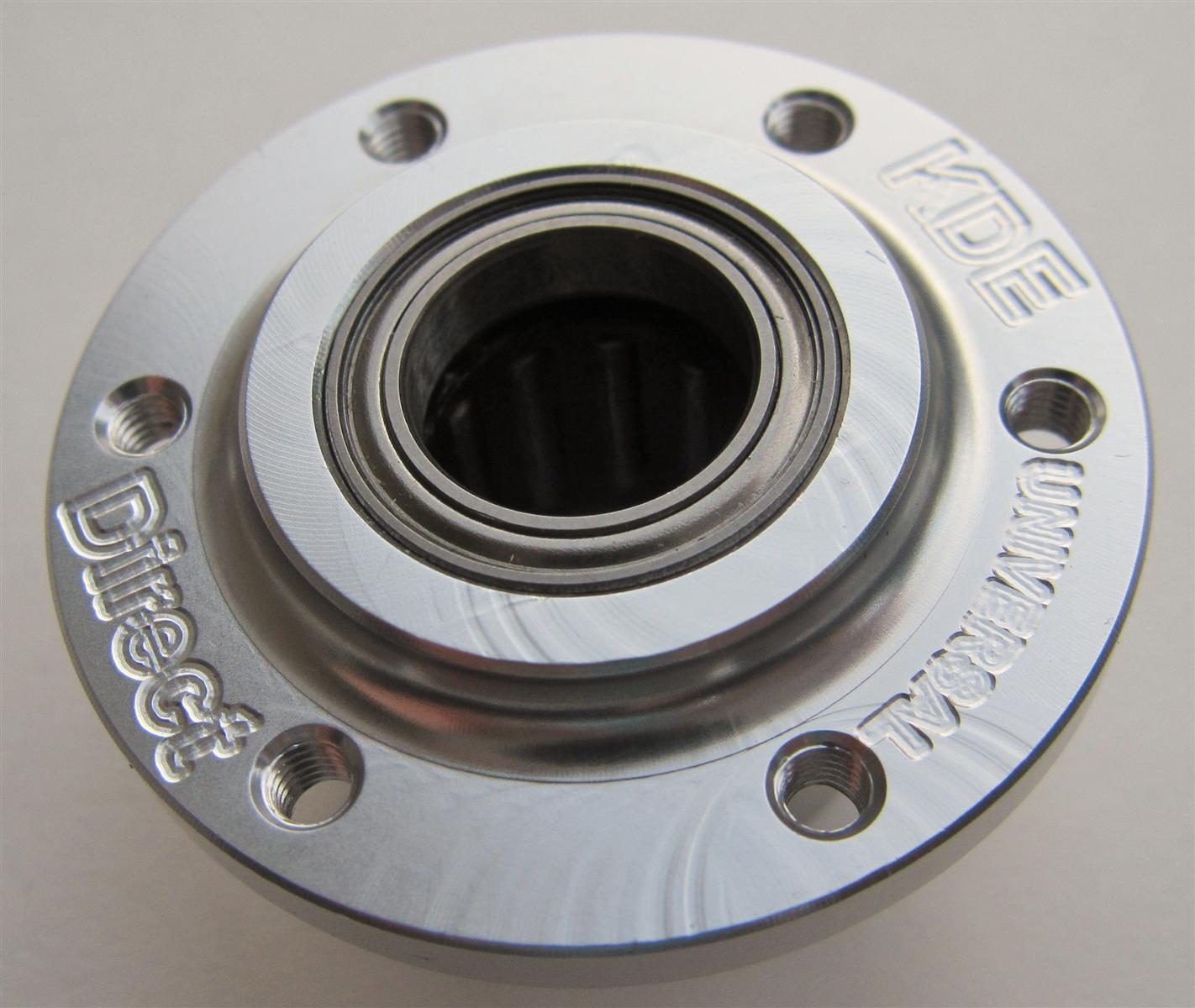

T700 UNIVERSAL MAIN GEAR CASE FOR ALIGN TREX 550/600 ELECTRIC SERIES HELICOPTERS



Note: the T700 Universal Main Gear Case for the ALIGN TREX 600E PRO series helicopter (also compatible with the TREX
550E and 600E/ESP series with components listed below) provides the most universal solution for gearing setups
throughout the helicopter series. No more self-tapping screws into plastic, the new upgrade provides a rigid, six-screw bolt
pattern for the gear to the Main Gear Case for unreal strength and simplified installation. This upgrade is a MUST HAVE for
high-power, high-voltage setups to prevent stripping of the main gear during flight and hard 3D maneuvers.

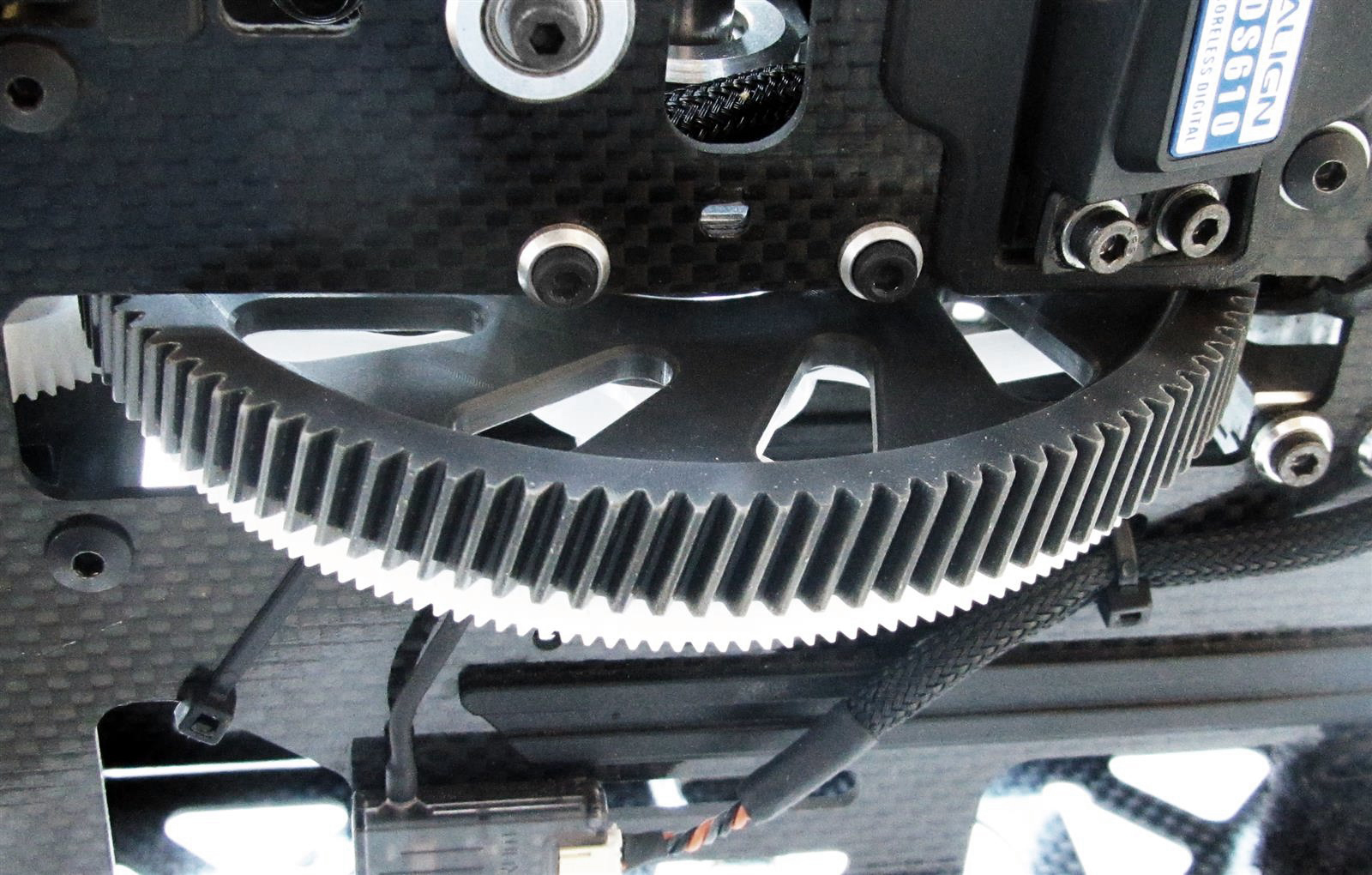

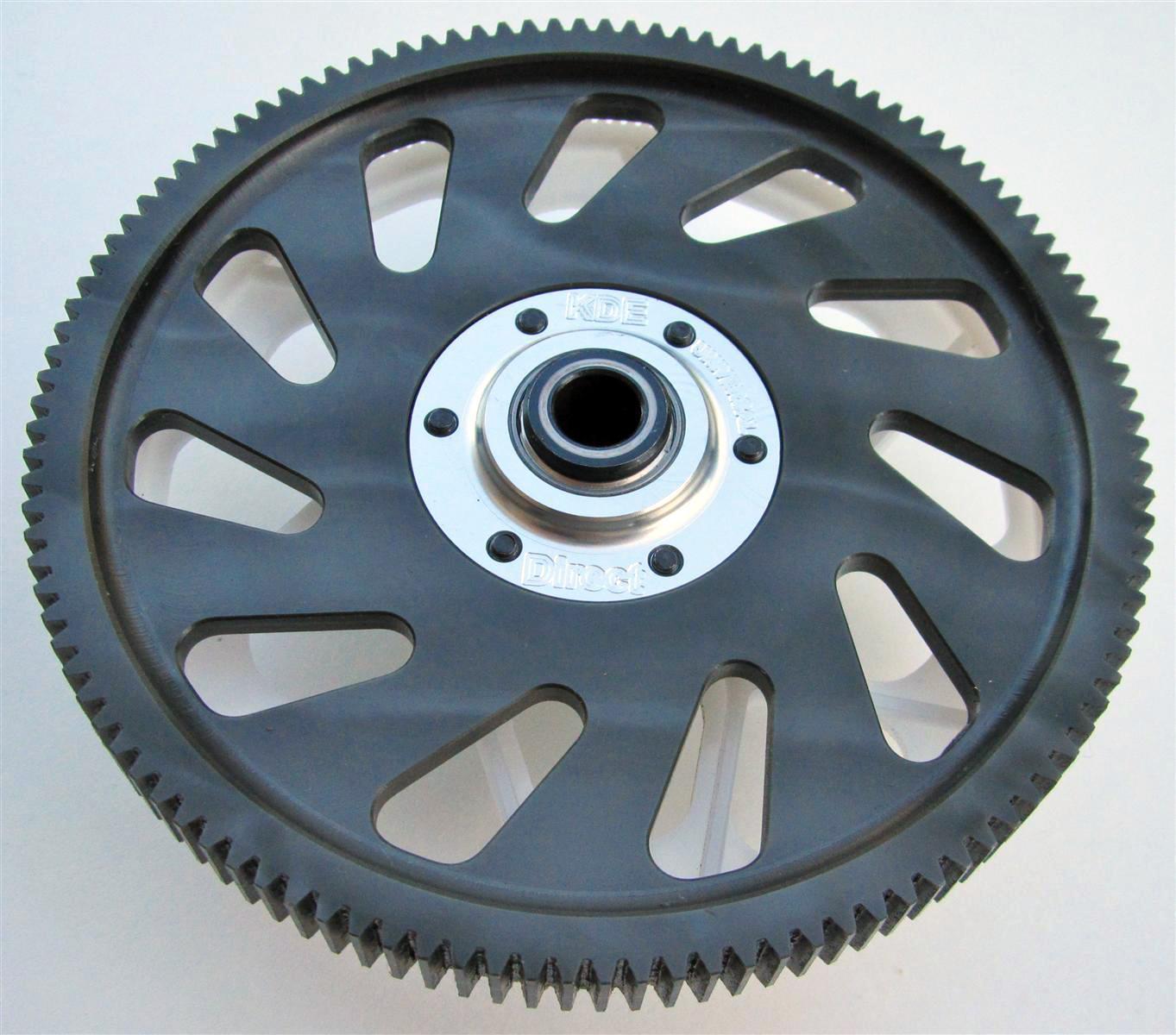

The T700 Universal Main Gear Case can be used in conjunction with the new KDE Direct TREX 550/600/700 Series Slant
Main Drive Gear, 112T, MOD1.0 or the KDE Direct TREX 550/600/700 Series Main Drive Gear, 115T, MOD1.0 (need to
purchase separately) for significantly increased strength advantages, reduced noise/wear, and alternate gearing ratios. In
addition, the new High-Performance One-Way Drawn Cup Clutch Bearing (HF1216) is also available for a strong, bind-free
transmission of the power to the main shaft if replacements are required.



Important: due to component compatibility
with various models and design variances
(TREX 550/600 series), please review the
Design Presentation and Installation.

Installation Instrutions: http://kdedirect.com/files/AT550-600-UMGC_Installation_Diagram3.PDF



Incudes:

- One (1) TREX 550/600 Series Aluminum T700 Universal Main Gear Case
- Six (6) M3 x 0.5 x 6 mm Button Head Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- One (1) High-Performance One-Way Drawn Cup Clutch Bearing, HF1216
- One (1) Radial Ball Bearing 12 x 18 x 4 mm



Finish:
Clear anodize, mirror-polish CNC gloss



Weight:
18 g (design is FEA optimized for maximum strength and minimum weight)



(400000945)

SKU 400000945
Brand KDE
