Product Specifications (Specifications subject to change)

TypeDetail
Scale 1/10
Construction type Assembly kit
Terrain use On-Road
Drive-train 4WD
Drive type Gearbox
Drive line Universal
Differential type Ball diff rear/gear diff front
Suspension Fully independent double wishbone
Steering mechanism Bell-crank
Shock damper Oil-filled damper
Shock damper material Plastic
Tire type Rubber
Tire tread Slick
Body material Polycarbonate
Chassis material FRP (Fiber Reinforced Plastic)
Electronic Speed Control (ESC) Not included
ESC model N/A
LED Light buckets Yes
LED lights Yes
Motor 540-brushed type
Bearings Shielded ball bearing
Adjustable camber Fixed
Adjustable toe angles Front only
Adjustable ground clearance Yes
Adjustable gear ratio Yes
Adjustable wheelbase Fixed
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 Length: 435mm, width: 202mm, height: 130mm.
Special feature 2 Separate light cases are also included.
Special feature 3 Comes with an LED light unit to light up headlights and taillights for the ultimate realistic appearance.
Special feature 4 Short (236mm) wheelbase and wide tread setup; similar to that so often employed by Porsche.
Special feature 5 This kit uses the FRP chassis set, which transforms the chassis into a double deck unit using rigid and lightweight FRP material parts.
Special feature 6 FRP front and rear damper stays ensure optimum performance from the CVA oil damper-fitted 4-wheel double wishbone suspension.
Special feature 7 The stainless steel propeller shaft is highly durable and offers efficient transmission of power.
Special feature 8 Comes with 2-piece wheels, tires and inner sponges. The rear of the model uses wide wheels.
Requires A 2-channel radio gear & electronic speed control
Requires B 7.2 battery & charger
Requires C Polycarbonate paint

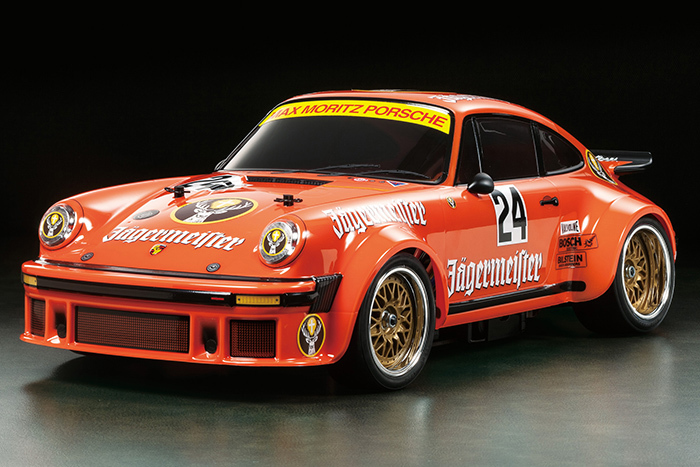

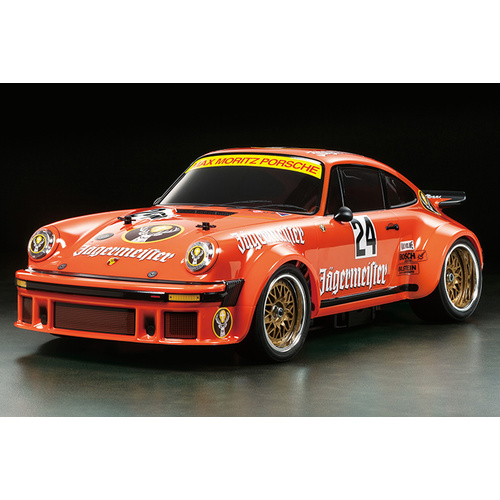

Tamiya Porsche 934 Jagemeister (KIT)

2016 marks the 40th anniversary of the release of the Vaillant-liveried Tamiya Porsche 934 (Item 58001). It was the first ever Tamiya R/C car model and one which would kick off a major worldwide trend that still continues to this day. This kit is part of the celebrations of that anniversary, and recreates the 934 in distinctive Jägermeister livery. This highly detailed body runs on the short wheelbase and wide stance TA02SW chassis. The kit includes a plethora of option parts to make this a very special release.

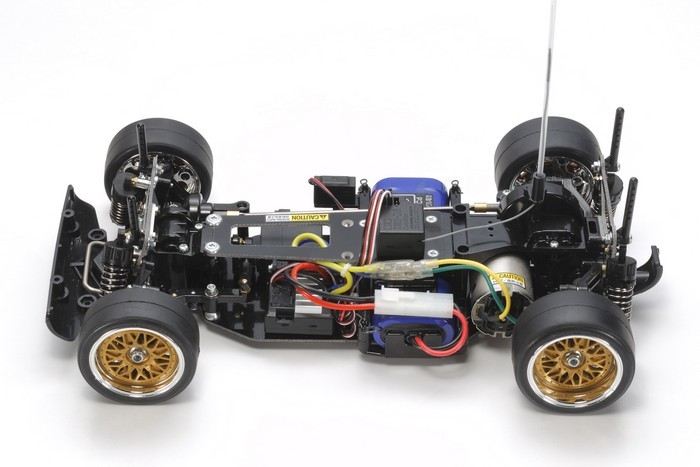

The TA-02SW exhibits a short-wheelbase and has a wide track to accommodate the scale form of the real sports car. It normally features a tub chassis with 4-wheel, fully independent suspension coupled with a rear ball differential and a front gear type differential. This special edition is fitted with a double deck FRP chassis for increased rigidity.



Porsche 934 HISTORY



The Porsche 934 was introduced for the 1976 racing season for the European GT Championship and U.S. Trans Am racing series. It was manufactured for two years, 1976 and 1977, with at least 400 being manufactured to meet homologation regulations of Group 4 GT class cars.

The Turbo RSR Type 934s as well as the 935 were raced in the Deutsche Rennsport Meisterschaft, the predecessor racing series to DTM, in a distinctive vivid orange "Jägermeister" livery, which was field by the Max Moritz Team.

The 934 was based upon the 930 Turbo. Fitted with a large turbocharger, a water-cooled intercooler, and K-Jetronic mechanical fuel injection system, the flat-6 engine was under the horizontally-positioned cooling fan in the same way as seen in the 917 and 908, for optimum cooling effect. Thanks to such modifications, the engine's power was boosted from 260hp to 485hp and at the same time its torque was nearly doubled from 35kgm to 62kgm. The car also featured independent torsion bar suspension with resin bushings and coil springs, adjustable front and rear stabilizer rods, and ventilated disc brakes with aluminum calipers. The sleek body featured flared fenders and a large front spoiler with air intakes for the oil cooler in the center, intercooler radiators on the left and right, and rounded brake cooling air intakes.

















































Option Parts Included:

  • Item 53142 Aluminum Motor Mount
  • Item 53166 FRP Chassis Set
  • Item 53194 FRP Rear Damper Stay
  • Item 54608 CC-01 Assembly Universal Shafts
  • Item 53152 Hard Propeller Shaft
  • Item53193 FRP Front Damper Stay
  • Item 53806 Ball Diff Cup Joint for Universal Shaft

Required to Complete:

2ch Radio sys.

ESC (Electronic Speed Controller)

Steering Servo

Charger

Battery Pack

PS Spray

8 x AA batteries

Tools



(900001366)
