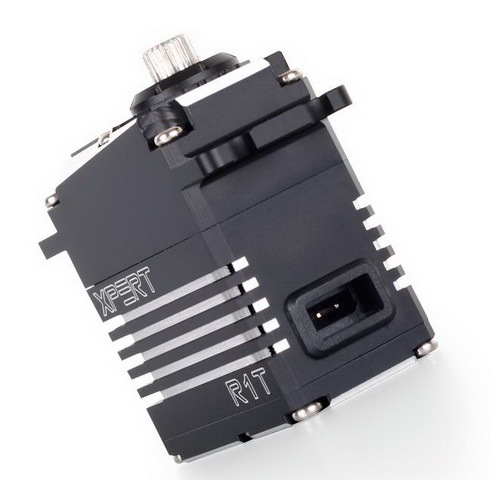

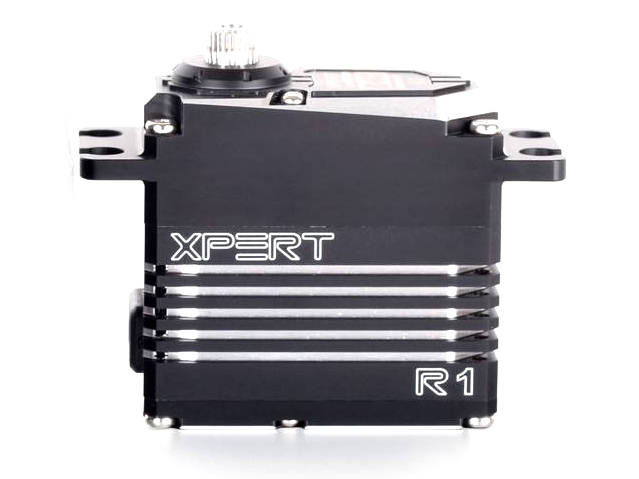

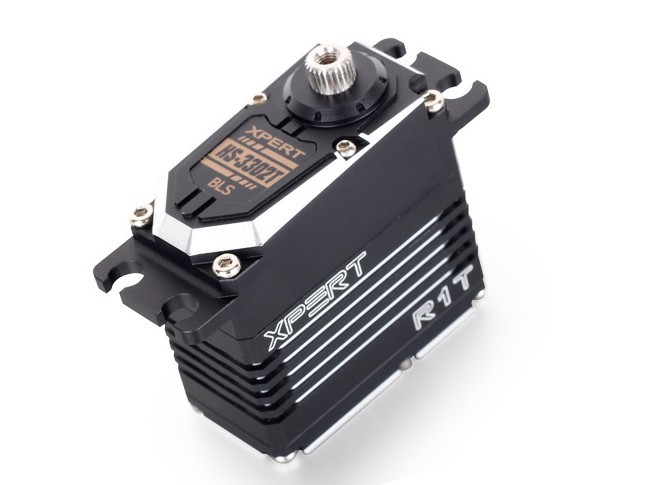

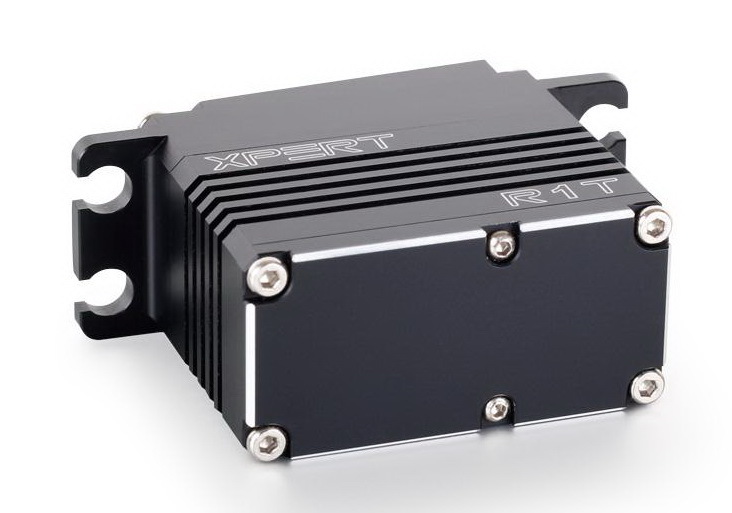

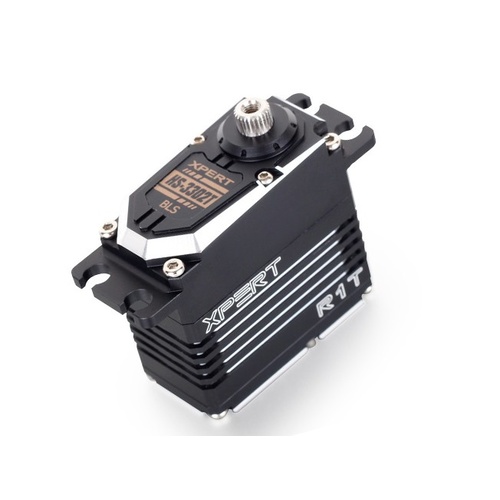

XPERT R1 Standard Tail Servo



This is the Xpert RC R1T HS-3302T-HV High Voltage (6.0V~8.4V), Standard Size, All Aluminum, One Piece Finish, High Strength Metal Gear, Quick Release Cable, 760us Narrow band Digital Servo.

Features

  • Quick release cable that allows easy and quick installation for all helicopters.
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant
  • 760us narrow band
  • Operating frequency up to 800Hz

Specifications

  • Dimensions: 40x37.80x20 mm
  • Weight: 72 g

Speed:

  • 6.0V: .056 sec/60
  • 7.4V: .045 sec/60
  • 8.4V: .040 sec/60

Torque:

  • 6.0V: 12.00 kg-cm (166.56 oz-in)
  • 7.4V: 14.80 kg-cm (205.43 oz-in)
  • 8.4V: 16.80 kg-cm (233.18 oz-in)



(300001258)

SKU 300001258
Brand Xpert Servos
