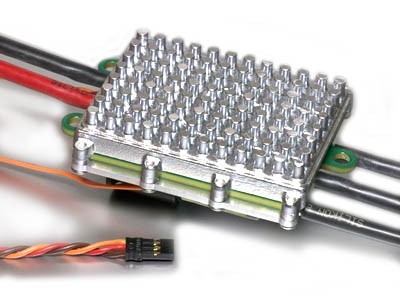

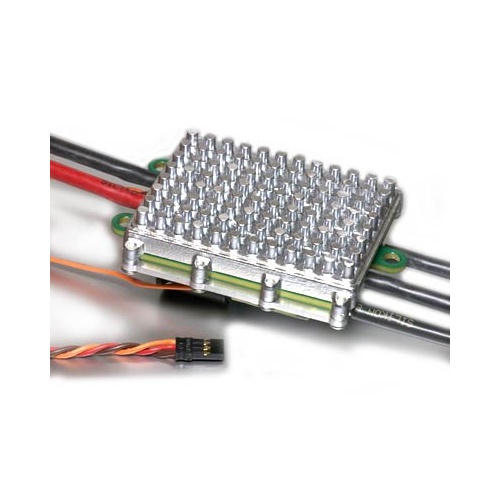

YGE Brushless-Controller YGE 120 HV V4 (Opto) with Heatsink



Comes with heat sink pre-installed for better cooling solution.

- Max duration at 120A, good cooling 5 sec 150A.
- 4 to 14s LiPo, at low voltage.
- 5 to 15s LiFePO4, with under-voltage.
- 12-42 NiMh cells, with under-voltage.
Undervoltage detection can be switched off.
Optocouplers.
- Speed regulation (governor mode).
- Soft start can be individually adjusted.
- Active free-running, thus part load indefinitely.
- Automatic timing, or adjustable in 6 steps.
- Infinitely adjustable F3A brake
- Normal EMK brake adjustable in 3 steps.
- Clock frequency: 8 to 16 kHz
- Speed limit: 240,000 RPM (2-pole)
- Over temperature / over-load warning
- Integrated anti-lightning- Dimensions: 69x62x33 mm
- Weight: 148g without - and 184g with cable 6/4 mm ²
- Programming with the ProgCard II

YGE Specials :

- The new version (V4) has an integrated anti-spark relay. The setup can now be read in spite of the optocoupler ProgCard II

- V-bar Gov Compatible





(400000620)

SKU 400000620
Brand YGE
