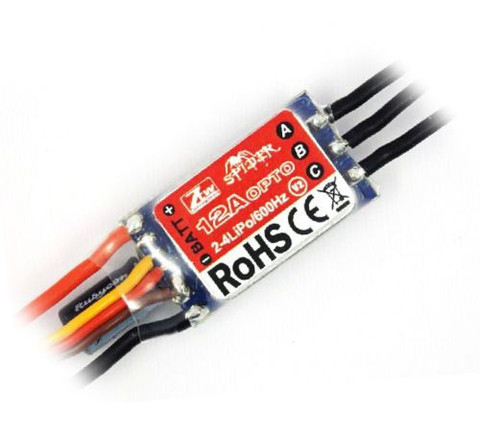

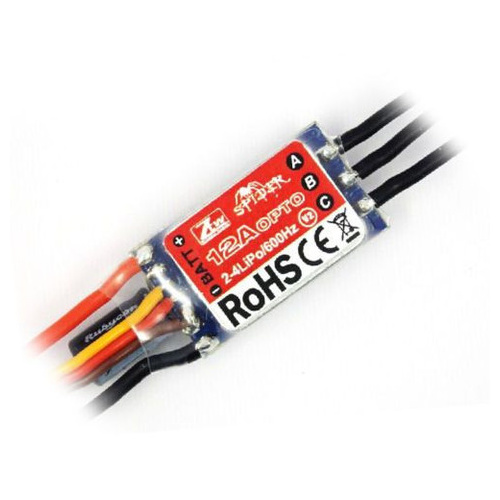

ZTW Spider series 12A 2-4S ESC - BLHeli Firmware



As of 21/7/15 the ZTW 12A ESC are now all pre flashed with BLHeli 13.1 and can be programmed using the Afro USB linker via the servo cable.

Download BLHeli software to program/update/adjust settings on the ESC.

Note:

1. These do not have a BEC - you will need to power your Flight controller and Receiver separately with a BEC.

2. Be sure to check configuration requirements of your setup, incorrect settings can damage ESC's and Motors, this is not covered under warranty

ZTW Spider OPTO ESC are quality speed controllers and designed for simple installation and easy setup these ESCs have proven to offer excellent performance in Multi-rotor applications. If your starting out in Multi-rotors and need an easy to install solution that is tested and proven to work with Multi-rotor craft then these speed controllers have you covered.

These ESC's features a very smooth yet linear throttle response, without sacrificing a rapid, crisp, response to any throttle input. Super fast Refresh Rate up to 600Hz make these a very smooth controller.

The perfect combination with the Naza flight controller, or simply add a BEC (battery eliminator circuit) if you want to use it with KK2, Naze or APM.

 Features:

Extremely low internal resistance

Super smooth and accurate throttle linearity

Safety thermal over-load protection

Auto throttle shut down in signal loss situation

Supports high RPM motors

Power arming protection (prevents the motor from accidentally running when switched ON)

Uses a new generation of the MOSFETs to make sure the ESC runs cooler and with better reliability

Specifications:

Continuous Output: 12A

Burst Output:l 20A

Max Power 290W

Battery: 2s - 4s Lipo

Size: L26mm W15mm H6mm

Weight: 8g

(400001150)

SKU 400001150
