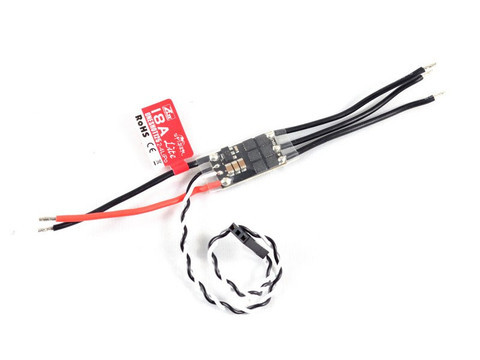

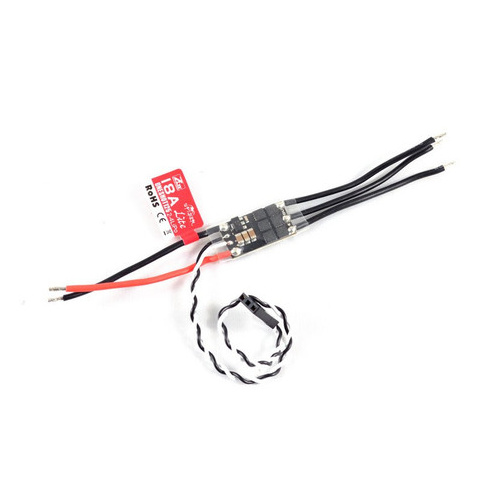

ZTW Spider Series 18A Opto Lite

1/10/15 - Pre Flashed with BLHeli 14.0

Features SK bootloader making them easily programmable using the Afro USB linker via the servo cable.

Download BLHeli software to program/update/adjust settings on the ESC.

Sold with ESC connection wires, motor wires & servo cable (ground and signal) for easy installation

Note:

1. These do not have a BEC - you will need to power your Flight controller and Receiver separately with a BEC.

2. Be sure to check configuration requirements of your setup, incorrect settings can damage ESC's and Motors, this is not covered under warranty

ZTW Spider Series ESCs are one of the most popular multi-rotor ESCs on the market today

They are high quality speed controllers designed for simple installation and easy setup in your multi-rotor aircraft. Pre-flashed from the factory with your choice of firmware, Spider Series ESCs can support super fast refresh rates up to 600Hz for an incredibly crisp flight controller response. They also feature a smooth and linear throttle range without sacrificing a rapid response to throttle input.

As usual, Spider Series ESCs come standard with the quality, performance, and reliability you have come to trust from ZTW.

Features:

  • Extremely low internal resistance
  • Super smooth and accurate throttle linearity
  • Safety thermal over-load protection
  • Auto throttle shut down in signal lost situation
  • Supports high RPM motors
  • Power arming protection (prevents the motor from accidentally running when switched ON)
  • Built with the latest generation of MOSFETs to make sure the ESC runs with less heat and more reliability
Specifications:
  • Output: 18A continuous, 30A burst
  • Input Voltage: 2-4s lipo
  • BEC Output: OPTO (NO BEC)
  • Dimensions: 22 x 12 x 4.3 mm
  • Weight: 5.3g

(400001181)

SKU 400001181
